Home > Agilent > E3610A

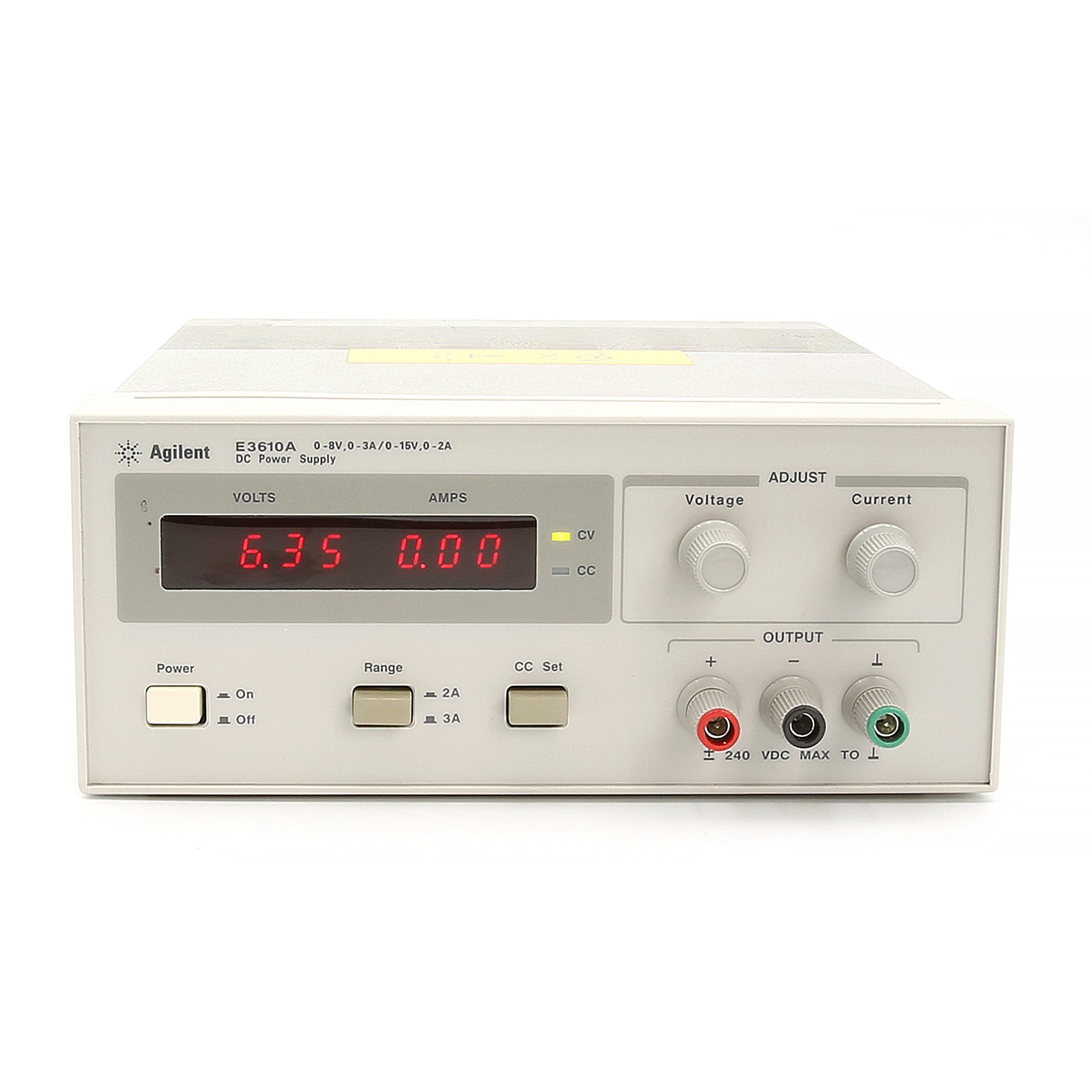

Agilent E3610A DC Power Supply, Dual Range, 0 to 8 Vdc @ 0 to 3 A, or 0 to 15 Vdc @ 0 to 2 A, 30 W

Refurbished
Manufacturers Part #: E3610A
DC Power Supply, Dual Range, 0-8 Vdc @ 0-3 A or 0-15 Vdc @ 0-2 A, 30 W
Your Price: $249.00
In Stock Ships in 1 to 2 Business Days
  • Description
  • Datasheets
Agilent E3610A DC Power Supply, Dual Range, 0 to 8 Vdc @ 0 to 3 A, or 0 to 15 Vdc @ 0 to 2 A, 30 W

The Agilent E3610A 30W single-output power supply features separate digital-panel meters for monitoring voltage and current simultaneously, giving you precise reading and control capability. The E3610A also features 10-turn potentiometers for accurate adjustment of voltage and current output settings.

Affordable, full-featured benchtop power supplies provide excellent performance and flexibility.


Features:
  • Voltage output: 0 to 8 Vdc @ 0-3 A; or 0 to 15 Vdc @ 0-2 A
  • Load & line regulation: <0.01% + 2 mV
  • Ripple & noise (v/i): <200 µVrms, <2 mVpp / <200 µArms, 1 mApp
  • 30W Single output, Dual range
  • Constant voltage (CV) and Constant Current (CC) modes
  • Digital voltage and current meters
  • Low noise and excellent regulation
  • 10 turn voltage and current adjust potentiometers
  • 104 to 127 Vac; 47-63 Hz operation
  • Weight: 8.4 lb; Size: 91 mm (3.6 in)H x 213 mm (8.4 in)W x 319 mm (12.6 in)D
