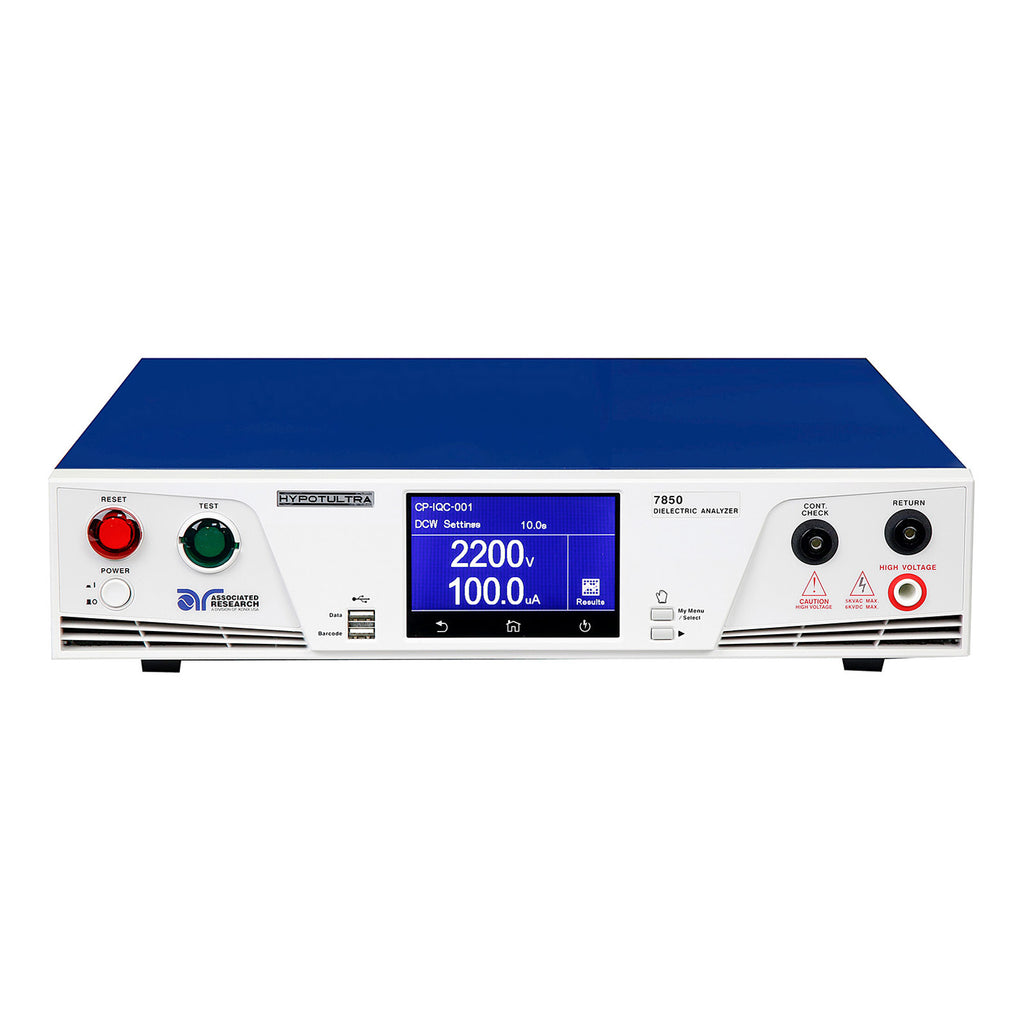

Associated Research 7850 Electrical Safety Tester, 5 kVac, 6 kVdc

Associated Research MPN: HypotULTRA 7850

Sale price$3,895.00 USD
Available - Please contact our office at 1-800-366-5240 for update.


Associated Research 7850 Electrical Safety Tester, 5 kVac, 6 kVdc

The Associated Research 7850 HypotULTRA Electrical Safety Tester is part of the premier line of Dielectric Withstand Testers for Laboratory and Production Line settings. HypotUTLRA improves traceability with on-board data storage and allows you to automate your Electrical Safety Testing with a variety of communication interfaces. Increase efficiency with our direct barcode scanner connection and intuitive touch screen interface. Models 7804 and 7854 are a 4-in-1 solution with the addition of 40 Amp AC Ground Bond test capability added to HypotULTRA's already impressive feature list. The 7850 model has AC Hipot, DC Hipot, Ground Continuity, and Insulation Resistance capability. Keep operators safe with SmartGFI®, Safety Interlock, and Personal Protective Equipment (PPE) compatible accessories. HypotULTRA is a Dielectric Withstand Tester designed to take your production line to the next level.


  • 4 instruments in one - AC/DC hipot tester, Insulation Resistance, Ground Continuity Testing
  • 5 kV @ 30 mA AC
  • 6 kV @ 10 mA DC
  • USB and RS-232 Interfaces
  • 115/230 Vac ±15%, 47 to 63 Hz operation
  • Weight: 35 lb; Size: 3.5 in H x 16.92 in W x 15.75 in D

Please see Datasheet for complete details and specifications.
