Description

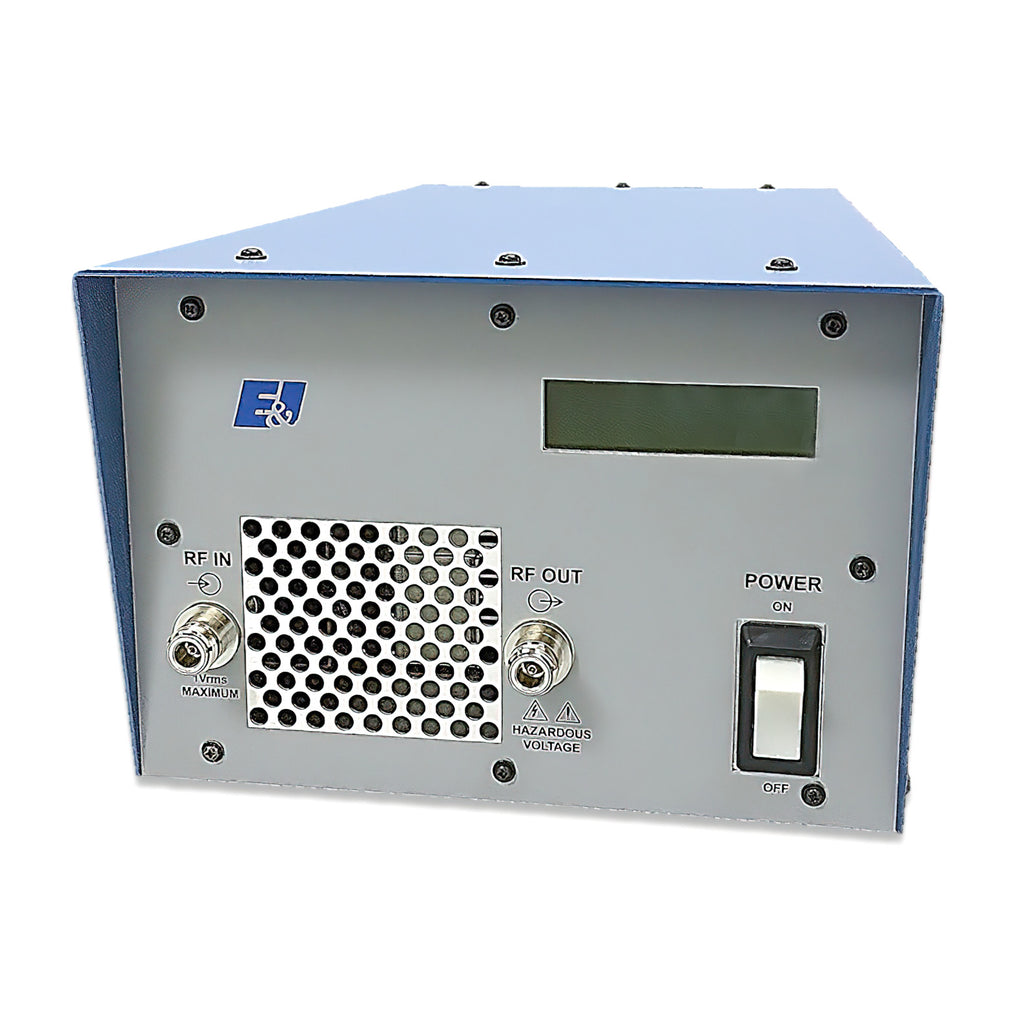

Electronics & Innovation 325LA Linear RF Amplifier, 250 kHz to 150 MHz, Class A, 25 W, Refurbished
The E&I 325LA Amplifier is a rugged source of RF power, useful for RFI/EMI, HF and VHF transmitters, plasma equipment, nuclear accelerators and general laboratory applications. The 325LA represents E&I's commitment to providing RF power amplifiers of the highest quality, durability and ruggedness.
The E&I 325LA produces 25 Watts of class A linear power output over the entire frequency range from 250 kHz to 150 MHz. It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 50 dB with a typical gain flatness of ±1.5 dB.
The 325LA is compatible with most signal generators, frequency synthesizers, sweep generators and other laboratory signal sources. It accurately reproduces all waveforms within its power and frequency ranges: AM. FM, SSB, pulsed and other complex modulation schemes.
The 325LA is built to withstand a 13 dBm input (1.0 Volt RMS) for any VSWR load condition. The internal switched mode power supply is very conservatively rated, in order to facilitate operation over a large range of line conditions and temperatures. The forced air cooling provides for low internal temperatures, providing long term reliability. The RF power is delivered by rugged DMoS FETs, de-rated to provide for excellent MTBF figures.
Features:
- Class of Operation: Class A
- Frequency Range: 250 kHz to 150 MHz
- Rated Power Output: 25 W
- Power Gain: 47 dB
- Gain Flatness: ±1.5 dB
- Input Power for Rated Output: 1.0 mW / 0 dBm
- Input Impedance: 50 Ohms
- Output Impedance: 50 Ohms
- Harmonic Level: <-25 dBc
- Size (H x W x D): 5.3" x 16.5" x 18.4" (134.5 mm x 420 mm x 467 mm)
- Weight: 35 lbs (16 kg)
- 100 - 240 Vac; 47-63 Hz
Please see Datasheet for complete details and specifications.
