Description

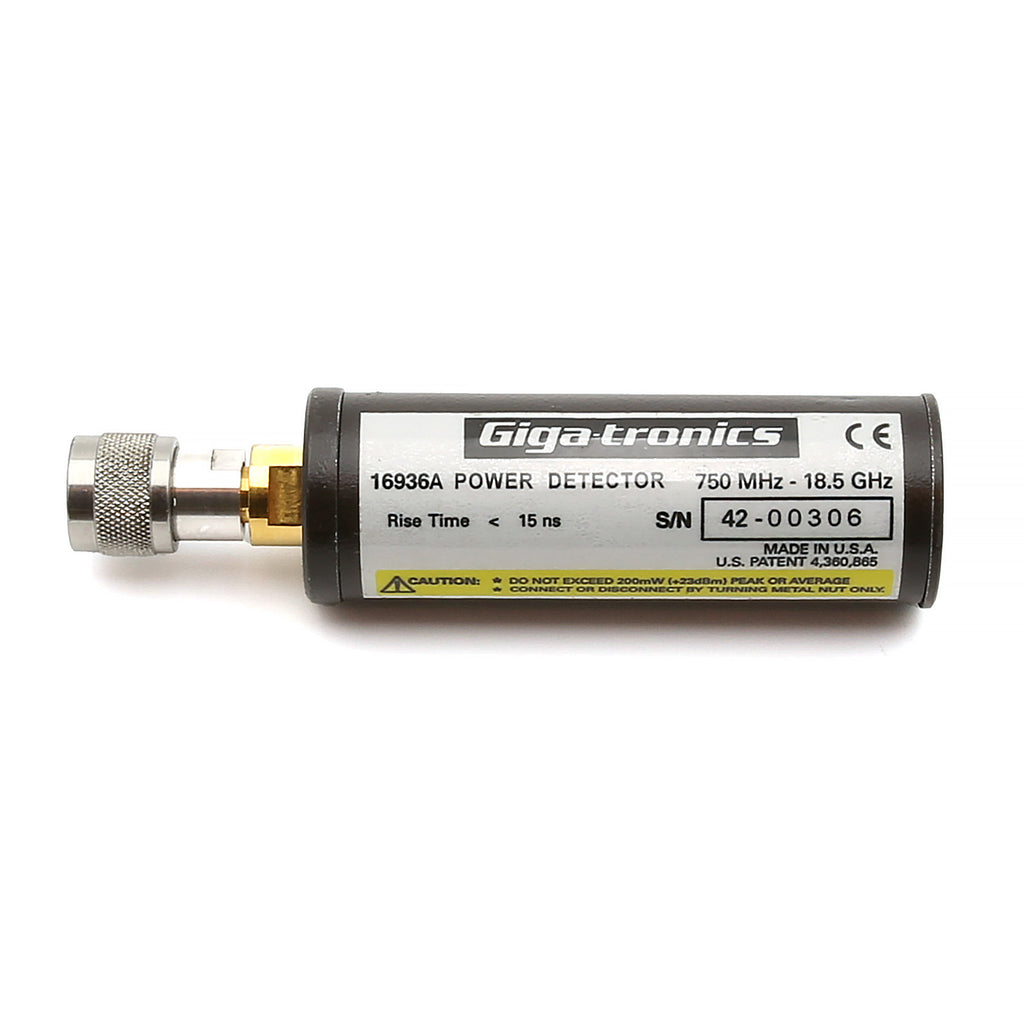

Giga-tronics / Wavetek 16936A Power Sensor, 750 MHz to 18.5 GHz, <15 ns Rise Time
The 16936A power sensor is designed for use with the 8501, 8501A, 8502, or 8502A power meters. The 16936A provides both pulse and cw measurements.
Features:
- Frequency Range: 750 MHz to 18.5 GHz
- Peak Measurement range: -20 dBm to +20 dBm
- CW Measurement range: -40 dBm to +20 dBm
- <15 ns rise time
- 50 ohm input impedance
- N (m) connector
- Shipping Weight: 2 lb
Please see Datasheet for complete details and specifications.
Datasheets
