Description

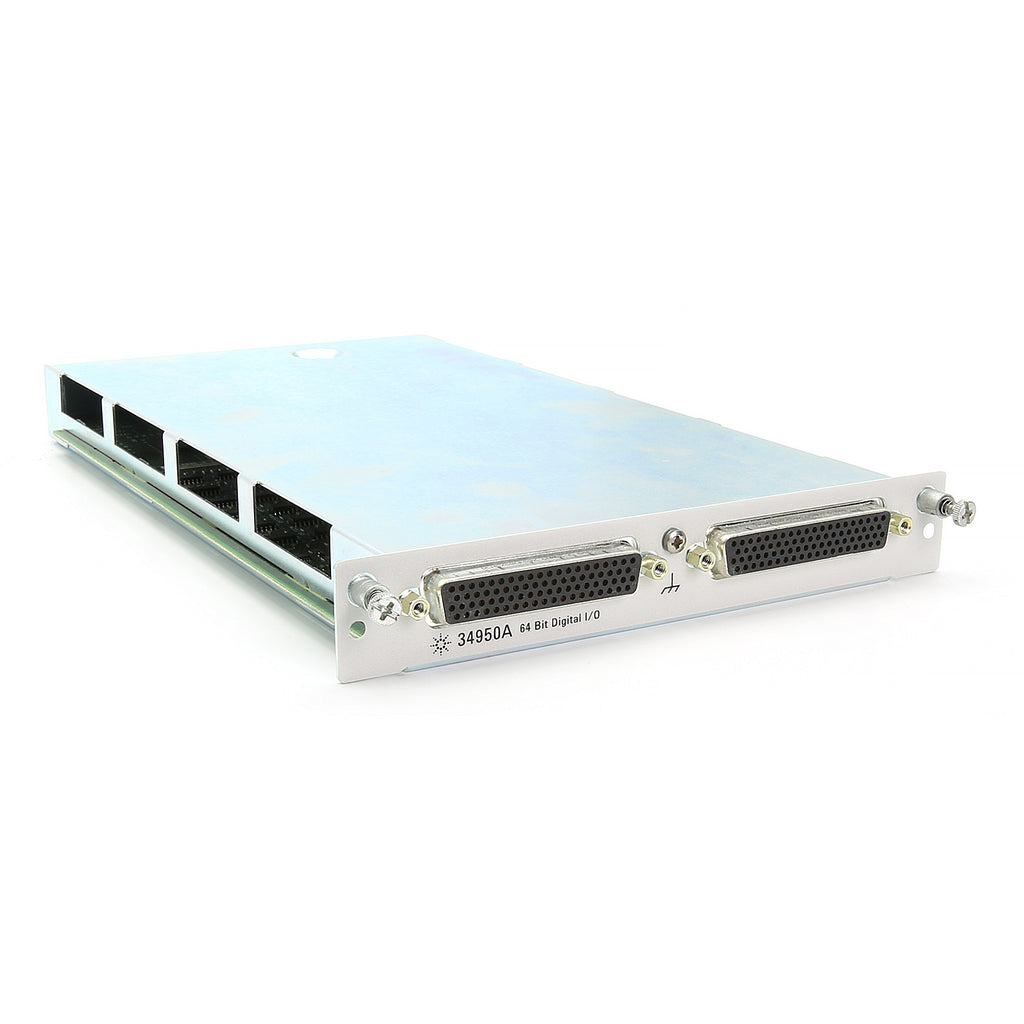

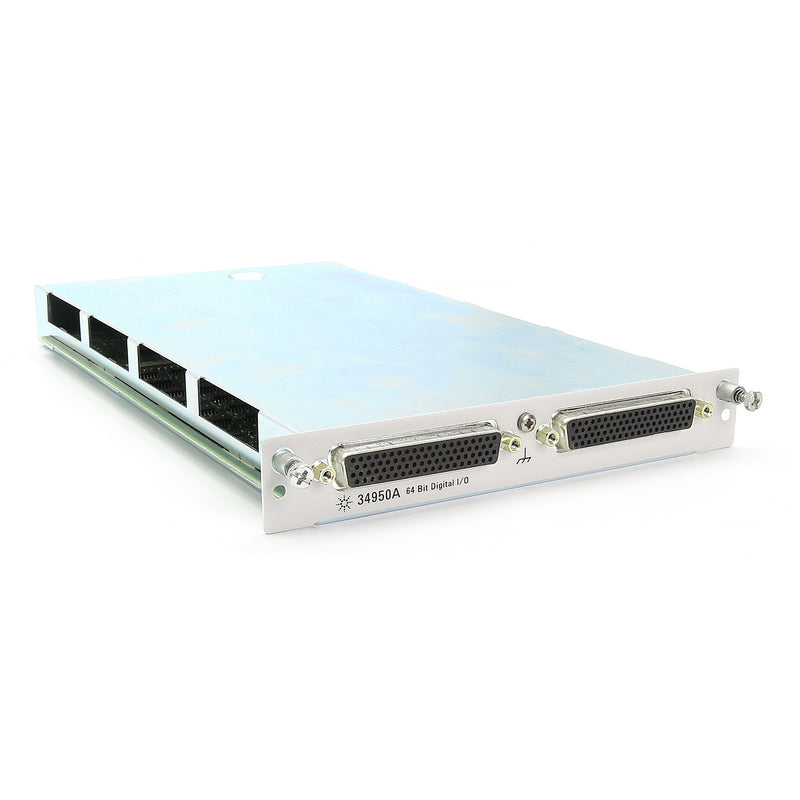

Keysight / Agilent 34950A module for the 34980A Multifunction Switch/Measure Unit has 64 bi-directional lines configured as eight 8-bit channels. Each 8-bit channel has programmable polarity and thresholds up to 5 V. The memory is useful for simulating and capturing digital patterns up to 10 MHz. It provides configurable handshaking protocols for a wide variety of applications.
In addition, the two counter/totalizer channels can be used to count events, frequency, period, duty cycle, totalize, and pulse width.
Standard 78-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.
The 34950T is a terminal block for the 34950A and L4450A 64-bit digital I/O. This terminal block is used for discrete wiring. It supports up to 20 AWG wire size typical for <100 connections or 24 AWG for >100 connections. The 34950T is a detachable terminal block with screw-type connections that provides a flexible method for connecting external wiring.
Features:
- 64 bidirectional digital I/O bits with programmable polarity
- Variable thresholds from 0 V to 5 V
- Handshaking protocols
- Source/sink current up to 24 mA
- Pattern memory
- Two 10 MHz counter/totalizer channels
- 20 MHz divide-by-n clock
- Optional Accessories: 34950T Terminal Block
Please see Datasheet for complete details and specifications.
