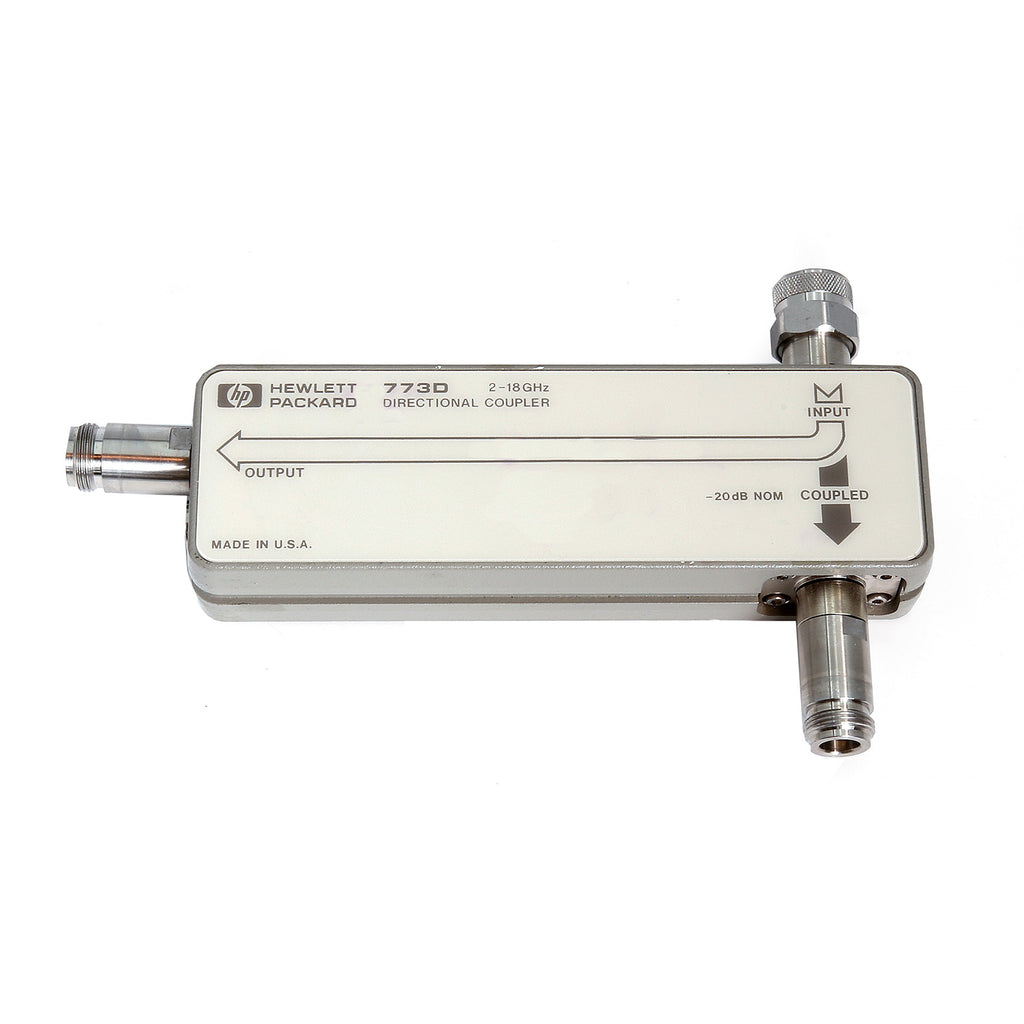

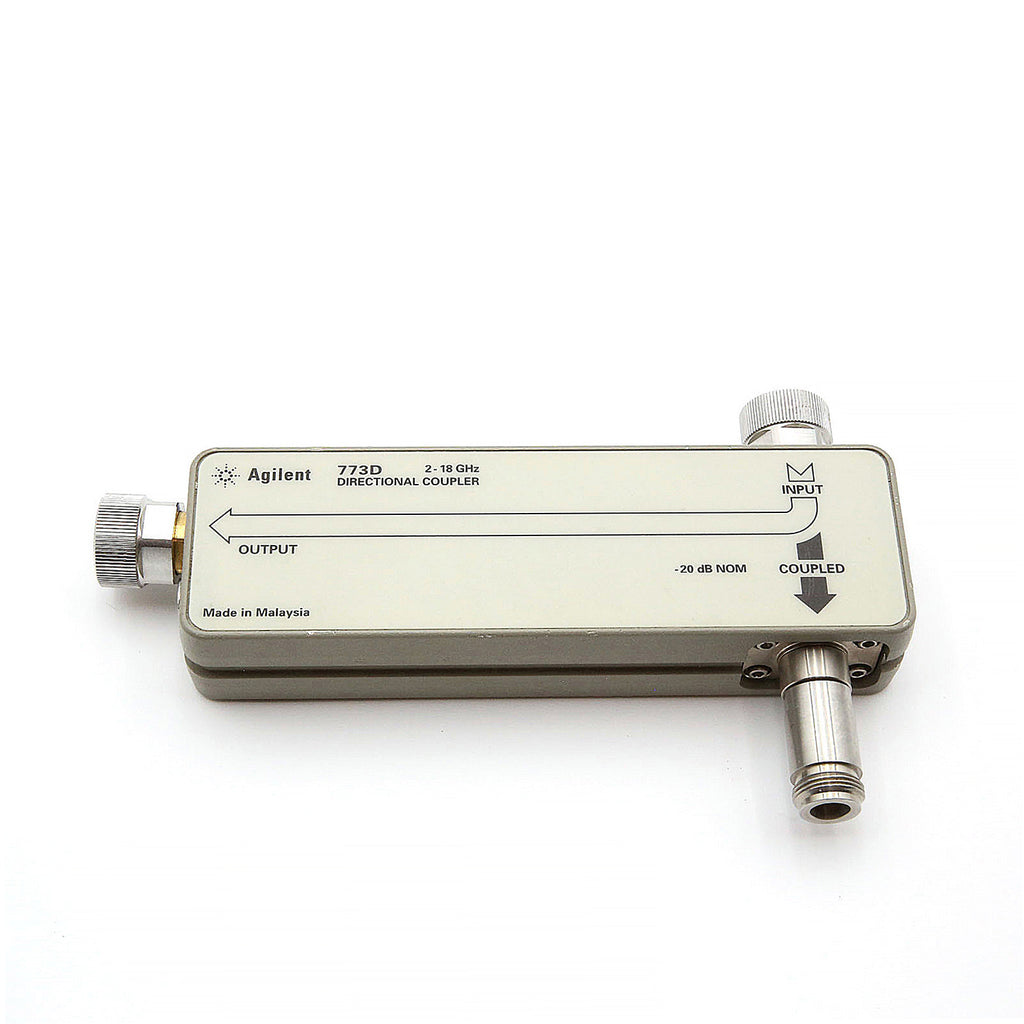

Keysight / Agilent 773D Coaxial Directional Coupler, 2 GHz to 18 GHz, 20 dB

Keysight / Agilent 773D Coaxial Directional Coupler, 2 GHz to 18 GHz, 20 dB

The Agilent 773D is a high-performance directional coupler designed for broadband swept measurements in the 2 to 18 GHz range. This coupler is ideal for leveling broadband sources when used with a detector. The broadband design allows the use of a single test setup and calibration for tests spanning the entire 2 to 18 GHz range.

Standard Connectors = APC-7 connectors: input, output, Type-N (f) coupled
Option 002 Connectors = Type-N connectors: (m) input, (f) output, (f) coupled

Features:

• Nominal coupling: 20 dB
• Maximum coupling variation: ±1.0 dB
• Directivity: 30 dB to 12.4 GHz, 27 dB to 18 GHz

Please see Datasheet for complete details and specifications.
