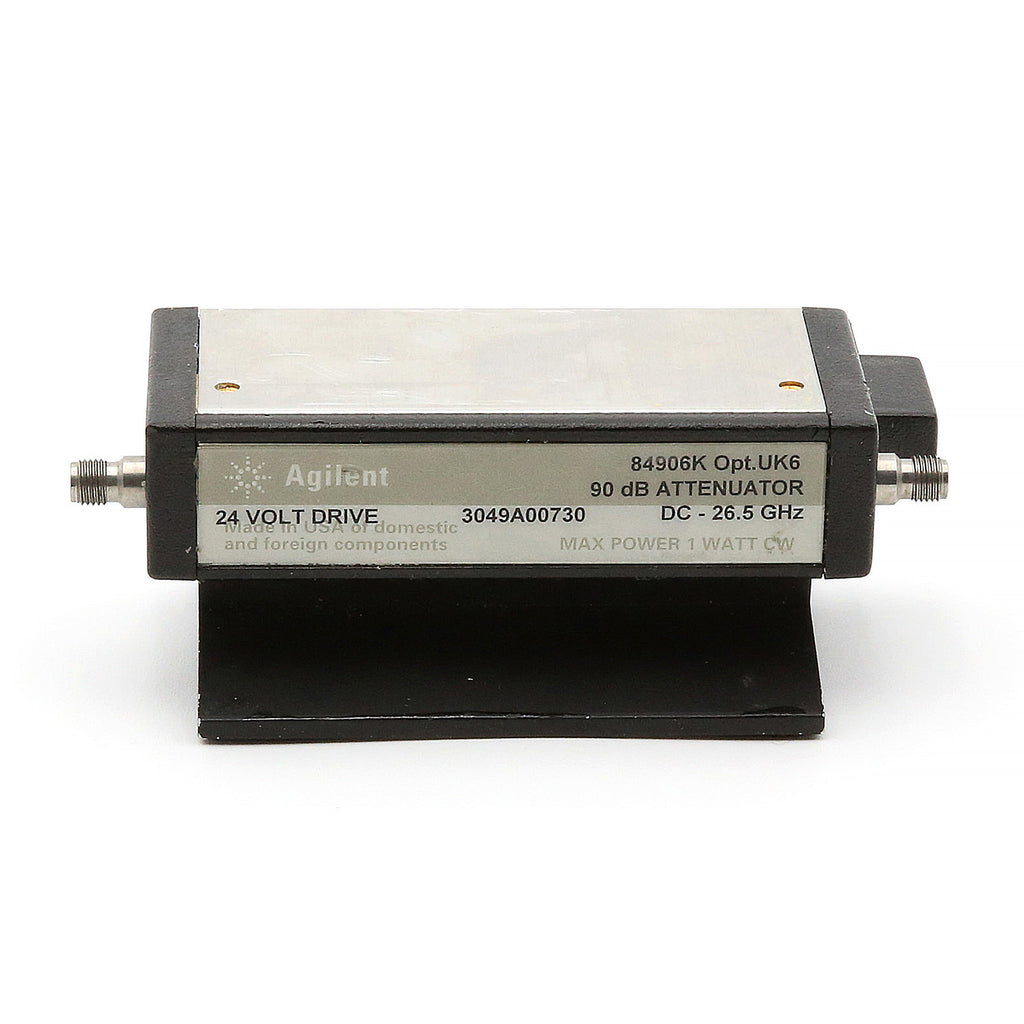

Keysight / Agilent 84906K Programmable Step Attenuator, DC to 26.5 GHz, 0 to 90 dB, 10 dB Step

Keysight / Agilent MPN: 84906K
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$995.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Keysight / Agilent 84906K Programmable Step Attenuator, DC to 26.5 GHz, 0 to 90 dB, 10 dB Step

The Agilent 84906K programmable step attenuator offers coaxial measurements to 26.5 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, excellent life (greater than 5 million switching cycles per section) and an attenuation range of 0 to 90 dB in 10-dB steps. This latest design evolution sets new standards for size and performance. High attenuation accuracy and low SWR are achieved through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of sapphire substrate. Insertion loss is outstanding, with less than 2 dB of loss at 26.5 GHz. The compact size of the unit, 35 percent smaller than the Agilent 8495/7 (26.5 GHz) family, allows for easy integration into instruments and ATE systems.

Features:

  • Frequency Range: dc to 26.5 GHz
  • Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
  • Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 26.5 GHz
  • Repeatability life: 0.03 dB max 5 million cycles per section, typical
  • 5 million cycles per section

Power Handling

  • Maximum RF input power: 1 W (average), 50 W (peak)
  • Connector type: choice of 3.5 mm female, 3.5 mm male/female
  • Programming connector: 10-pin sockets

Please see Datasheet for complete details and specifications.
