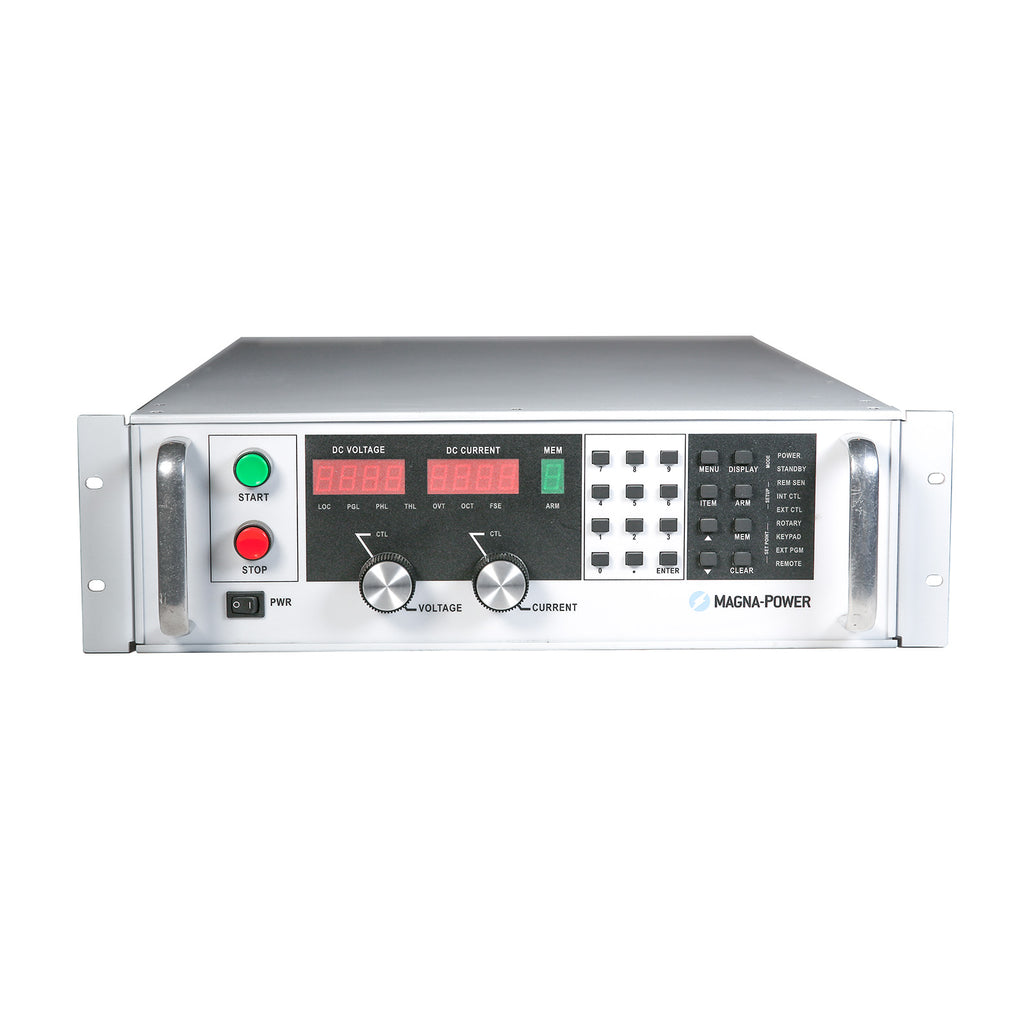

Magna-Power TSD125-120 DC Power Supply, 0 to 125 V, 0 to 120 A, 15 kW, 208 Vac

Magna-Power MPN: TSD125-120/208+BD
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$6,395.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Magna-Power TSD 125-120 Programmable DC Power Supply, 0 to 125 Vdc, 0 to 120 A

The Magna-Power TSD125-120/208, 15 kW programmable DC power supply provides clean, reliable power for ATE, burn-in, magnet charging, OEM, and other test and measurement applications. It features high-accuracy voltage and current programming, class-leading line and load regulation performance, high 3Φ AC input power factor with in-rush limiting circuitry, and computer and user I/O isolated from the power supply output.

The TS Series offers many models spanning a wide voltage and current range, while still maintaining among the highest power density rack-mount packaging. The TS Series covers voltages from 5 Vdc up to 6000 Vdc (floating) and current levels from 1.2 Adc up to 8000 Adc. Models 5 kW to 15 kW are available in a 3U chassis, models 20 kW and 25 kW are available in a 4U chassis, models 30 kW are available in a 6U chassis, models 40 kW and 50 kW are available in an 8U chassis with removable casters, models 75 kW models are available in a 12U chassis with removable casters, and 100 kW models are available in a 16U chassis with removable casters. In addition, there are several special low voltage high current models, enabling a more cost-effective solution for these requirements. All TS Series power supplies come standard with isolated 37-pin external I/O, RS232

Features:

  • Voltage: 0 to 125 Vdc
  • Current: 0 to 120 A
  • Output Power: 15 kW
  • Output ripple (rms): Voltage 100 mV
  • Line Regulation Voltage mode: ±0.004% of full scale; Current mode: ±0.02% of full scale
  • Load regulation: Voltage mode: ±0.01% of full scale; Current mode: ±0.04% of full scale
  • SCPI Remote Programming API
  • High Accuracy Measurements
  • Master-Slave Functionality
  • Remote Sensing
  • 37-Pin External User I/O
  • 0-10 V External Analog Inputs
  • Programmable Protection Limits
  • Fast Transient Response
  • Interlock Shutdown Input
  • Designed and manufactured in the USA
  • 3 Phase, 187-229 Vac; 50-400 Hz operation
  • Weight: 47 lb; Size: 133 mm (5.25 in)H x 483 mm (19.0 in)W x 610 mm (24 in)D

Please see Datasheet for complete details and specifications.
