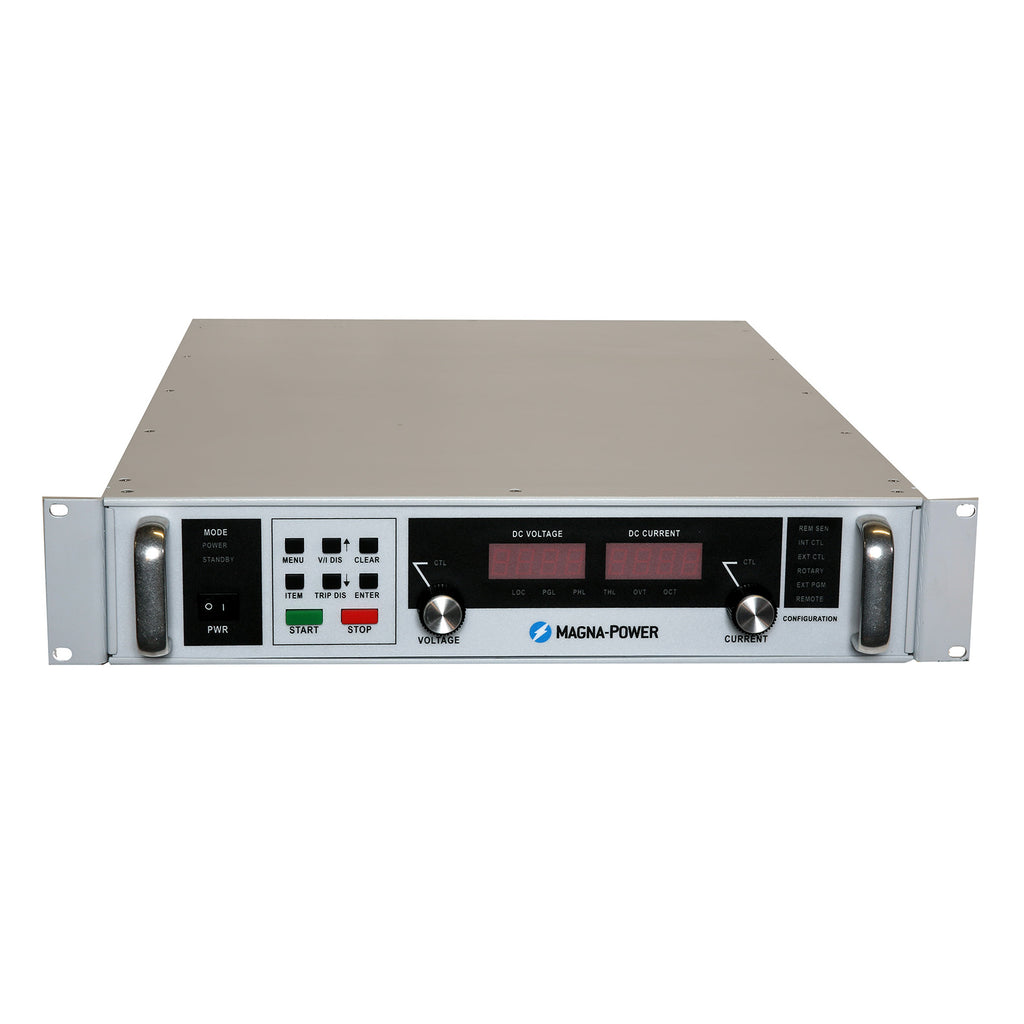

Magna-Power XR5-600/380 DC Power Supply, 0 to 5 V, 0 to 600 A, 4 kW, 342 to 440 Vac

Magna-Power MPN: XR 5-600/380

Sale price$3,395.00 USD
In stock - Ships in 1 to 2 Business Days


Magna-Power XR 5-600/380 Programmable DC Power Supply, 0 to 5 Vdc, 0 to 600 A

The Magna-Power XR 5-600/380, 4 kW programmable DC power supply provides clean, reliable power for ATE, burn-in, magnet charging, OEM, and other test and measurement applications. It features high-accuracy voltage and current programming, class-leading line and load regulation performance, high 3Φ AC input power factor with in-rush limiting circuitry, and computer and user I/O isolated from the power supply output.

The XR Series was designed from the ground up for high reliability and industry leading 2U (3.5” height) rack-mount programmable power levels, at: 2 kW, 4 kW, 6 kW, 8 kW, and 10 kW. The XR Series features the largest voltage range in Magna-Power’s product offering, from 5 Vdc to 10,000 Vdc, all utilizing the company’s signature current-fed power processing to deliver robust power conversion. In addition, high accuracy programming and monitoring levels allow confidence in power supply measurements, eliminating the need for external power meters.


  • Voltage: 0 to 5 Vdc
  • Current: 0 to 600 A
  • Output Power: 4000 W
  • Output noise (0-20 MHz): 70 mVp-p
  • Output ripple (rms): Voltage 5 mV, Current 30 mA
  • Line Regulation Voltage mode: ±0.004% of full scale; Current mode: ±0.02% of full scale
  • Load regulation: Voltage mode: ±0.01% of full scale; Current mode: ±0.04% of full scale
  • SCPI Remote Programming API
  • High Accuracy Measurements
  • Master-Slave Functionality
  • Remote Sensing
  • 37-Pin External User I/O
  • RS232 Interface
  • 0-10V External Analog Inputs
  • Programmable Protection Limits
  • Fast Transient Response
  • Remote Interface Software
  • NI LabVIEW™ and IVI Driver
  • Interlock Shutdown Input
  • Designed and Manufactured in the USA
  • 3 Phase, 342-440 Vac; 50-400 Hz operation
  • Weight: 47 lb; Size: 89 mm (3.5 in)H x 483 mm (19.0 in)W x 610 mm (24 in)D

Please see Datasheet for complete details and specifications.
