Description

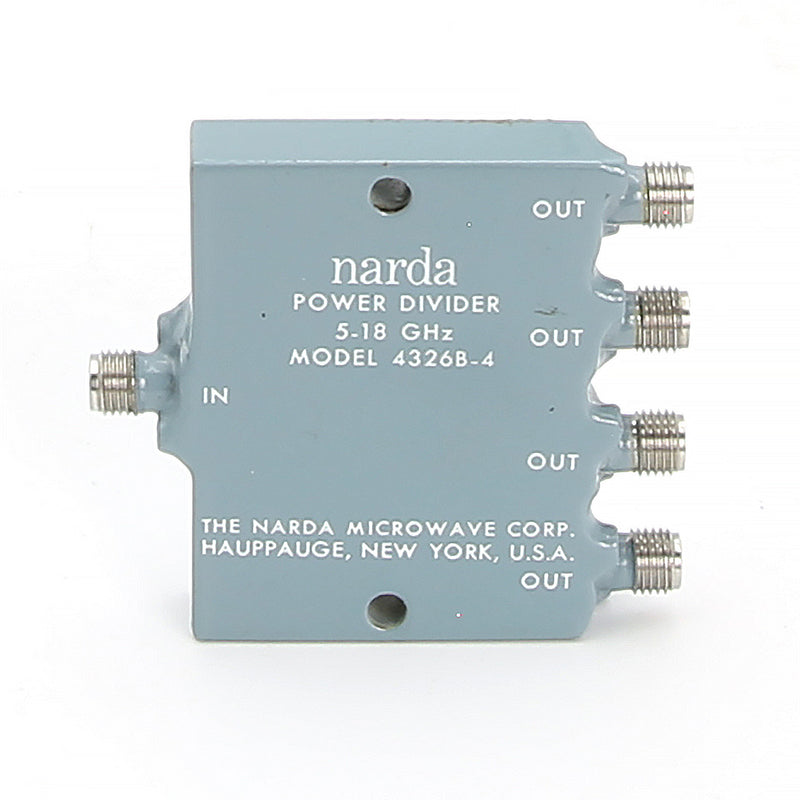

Narda 4326B-4 Power Divider, 4-Way, 5.0 to 18.0 GHz, SMA(f), 30 Watt
The 4326B-4 Model Power Divider covers 5.0 to 18.0 GHz and features SMA(f) connectors. Available in 4-Way.
Features:
- Low Input VSWR
- Excellent Phase and Amplitude Tracking
- High Isolation Between Output Ports
- Designed for MIL Environments
- Frequency Range: 5.0 to 18.0 GHz
- VSWR Input (max): 1.60, 5-12.4 GHz; 1.50, 12.4-18 GHz
- VSWR Output (max): 1.40 5-12.4 GHz; 1.40, 12.4-18 GHz
- Insertion Loss dB (max): 0.5, 5-12.4 GHz; 0.9, 12.4-18 GHz
- Connectors: SMA(f)
- Shipping weight: 2 lb
Please see Datasheet for complete details and specifications.
Datasheets
