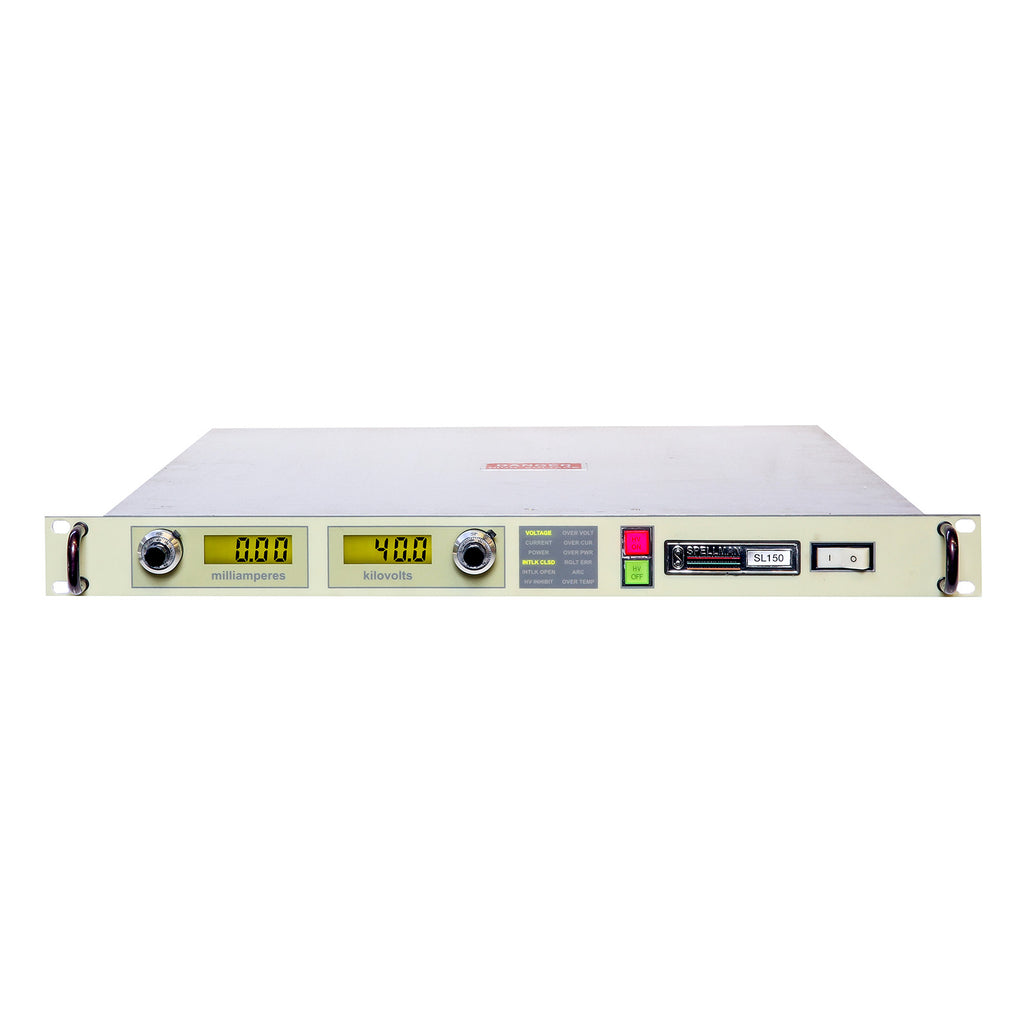

Spellman SL40P150/10001 High Voltage DC Power Supply, +40 kV, 3.75 mA

Spellman SL40P150 High Voltage DC Power Supply, 0 to +40 kV, 3.75 mA

The SL40P150 is a High Voltage DC Power Supply designed to meet uncompromising performance standards in a minimum of space. The circuitry includes a resonant high frequency inverter with proprietary control which provides fault-free operation in extreme transient and arcing environments with greater than 85% efficiency.

Features:

• Voltage: 0 to +40 kVdc
• Current: 0 to 3.75 mA
• 150 Watts
• Voltage Regulation: Load: 0.005% of maximum voltage +500mV for full load change, Line: ±0.005% of full voltage +500mV over specified input range
• Current Regulation: Load: 0.01% of maximum current ±100 µA for full voltage change, Line: ±0.005% of maximum current for a ±10% input line change
• Ripple: 0.1% p-p +1 Vrms
• 115 Vac ±10%; 50/60 Hz operation
• Weight: 17 lb; Size: 1.75 in H x 19 in W x 19 in D

Please see Datasheet for complete details and specifications.
