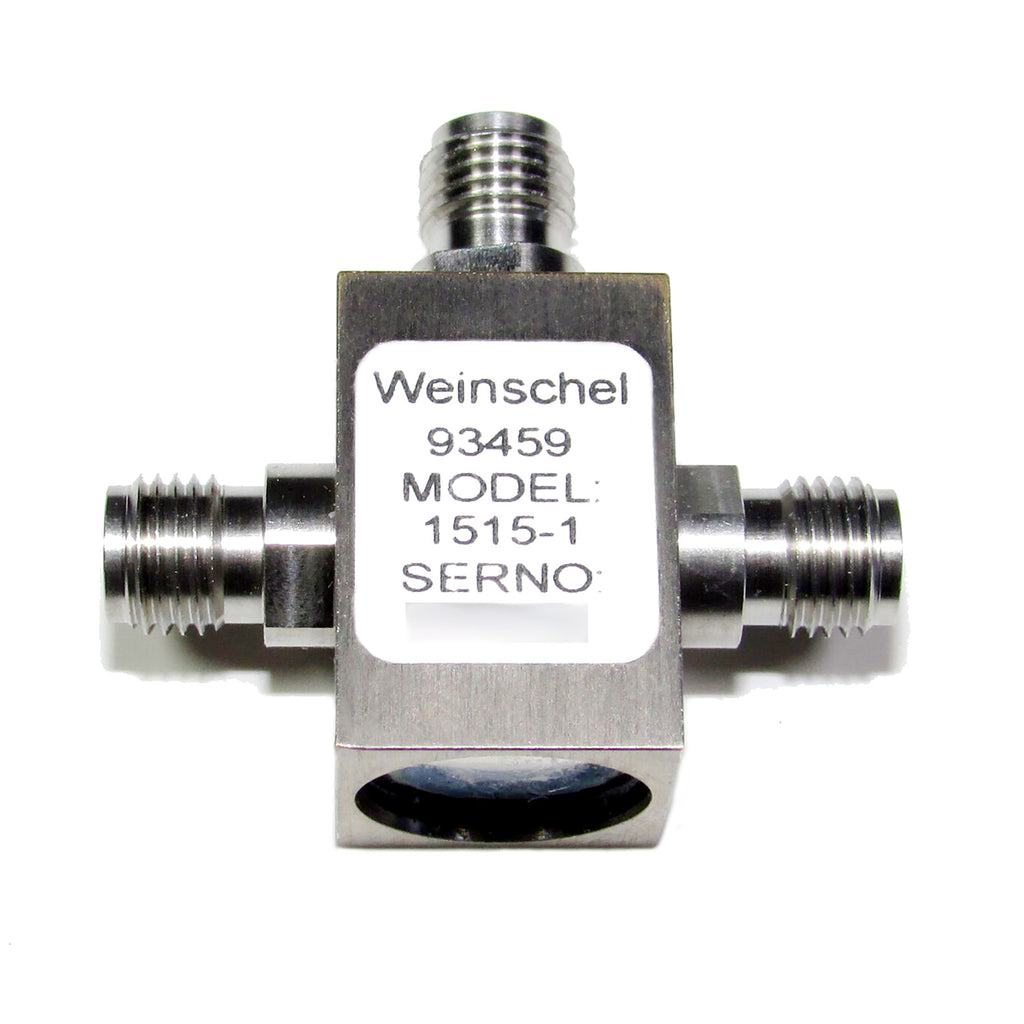

API / Weinschel 1515-1 Broadband Resistive Power Divider, dc to 18.0 GHz, SMA

Weinschel / API MPN: 1515S
REFURBISHED & TESTED 90-DAY WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$179.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

API / Weinschel 1515-1 Broadband Resistive Power Divider, dc to 18.0 GHz, SMA

The 1515-1 is a Broadband Resistive Power Divider. There are many system applications where a power divider can be used to great advantage, some of which are the design of meticulousness, distribution of a signal to two or more antennas, etc. A well designed power divider is also useful in making laboratory measurements where a reference signal that exactly tracks the measurement signal is required.

Features:

  • Nominal Impedance: 50 Ω
  • Frequency Range: dc to 18.0 GHz
  • Insertion Loss (between input & either output arm): 6 dB nominal, -0.2 dB, +1.2 to 10 GHz, 1.5 to 18 GHz
  • Maximum Input Power: 1 watt CW, 1 kilowatt peak (5 µsec pulse width, 0.05% duty cycle)
  • Number of Ports: 3, interchangeable for input and output
  • Phase Tracking: 5° maximum between ports (J2 & J3) with input connector (J1)
  • Power Coefficient: <0.005 dB/dB/watt

Please see Datasheet for complete details and specifications.
