Hioki L2002 Clip Type Probe

Hioki L2002 Clip Type Probe

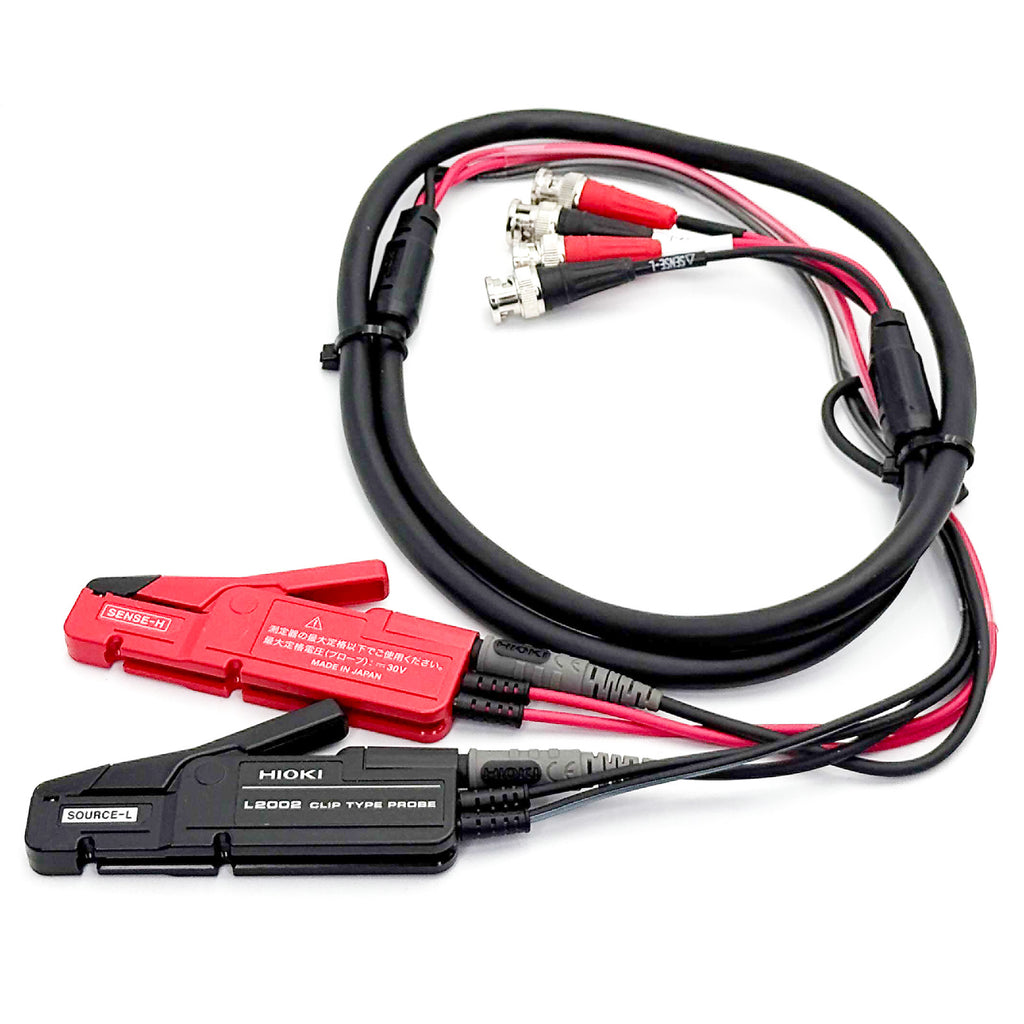

The L2002 Clip Type Probe is designed for precise four-terminal measurements, making it ideal for testing laminate-type batteries and other low-resistance materials. The probe is designed for use with BT4560 Battery Impedance Meters. The probe features a positioning stopper to ensure consistent clipping depth, enhancing measurement accuracy. With a flexible coaxial cable design and replaceable tip pins, the L2002 offers durable, reliable performance across a variety of environments.

Features:

• Measurement frequency range: DC to 1050 Hz
• Maximum rated voltage: 30 V peak
• Maximum rated current: 2.5 A peak
• Cable length: 1.5 m (4.92 ft)
• Mass: Approx. 220 g (7.8 oz)
• Cable type: 50 Ω Coaxial cable
• Tip structure: Gold-plated, spherical surface, replaceable tip pins
• Pin distance: 6.3 mm (0.25 in)

• For use with BT4560 Battery Impedance Meters


Please see the datasheet for complete details and specifications.
