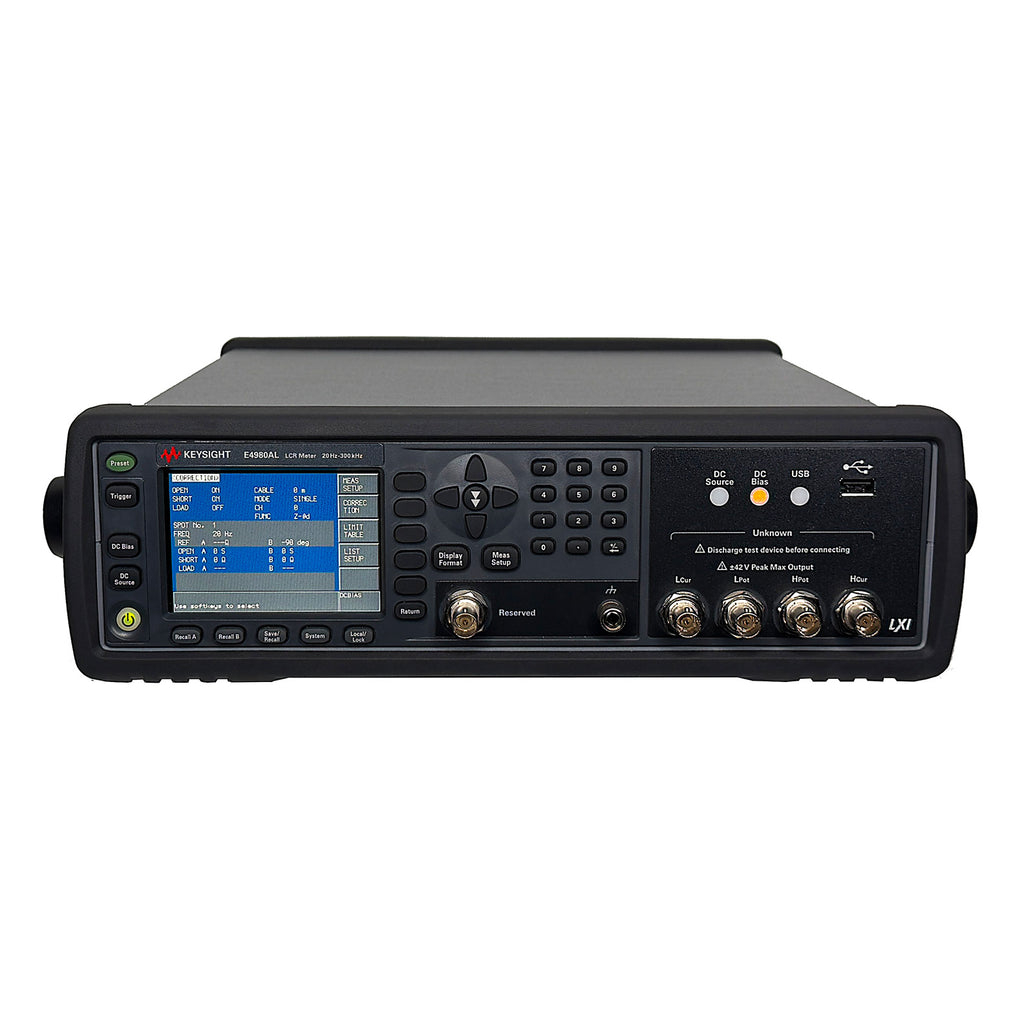

Keysight / Agilent E4980AL Precision LCR Meter 20 Hz to 300 kHz

Keysight / Agilent E4980AL Precision LCR Meter 20 Hz to 300 kHz

The E4980AL precision LCR meter is an industry-standard LCR meter that provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. The frequency upgrades provide a solid investment option and asset utilization.

The E4980AL is the basic tool for general research and development and manufacturing tests of components and materials, offering fast measurement speed and outstanding performance at both low and high impedance ranges. LAN, USB, and GPIB PC connectivity enhances your design and test productivity. For materials measurements, the E4980AL with the N1500A-005/006 materials measurement suite provides ease-of-measurements, from setting-up fixtures to report generation.

Option 032 specifies a 20 Hz to 300 kHz Frequency Range

Features:

• Test frequencies: 20 Hz to 300 kHz, with 4-digit resolution
• 0.05% basic accuracy with superior measurement repeatability at low and high impedance
• DC Bias 1.5/2 V
• Auto-level control
• DC resistance

• 201 points list sweep

• Versatile PC connectivity (LAN, USB, and GPIB)
• 90 to 264 Vac; 47 to 63 Hz operation
• Weight: 5.3 kg; Size: 103.8 mm H x 367.4 mm W x 388.7 mm D

Please see the Datasheet for complete details and specifications.
