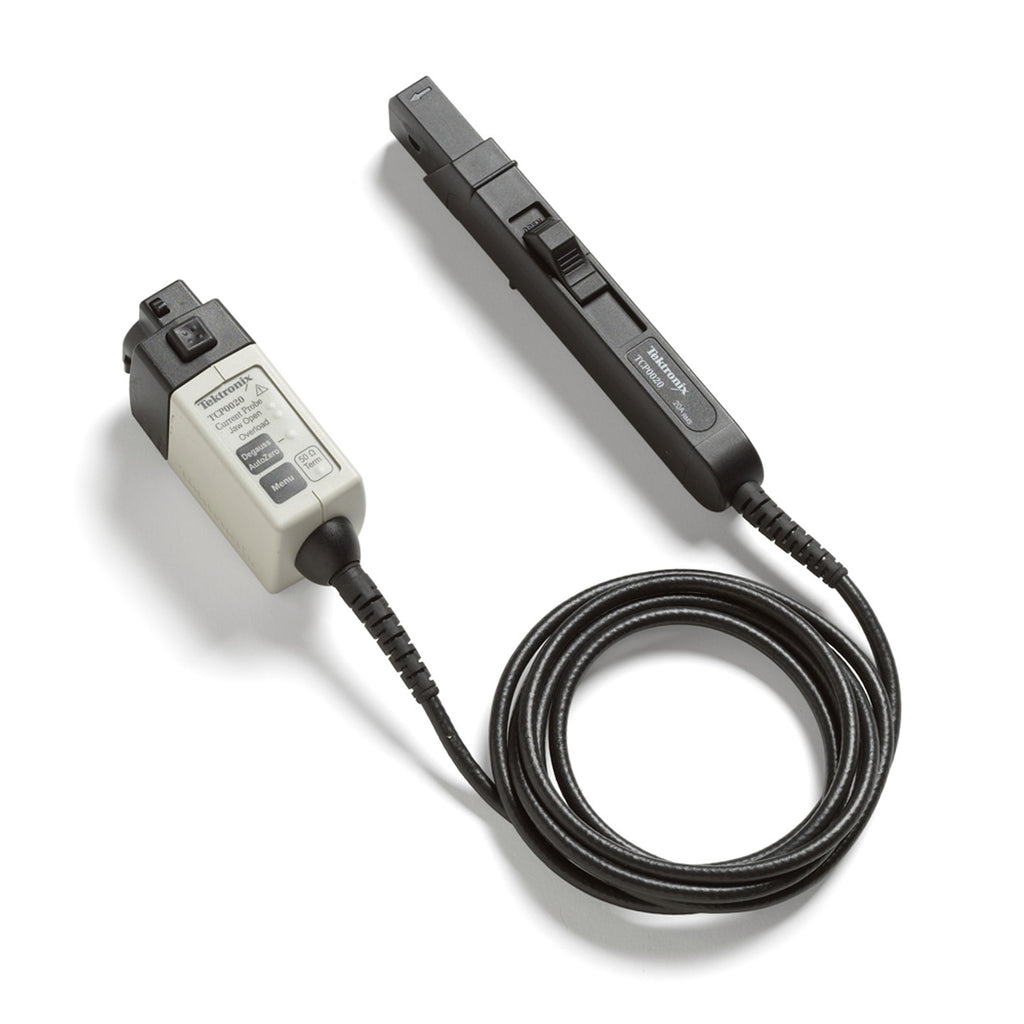

Tektronix TCP0020 Current Probe, AC/DC, 20 A, 50 MHz

Tektronix TCP0020 Current Probe, AC/DC, 20 A, 50 MHz

The TCP0020 is a high-performance, easy-to-use AC/DC Current Probe designed for use and direct connection with the TekVPI probe interface. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.

This AC/DC current probe provides sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and provides a maximum 20 Arms measurement range. The probe also provides excellent accuracy to current levels as low as 10 mA, important for meeting today" challenging current measurement needs.

Features:

• DC to >50 MHz Bandwidth
• 20 A RMS Maximum Current Capability
• 100 A Peak Pulse Current Capability
• Easy-to-use and Accurate AC/DC Current Measurements
• Using the TekVPI Probe Interface
• Provides Automatic Units Scaling and Readout on the Oscilloscope Display
• Split-core Construction Allows Easy Circuit Connection
• High Accuracy with Typically Less than 1% DC Gain Error
• Accurately Measures Current Levels as Low as 10 mA per Division
• Low Noise and DC Drift
• Easy to Degauss and Autozero
• Easy Access to Scope-displayed Probe Menu for Probe Setup Control and Operating Status Information
• Safety Certified for U.S. and Canada
• Clips on conductors up to 0.2 inch diameter
• Cable length: 2 m
• Shipping weight: 5 lb

Please see Datasheet for complete details and specifications.
