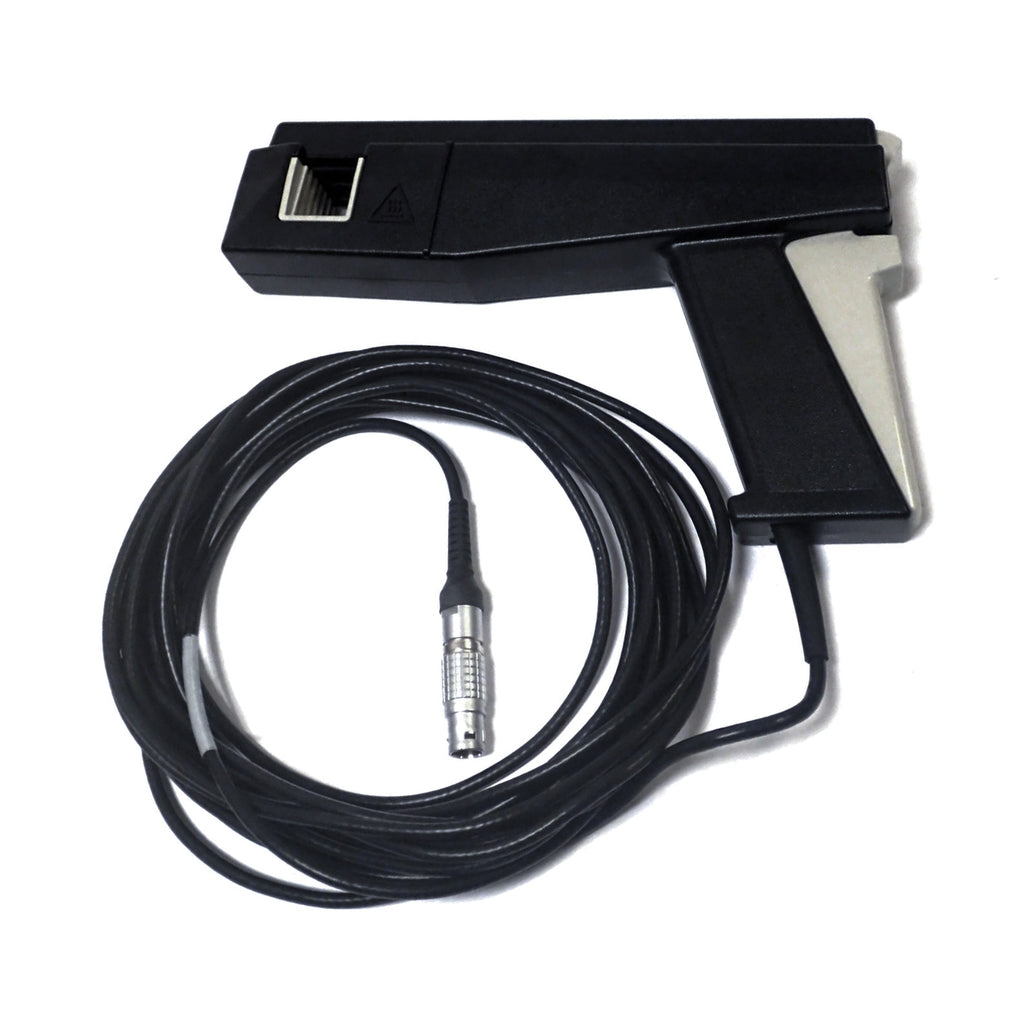

Tektronix TCP404XL AC/DC Current Probe, DC to 2 MHz, 750 A

Tektronix TCP404XL AC/DC Current Probe, DC to 2 MHz, 750 A

The TCP404XL enables users to make direct readout DC and AC current measurements, resulting in accurately displayed and recorded measurements. The TCP404XL provides current measurement capabilities of 750 A DC continuous.

Features:

• Requires TCPA400 amplifier
• dc to 2 MHz
• Current: 500 A DC continuous and 750 A DC continuous, derated with duty cycle.
• Automatic scaling and units - Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations.
• AC/DC input coupling.
• Low insertion impedance reduces device under test loading.
• Split-core construction allows easy circuit connection.
• Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50 Ω, noncompatible probe type.
• Low DC drift and noise allows improved low-level current measurements
• Cable length: 2 m
• Shipping weight: 4 lb

Please see Datasheet for complete details and specifications.
