Ametek / Sorensen DCS 300-3.5E Programmable DC Power Supply, 0 to 300 Vdc, 0 to 3.5 A

Ametek / Sorensen DCS 300-3.5E Programmable DC Power Supply, 0 to 300 Vdc, 0 to 3.5 A

The Sorensen DCS Series is ideally suited for a wide range of applications requiring DC power in a small form factor. Applications range from manufacturing test and burn-in of automotive components, avionics electronics, telecommunications and consumer products to beam steering, process control and laboratory R&D use.

The DCS family provides a highly reliable power platform and includes the following features:

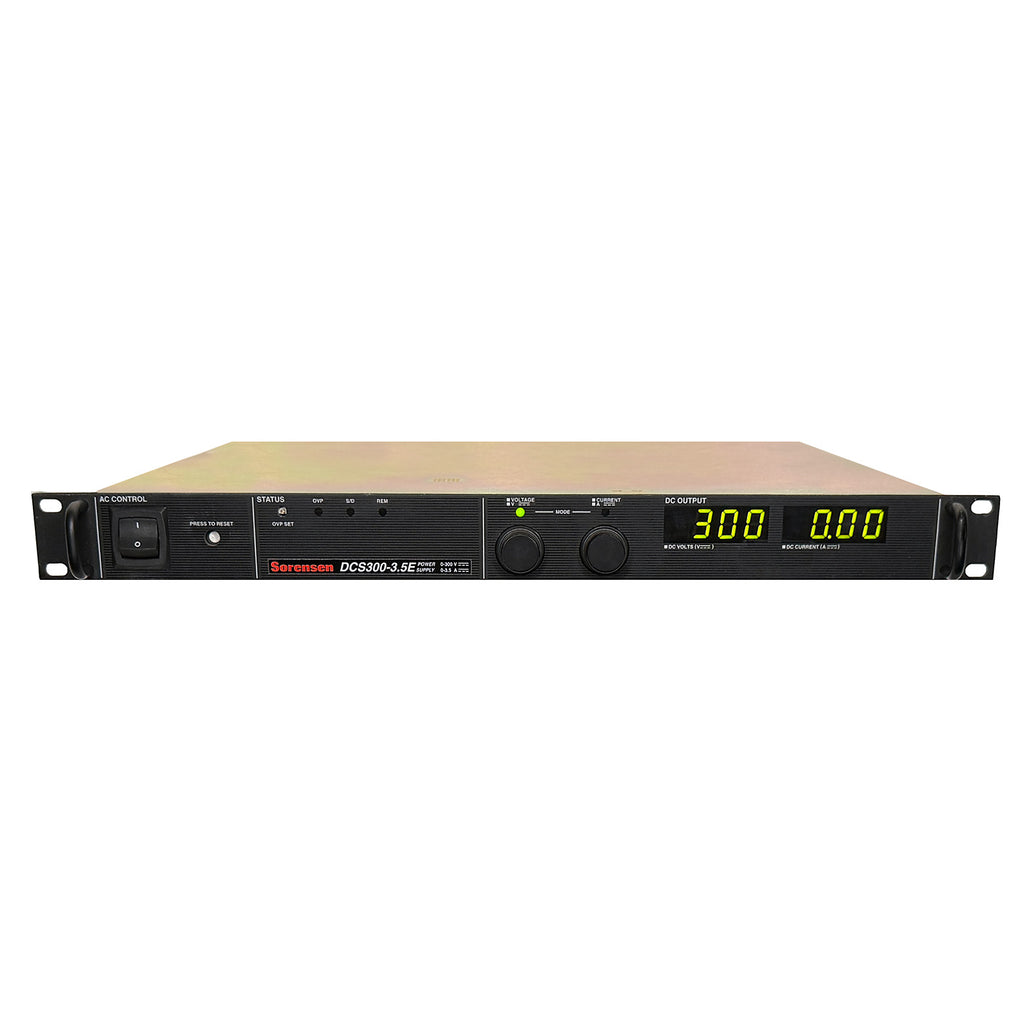

• Easy-to-use front panel with 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously
• LEDs to indicate overtemperature
• Remote M9C Programming
• Shutdown and over-voltage protection
• Status and constant-voltage/current mode operation

Optional M9C adds Internal IEEE-488/RS-232 Interface (can only support 12-bit slaves)

Optional M130 adds LXI compliant 10/100 Base T Ethernet remote control master interface; includes web server for direct control of power supply via web browser (MS Internet Explorer 6.0 or later) (LAN)

Features:

• Output: 0 to 300 V, 0 to 3.5 A
• Output Power: 1050 W
• Simultaneous digital display of both voltage and current
• Automatic mode crossover into current or voltage mode
• Ten turn potentiometer voltage and current controls permit high resolution setting of the output voltage and current from zero to the rated output
• Flexible output configuration: multiple units can be connected in parallel or series to provide increased current or voltage
• High frequency switching technology allows high power density, providing increased power output in a small, light package
• Remote sensing to compensate for losses in power leads
• Adjustable Over-Voltage Protection (OVP)
• External TTL, AC or DC shutdown
• Remote voltage, resistive, current limit and OVP programming with selectable programming constants
• External indicator signals for remote monitoring of OVP status, local/remote programming status, thermal shutdown, and output voltage and current
• 100-132/200-2600 Vac selectable input voltage, 47-63 Hz, single phase operation
• Weight: 19 lb; Size: 43 mm (1.72 in)H x 482 mm (19.0 in)W x 445 mm (17.52 in)D

Please see Datasheet for complete details and specifications.
