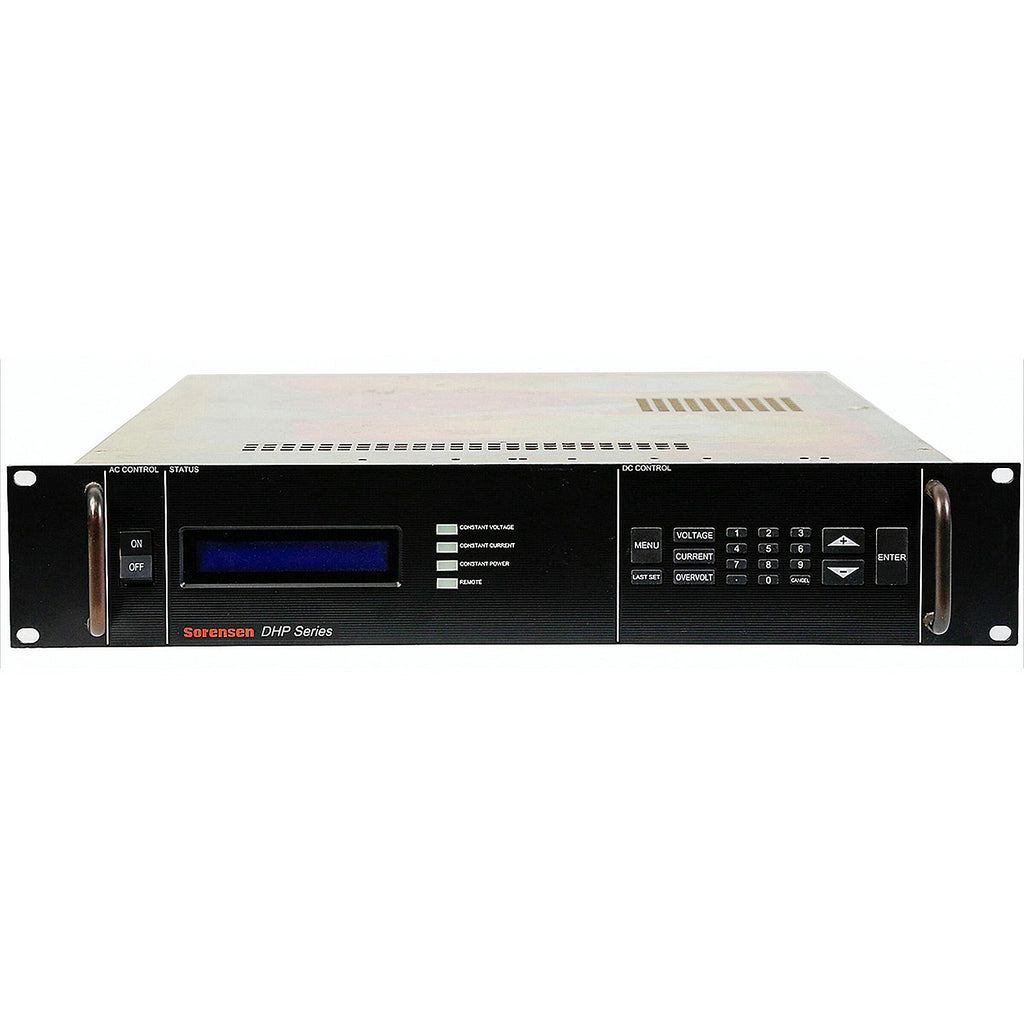

Ametek / Sorensen DHP 40-50 M9D Programmable DC Power Supply, 0 to 40 Vdc, 0 to 50 A, with GPIB

Ametek / Sorensen DHP 40-50 M9D Programmable DC Power Supply, 0 to 40 Vdc, 0 to 50 A, with GPIB

The Sorensen DHP Series provides models ranging in output power from 2 kW to 30 kW in a single chassis. Programmable output voltages range from 5V to 50 VDC, delivering up to 3,000 amperes. This family has two operational modes, constant-voltage and constant-current.

The DHP Series uses control technology permits up to nine (9) steps per sequence with a maximum sequence duration of up to 27.75 hours.

This family has standard analog and a variety of combinations of IEEE-488.2, RS-232 and/or isolated analog input control interface options.

Option M9D = Internal IEEE-488.2 Interface
Option M17 = Down programming option for ≥80V models

Features:

• Output: 0 to 40 V, 0 to 50 A
• Output Power: 2.0 kW
• Unique Controls and Commands:
  • Power-Off Memory: Enabling the input power and pushing the LAST SET button will restore the supply settings
  • External Shutdown: An external shut down to inhibit the output
  • Up/down arrows control voltages, step changes and current
• Digital Displays:
  • Power supply rating
  • Output power, voltage and current
  • All power, voltage and current set points and limits
  • Present and highest AC input voltage
  • Present and highest air inlet temperature
  • Power and auto-step sequence settings
  • Calibration set-up
  • Remote operation set-up
  • Diagnostics fault status summary
• Protection and Safety
  • Safe Power-Up: In the local mode, the output is disabled for additional safety at power up
  • Front Panel Lockout: Most front panel controls are disabled when operated remotely
  • Overvoltage, over temperature, surge limit, soft start, brown out and short circuit protection
• 190-253 VAC, 47-63 Hz, 3 Phase, 3 wire plus ground
• Weight: 45 lb; Size: 89 mm (3.5 in)H x 482 mm (19.0 in)W x 608 mm (24.0 in)D

Please see Datasheet for complete details and specifications.
