Keysight / Agilent N6701C Low-Profile Modular Power System Mainframe, 600 W, 4 Slots

Keysight / Agilent N6701C Low-Profile Modular Power System Mainframe, 600 W, 4 Slots

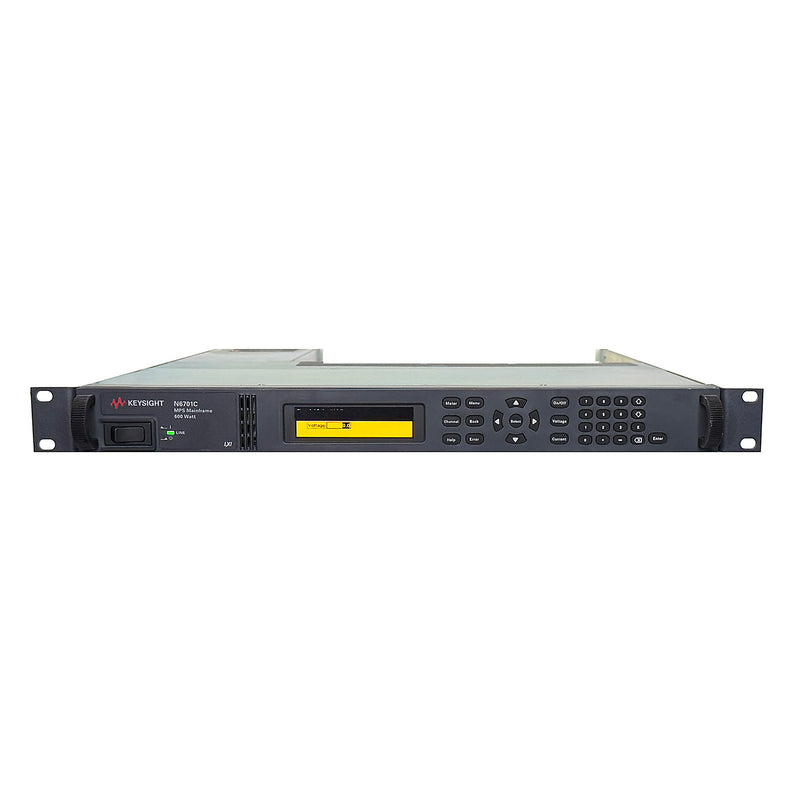

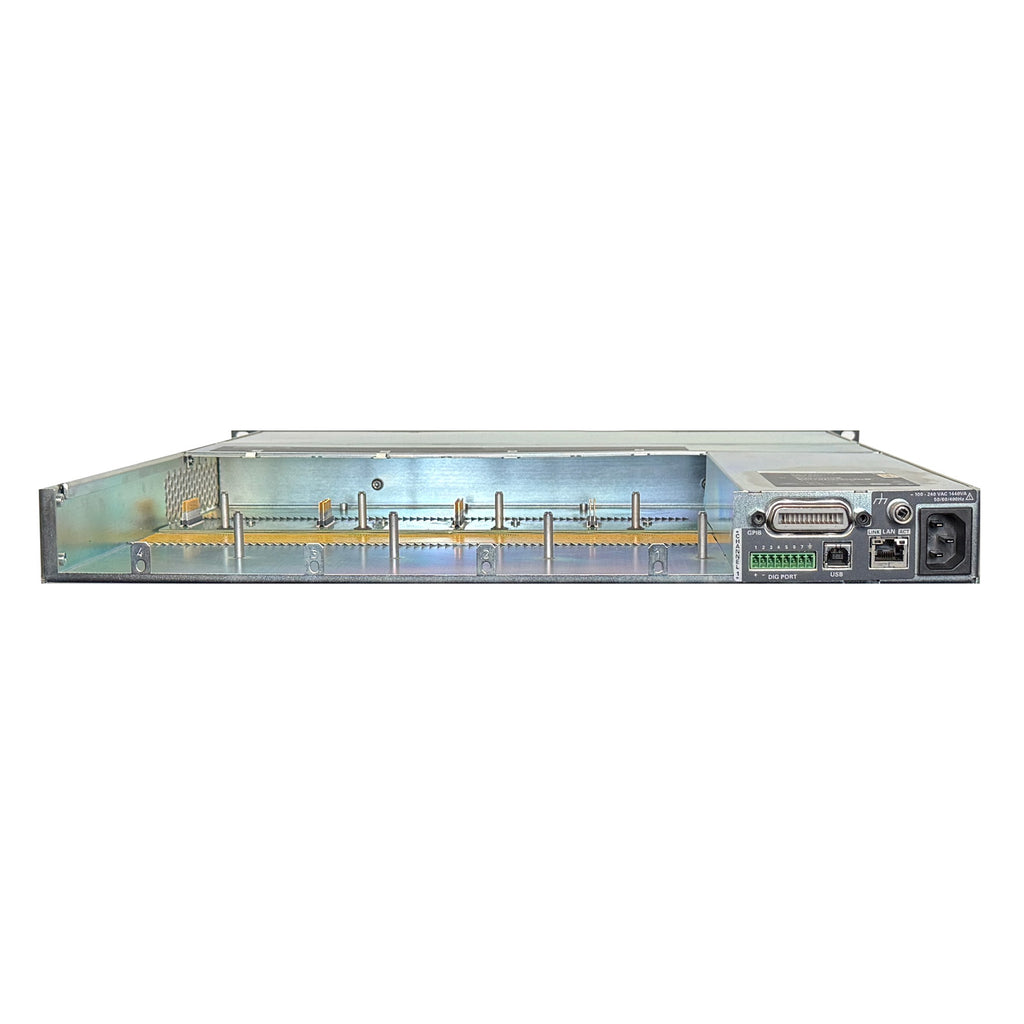

The N6701C Low-Profile Modular Power System (MPS) is a 600 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6701C offers GPIB, LAN, and USB, interfaces standard, and LXI compliance. Select from more than 30 different DC power modules, ranging in capability from basic to high precision and in power from 20 - 500 W.

The Keysight N6701C MPS gives test system designers the flexibility to mix and match from over 30 different DC power modules to create a 1- to 4-channel DC power system or electronic load system optimized to meet specific test requirements. Test system engineers can invest in high-performance outputs where speed and accuracy are needed, or purchase basic performance outputs for simple DC power requirements or an electronic load is required for power supply testing.

Features:

• Maximum Total Output Power (= Sum of Total Module Output Power): 600 W when operating from 100 - 240 VAC input
• Ideal for ATE systems in R&D, design validation, and manufacturing
• Small size: up to four outputs in 1U of rack space
• Flexible, modular system: Lets you mix and match power levels and
  performance levels to optimize your investment
• Performance modules for critical test requirements
• Value modules for basic DC power requirements
• Electronic load modules for power supply testing
• Fast command processing time and output speed to improve throughput
• Connect via GPIB, LAN, or USB
• Fully compliant with LXI Class C specification
• Nominal Input Ratings: 100 Vac - 240 Vac; 50/60/400 Hz
• Input Range: 86 Vac - 264 Vac

Please see Datasheet for complete details and specifications.
