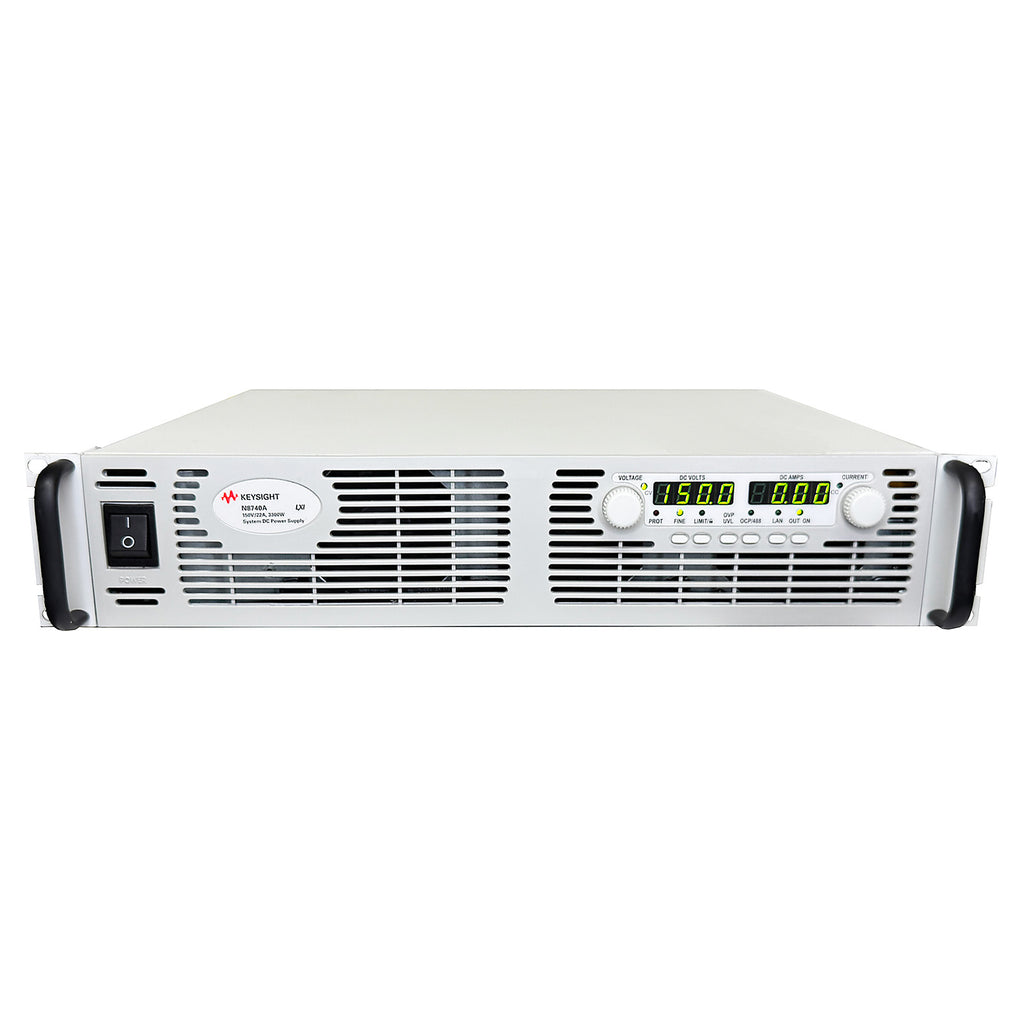

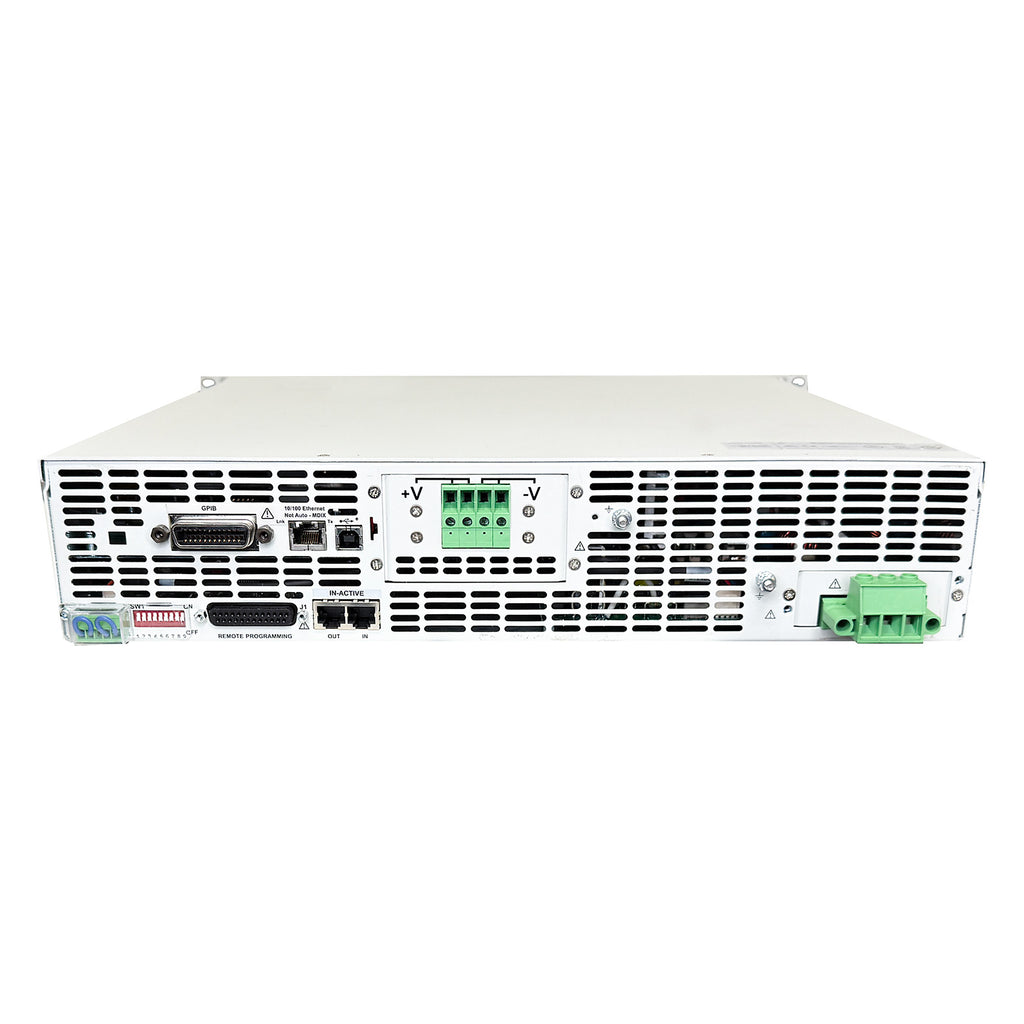

Keysight / Agilent N8740A Autoranging System DC Power Supply, 0 to 150 Vdc, 0 to 22 A, 3300 W

Keysight / Agilent N8740A Autoranging System DC Power Supply, 0 to 150 Vdc, 0 to 22 A, 3300 W

The N8740A is a 3.3 kW, autoranging, single-output programmable DC power supply that delivers high current with low noise in a compact 2U package. Airflow moves front to back, so no additional space is required above or below the power supply in your automated test equipment (ATE) rack.

Features:

• Output Ratings
  • Voltage: 120 V
  • Current: 22 A
  • Power: 3300 W
• Programming accuracy
  • Voltage: 0.05% + 75 mV
  • Current: 0.1% + 44 mA
• Output ripple and noise
  • CV p-p: 100 mV

  • CV rms: 25 mV

• Built-in voltage and current measurement
• High power density, 3.3 kW in a 2U package
• Protection from over-voltage, over-current, and over-temperature
• LAN (LXI Core), USB, GPIB, and analog interfaces are all standard
• AC input Voltage range (option 230): 190 to 240 VAC, 50/860 Hz, Single Phase

Please see the Datasheet for complete details and specifications.
