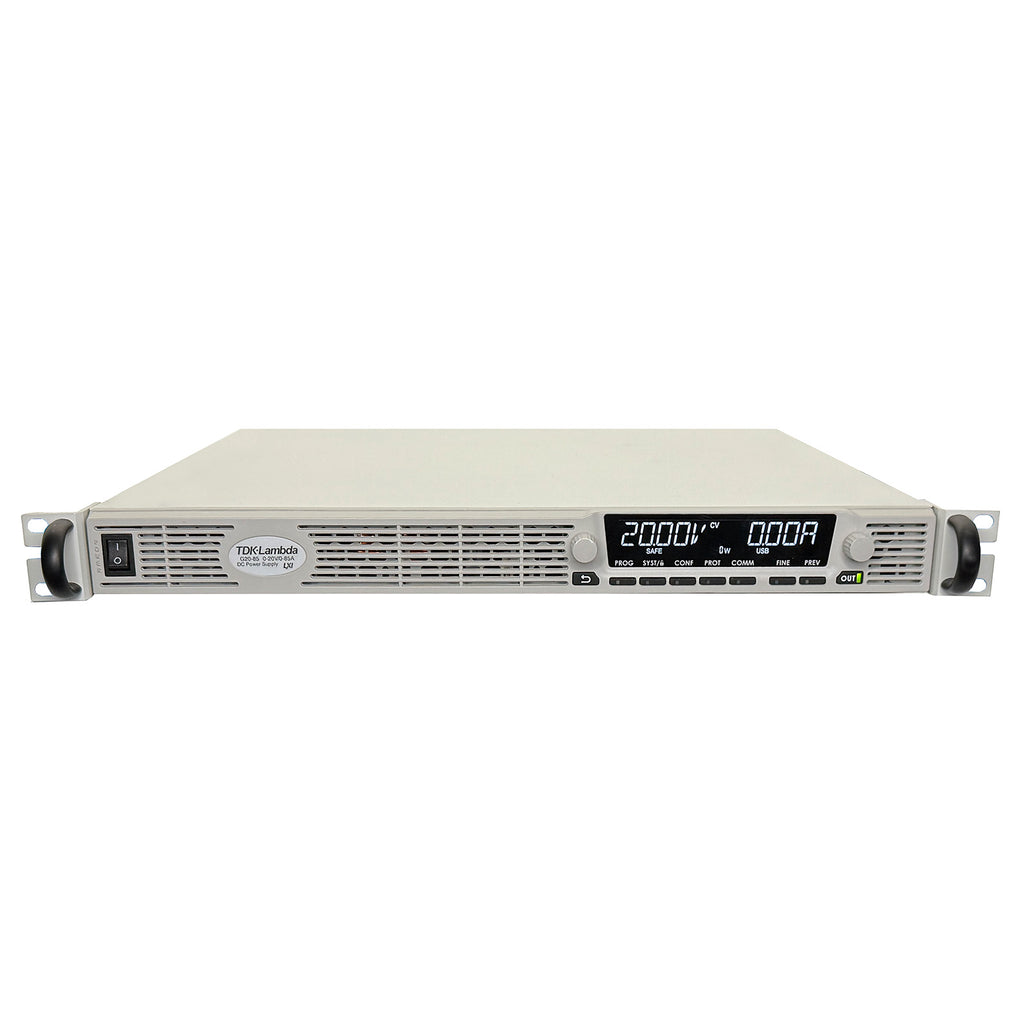

TDK-Lambda GENESYS+ G20-85 Programmable DC Power Supply, 0 to 20 V, 0 to 85 A, 1700 W

TDK-Lambda GENESYS+ G20-85 Programmable DC Power Supply, 0 to 20 V, 0 to 85 A, 1700 W

The G20-85 is part of the Genesys+™ family of Bench-Top/Rack-Mount Advanced Programmable DC Power Supplies that sets a new standard for flexible, reliable, power systems in OEM, Industrial, and Laboratory applications. The GENESYS+™ Series provides advanced features in light-weight portable high power density profiles with a comprehensive set of built-in user-friendly interfaces that include a multi-functional front panel, LAN (LXI 1.5), USB (2.0), RS-232/RS-485, and Isolated Analog (5 V/10 V), several optional digital communication interfaces.

AC Input options have built-in Active Power Factor Correction (0.99/0.94 typical @ rated load) and are offered in single-phase 85-265 VAC, single-phase 230 VAC, three-phase 208 VAC, or a wide-range three-phase 400 VAC/480 VAC Input.

Advanced features include Programmable V/I Slew-Rate control, Constant-Power Limit control, Arbitrary Waveform Generator w/ Auto-Trigger, Internal Resistance Programming, Pre-Load On/Off control, Trigger In/Out control and Control Pins for Output Disconnect/Polarity Reversal.

All models are CE/UKCA Marked in accordance with the Low Voltage, EMC and RoHS Directives, have worldwide Safety Agency approvals (UL/cUL/IEC/EN 61010-1).

• Arbitrary Waveform Generator with Auto-Trigger Capability
• Programmable Slew Rate Control (Vout/Iout)
• Constant Power Limit Operation • Internal Resistance Programming
• Built-In Remote Isolated Analog Interface
• Built-In LAN (LXI 1.5), USB, and RS-232/RS-485 Interfaces

Features:

• 0 to 20 Vdc, 0 to 85 A
• 1700 W

• 1U height, 19” rack-mount
• Built-in LAN ( 1.5), USB, RS-232/RS-485 Interface
• Multi-Drop capability (RS-485)
• Multi-functional front panel display
• Last-Setting Memory
• Auto-Start / Safe-Start: user selectable
• High Resolution 16-bit ADCs & DACs
• Arbitrary Waveform Generator with Auto-Trigger Capability
• Store up to 100 steps into four internal memory cells
• High-speed Programming
• Constant Voltage/Constant Current operation modes
• Constant Power (CP) Limit
• Slew-Rate Control (V/I)
• Internal Resistance Programming Simulation
• Local / Remote Sensing - software controlled
• Built-In Remote Isolated Analog Program/Monitor and Control Interface
• Protection functions (OVP, UVP, UVL, FOLD (CV/CC), OCL, OTP, AC FAIL)
• Fan speed controlled by ambient temperature and load
• Certified LabWindows™/CVI, LabVIEW™, and IVI Drivers
• Worldwide Safety Agency approvals
• CE Mark for Low Voltage, EMC and RoHS3 Directives
• Wide Range Input 85-265 Vac Continuous, Single Phase, 47/63 Hz
• Light-weight 5 kW<7.5 kg, 7.5 kW<8.5 kg, GSP 10 kW<15.5 kg, 15 kW<23.5 kg

Please see the Datasheet for complete details and specifications.
