EA Electro-Automatik EA-PSB 10750-120 Bi-Directional Power Supply, 0 to 750 V, 0 to 120 A, 30 kW, 208 Vac

EA Electro-Automatik EA-PSB 10750-120 Bi-Directional DC Power Supply, 0 to 750 Vdc, 0 to 120 A

The Electro-Automatik EA-PSB 10750-120 is a two-quadrant device that can perform the function of a power supply as well as that of an electronic load. In sink mode, the device is regenerative and feeds the energy back into the local grid with an efficiency of up to 96%. The DC supply operates as a flexible output stage with a constant power characteristic (auto-ranging) with a wide voltage and current range. To achieve higher power and current, all units are equipped with a master-slave bus. This enables up to 64 parallel connected devices to be combined into one system, which can provide up to 1920 kW and 64000 A Such a system works as a single unit and can use different power classes; only the voltage class must remain constant. In this way, a user can construct a 75 kW system from two 30 kW 4U and one 15 kW 3U device from the PSB or PSBE 10000 range. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, various optional industrial interfaces, software solutions, and many more functions.

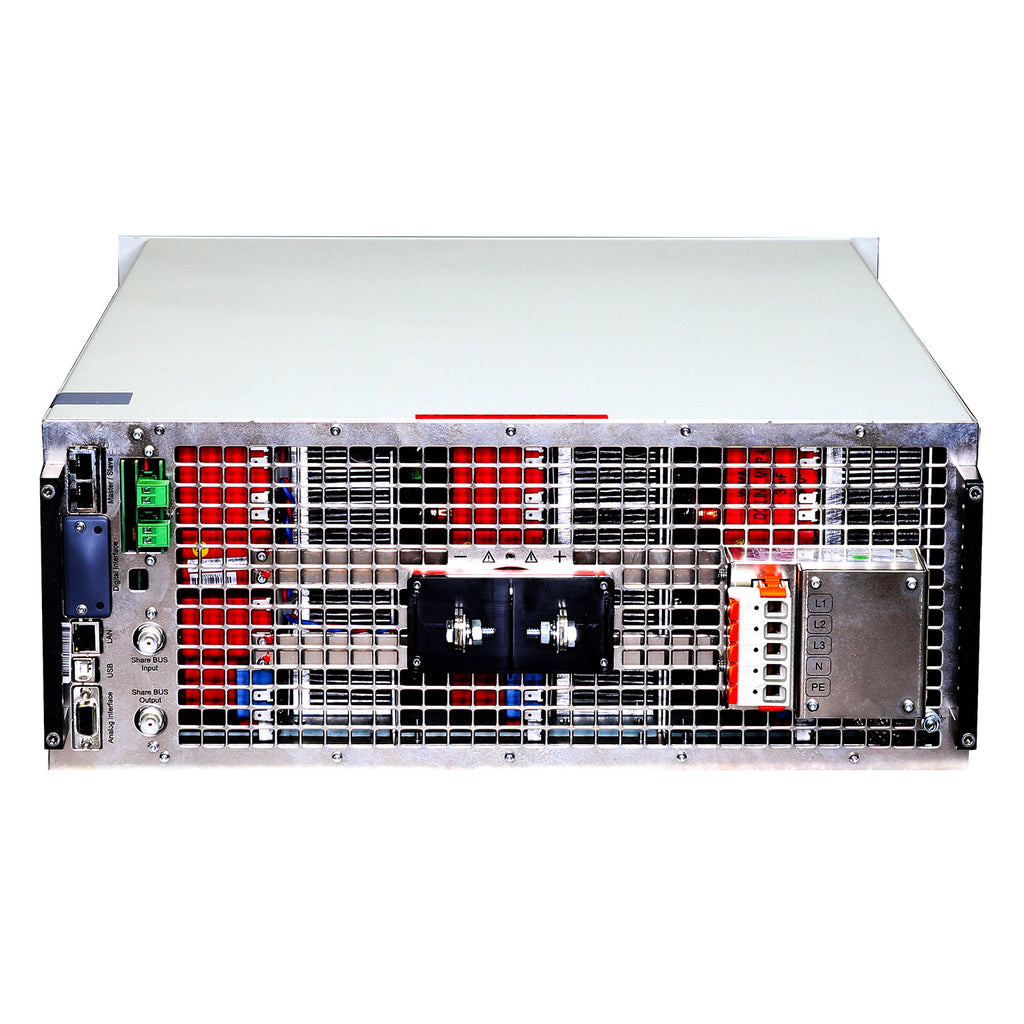

AC connection
The PSB 10750-120 is equipped with an active PFC, which provides high efficiency at a low energy consumption. This device can be operated in the majority of global grids with a wide input voltage range from 208 V to 380/400/480 V, 3-phase. It adjusts automatically, without additional configuration, to the available grid voltage. In a 208 V AC grid, a derating of the DC output power is automatically set.

Features:

• Voltage: 0 to 750 Vdc
• Current: 0 to 120 A
• Output Power: 0 to 30 kW
• Output ripple: (rms) ≤200 mV (BW 300 kHz); (p-p) ≤800 mV (BW 20 MHz)
• Line Regulation Voltage mode: ±0.05% of full scale; Current mode: ±0.1% of full scale
• Load regulation: Voltage mode: ±0.01% of full scale; Current mode: ±0.01% of full scale
• Bidirectional Power Supply - two quadrants in source and sink
• Regulation Mode: CV, CC, CP, CR with fast crossover
• Master-Slave Functionality

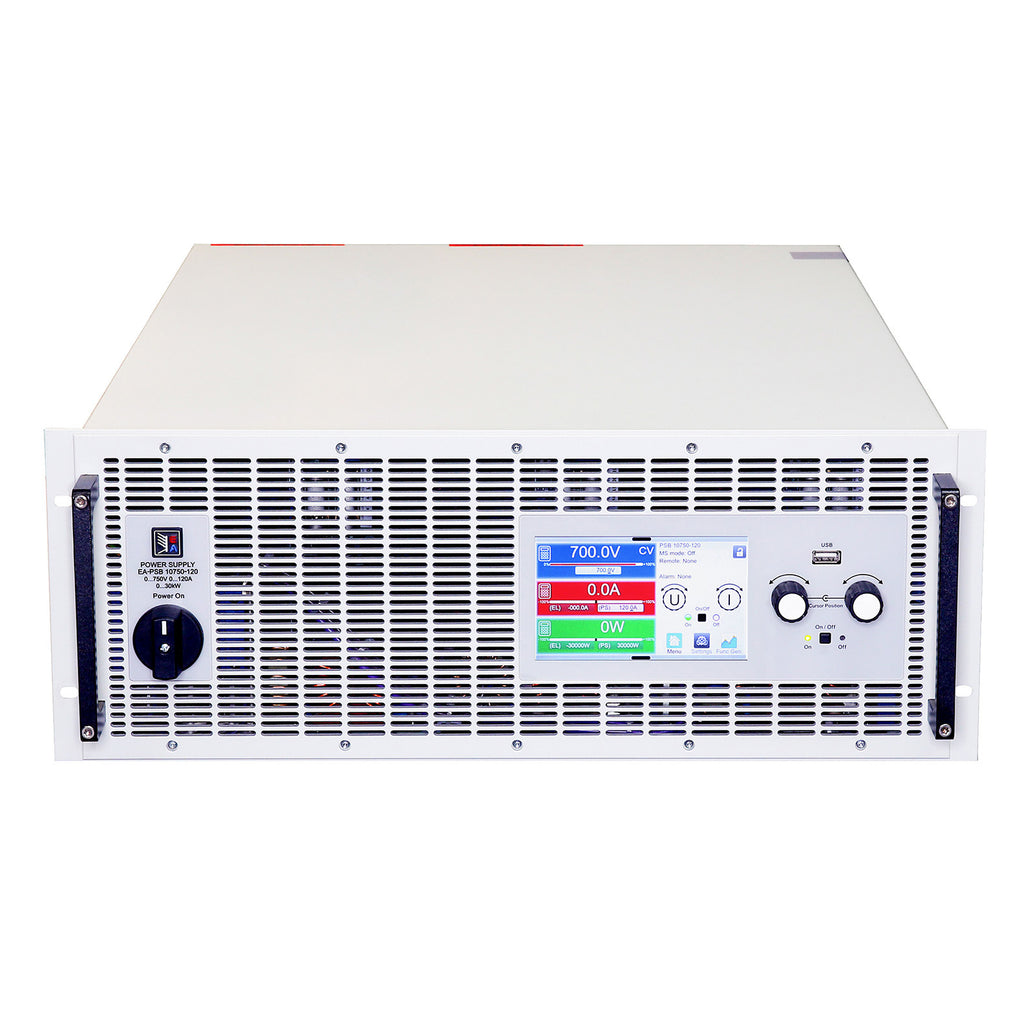

• Color 5" TFT Touch Screen Display
• Integrated Function Generator for predefined curves
• Interfaces: USB, LAN, Analog, USB Host
• Line Input Power: Range 1 - 208 Vac, ±10%, 3-phase; Range 2 - 380 to 480 Vac, ±10%, 3-phase
• Weight: 50 kg (110 lbs); Size: 817.8 mm (7 in)H x 483 mm (19.0 in)W x 785 mm (31 in)D

Please see the Datasheet for complete details and specifications.
