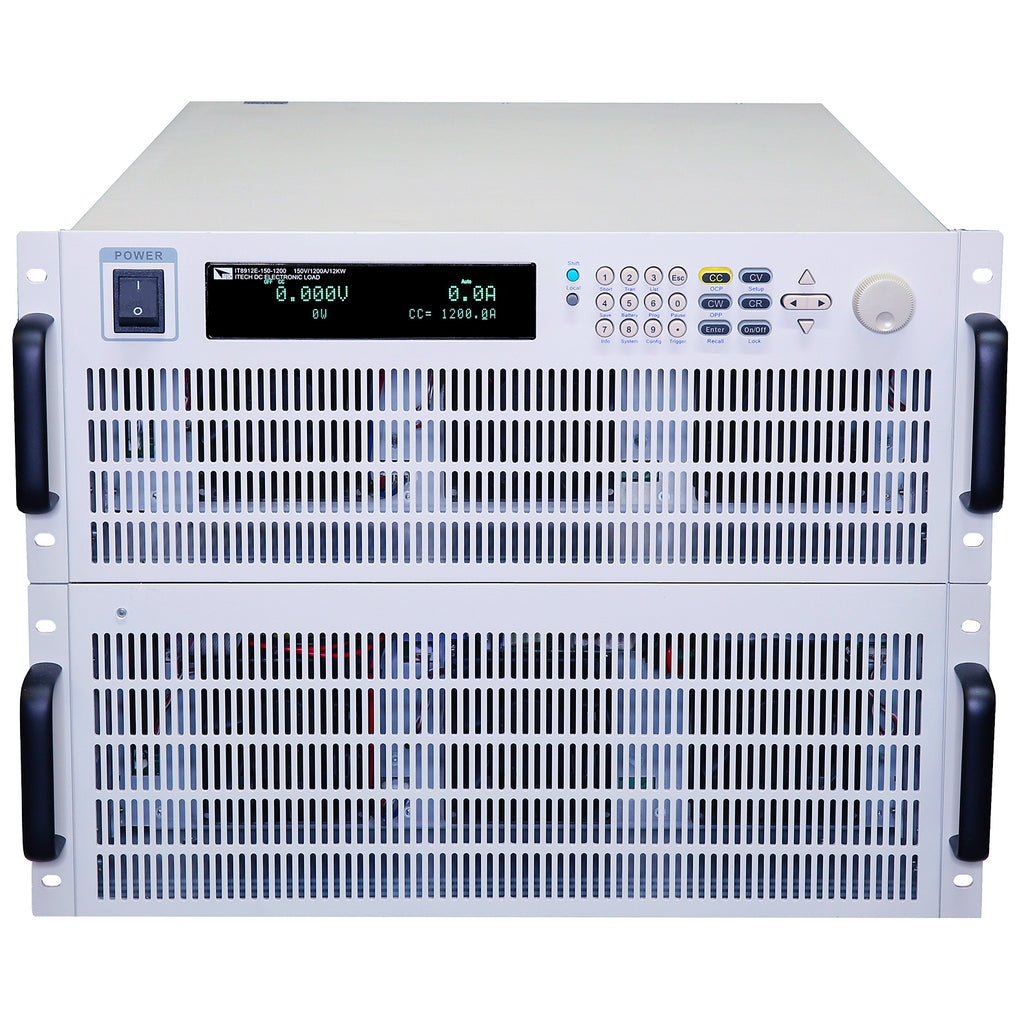

Itech IE8912E-150-1200 DC Electronic Load, 0 to 150 V, 0 to 1200 A, 12 kW

Itech IE8912E-150-1200 DC Electronic Load, 0 to 150 V, 0 to 1200 A, 12 kW

The Itech IE8912E-150-1200 high-performance high-power DC electronic load provides a voltage range of 150 V and a stand-alone power of 12 kW. IT8900A/E series, with ultra-wide voltage and current range, controlled by an independent master unit. The power expands to 600kW by master-slave paralleling. Ultra-high power density, 12 kW with only 8U height. The IT8900A/E series has four working modes, faster loop response and current rising and falling speed, as well as dynamic mode, OCP test, OPP test, automatic test, and battery test functions. Built-in CAN, LAN, GPIB, USB, RS232, and analog interfaces, etc., IT8900A/E series has a full protection function, which can be applied to power battery discharge, DC charging stations, on-board charger (OBC), power electronics, and other power electronics products.

Features:

• Stand-alone input power: 12 kW
• Voltage range: 0 to 150 V
• Current range: 0 to 1200 A
• Master/slave paralleling control, maximum power expands to 600 kW
• Multiple operating modes: CC, CV, CR, CP
• Adjustable CV loop speed, match different power supplies
• 500 kHz high-speed voltage and current sampling rate
• Time measurement, battery discharge test function
• Short circuit simulation, automatic test function
• Soft start and soft stop prevent voltage fluctuations at on/off
• Timing control list programming
• I-monitor
• OCP/OPP test function
• High-precision voltage and current measurement
• Protection functions: OVP, OCP, OPP, OTP, current oscillation protection, limited current protection, limited power protection, reverse alarm protection, etc.
• Up to 100 group memories, with power-off memory function
• Independent master unit control for easy maintenance and installation

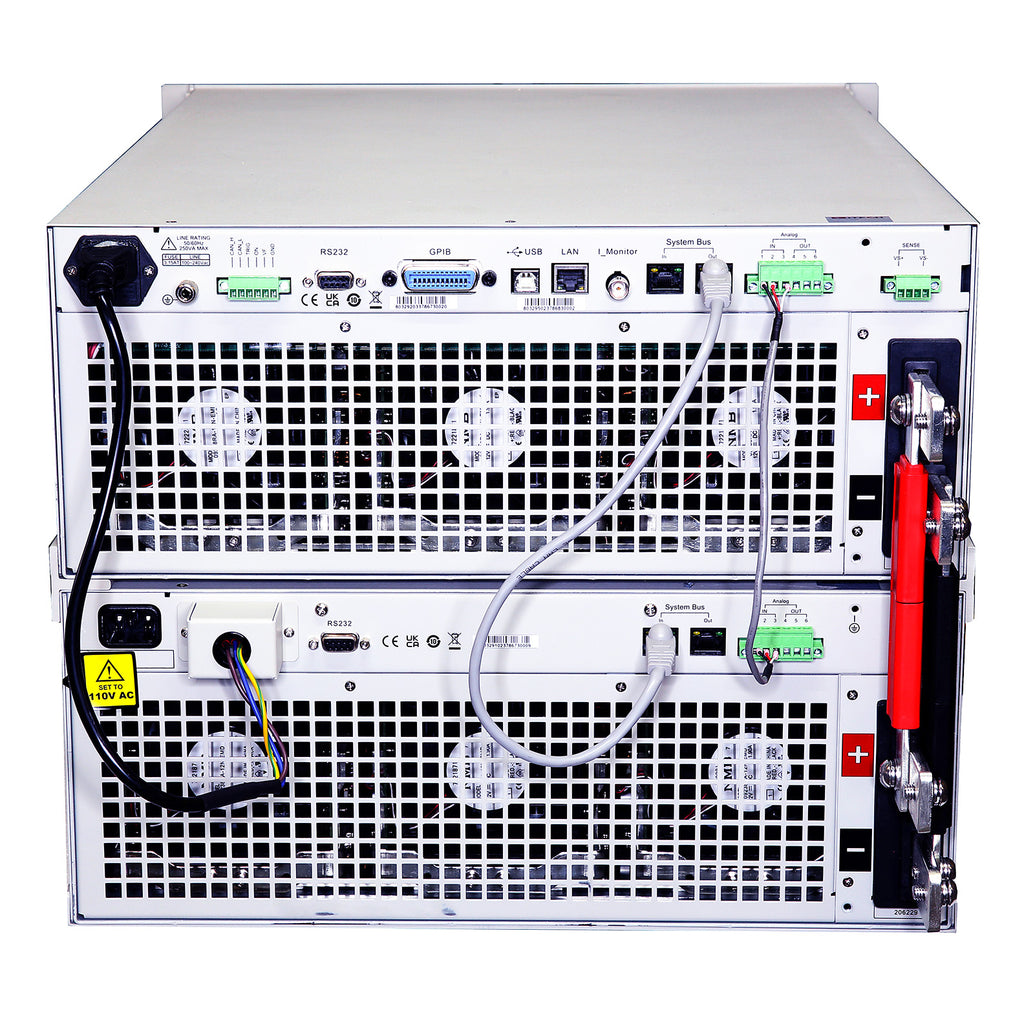

• Interfaces: LAN, USB, RS232, GPIB, CAN, external analog control
• Line Input Power: 100 to 240 Vac, Single Phase; 50/60 Hz
• Weight: 80 kg (177 lbs); Size: 356 mm (14 in)H x 483 mm (19.0 in)W x 785 mm (31 in)D

Please see the Datasheet for complete details and specifications.
