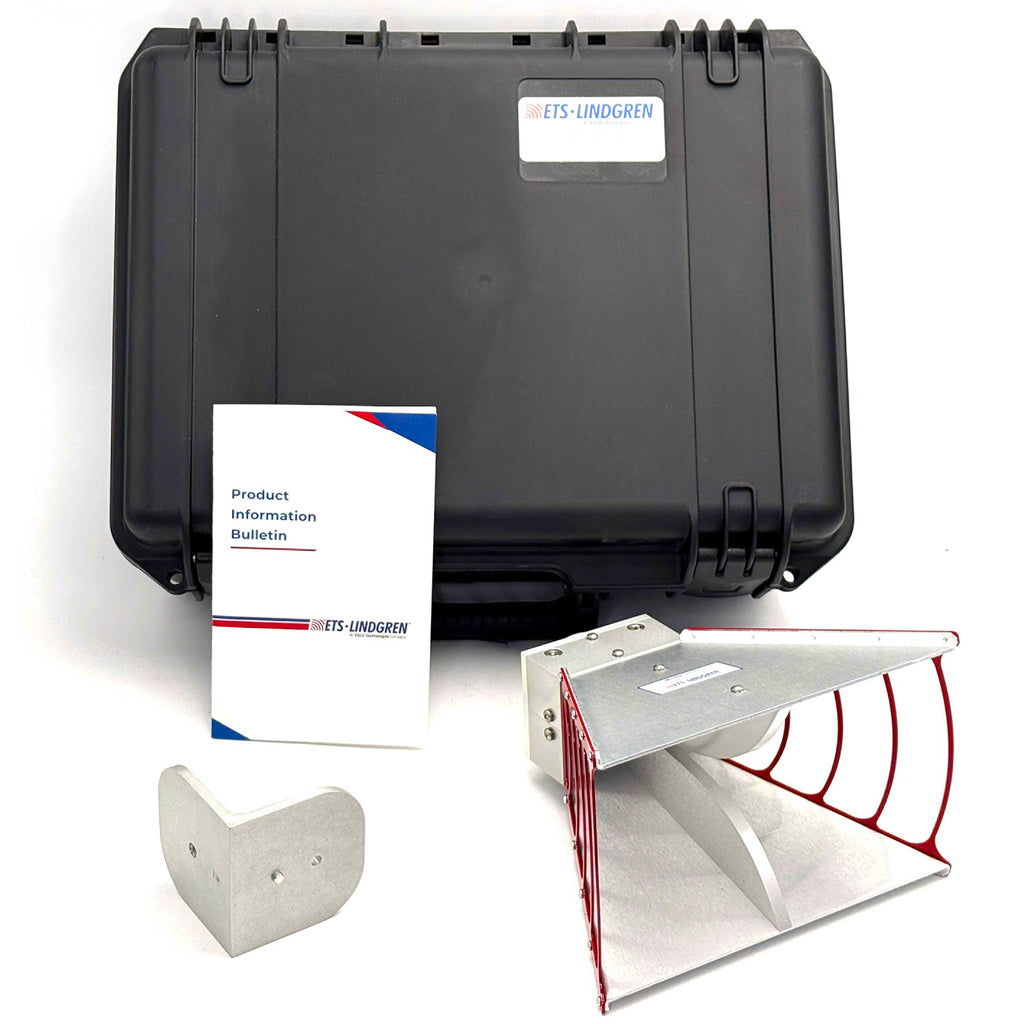

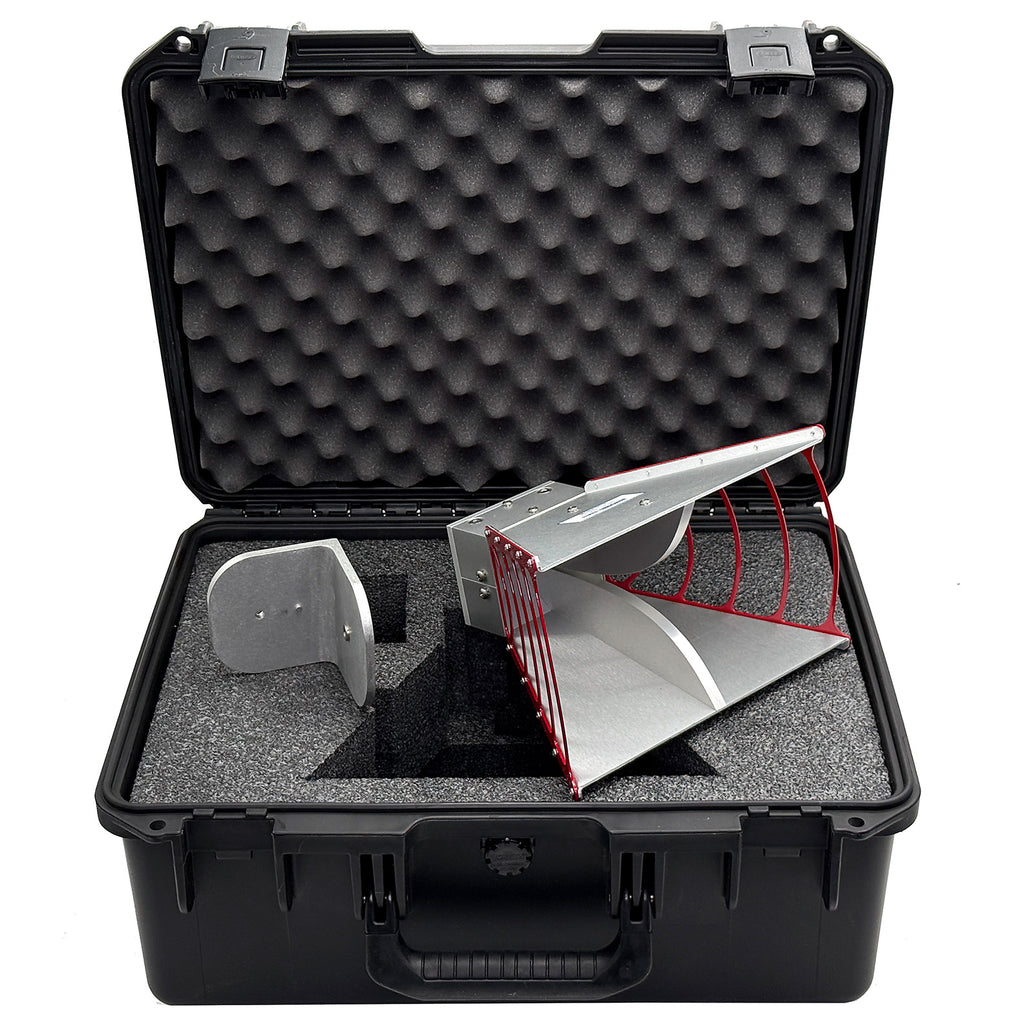

ETS-Lindgren / ETS / EMCO 3115 Double-Ridged Guide Horn Antenna Kit, 750 MHz to 18 GHz

ETS-Lindgren / ETS / EMCO 3115 Double-Ridged Guide Horn Antenna, 750 MHz to 18 GHz

The ETS 3115 Double-Ridged Horn Antenna has excellent gain and VSWR characteristics; it is small and portable, with a width of 24.4 cm (9.6 in), and is now calibrated to 750 MHz. Ultra Broadband The Model 3115 sweeps from 750 MHz to 18 GHz without stopping for band breaks, making it ideal for automated testing. It has the widest usable frequency range of any antenna in its class, with no performance degradation from higher-order modes. A bracket is provided for the standard tripod mounting in either V or H polarization. Bracket Mount is 1/4" 20 thread.

The 3115 uses a Type N precision connector and accepts up to 300 watts of continuous input power. The antenna's high gain and low VSWR over its operating frequency translates into efficient amplifier use and higher field strengths.

Features:

• Broad frequency range: 750 MHz to 18 GHz
• Maximum Continuous Power: 300 W
• Connector: Precision N (f)
• Impedance (Nominal): 50 Ohms
• Continuous Power 300 W
• Peak Power 500 W
• VSWR: 2:1 (3:1 Max) >1 GHz; 5:1 (Typical) @ 750 MHz
• Pattern Type: Directional
• Polarization: Linear

Please see the Datasheet for complete details and specifications.
