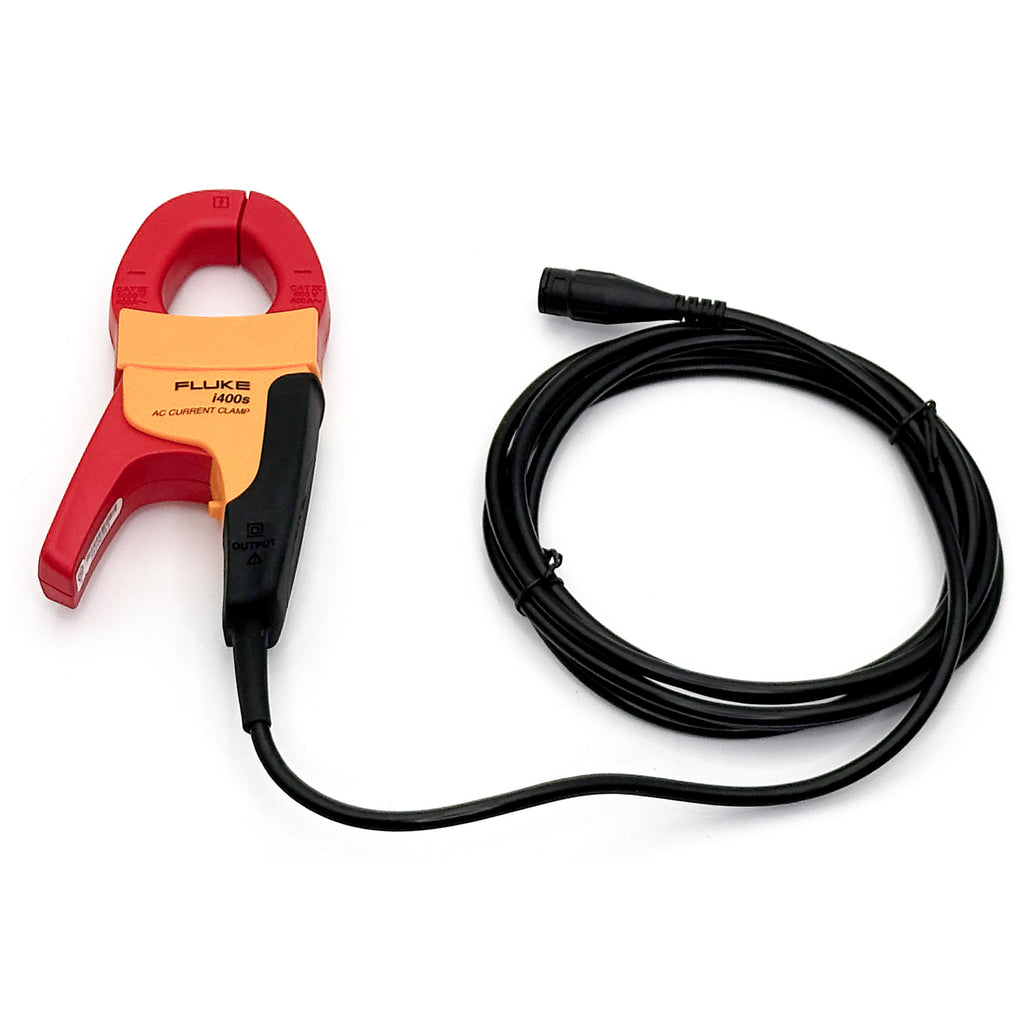

Fluke i400s AC Current Clamp

Fluke i400s AC Current Clamp

The Fluke i400s AC Current Clamp extends the current ranges of digital multimeters, power quality analyzers, and portable oscilloscopes and is available for both AC and AC/DC environments. The Fluke i400s is specially designed to offer maximum utility in a compact shape and is the only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating.

The i400s is compatible with any instrument capable of AC millivolt measurements. It can accept a standard BNC connector, and has an input impedance of greater than or equal to 1 MΩ in parallel with a maximum of 47 pF. The Current Clamp can also be used with digital multimeters using a BNC-to-banana jack adapter.

Features:

• Nominal current range: 400 A
• Two ranges: 40 A and 400 A, 10 and 1 mV/Amp output
• Continuous current range: 1 A to 400 A
• Maximum non-destructive current: 1000 A
• Lowest measurable current: 1 A
• Basic accuracy: 2% + 0.04 A (45-400 Hz) (% reading + floorspec)
• Usable frequency: 5 Hz to 10 kHz
• Output level(s): 10 and 1 mV/A
• Safety Specifications: Safety CAT IV 600 V, CAT III, 1000 V
• Companion to your DMM to measure up to 400 A AC
• 1 mA/Amp output guarantees easy reading on your meter
• Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
• Specially designed to offer maximum utility in a very compact shape
• Take accurate current readings without breaking the circuit
• Soft, non-slippery overmold handle prevents accidental touching of live wiring
• Max. conductor Ø 32 mm

• Output cable length: 2.5 m
• Connectors: BNC(m)

Please see the Datasheet for complete details and specifications.
