Vitrek 4700 Precision High Voltage Meter

Vitrek 4700 Precision High Voltage Meter

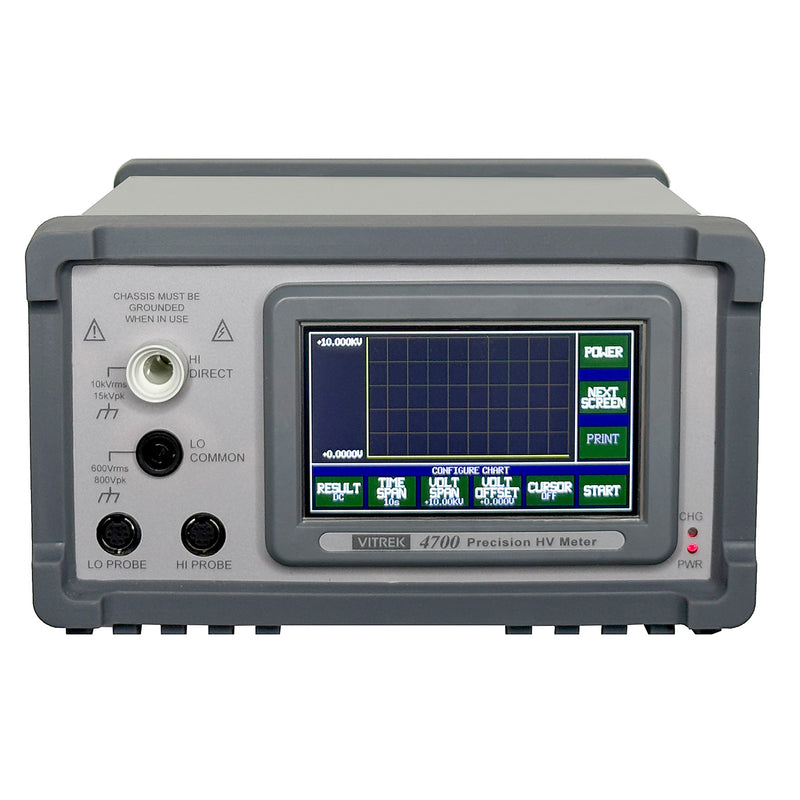

The Vitrek 4700 Precision High Voltage Meter offers the highest level of measurement accuracy in high-voltage measurement equipment. Its color touchscreen is surprisingly easy to use for setup and displaying testing results. Vitrek leverages DSP technology to provide outstanding AC & DC high voltage measurement accuracy, stability, repeatability, and resolution. The 4700 High Voltage Meter offers performance that rivals traditional high voltage reference dividers – yet unlike the tedious divider, the 4700 provides instant, direct high voltage measurements in a highly portable, compact, and rugged benchtop enclosure.

The high-voltage tester measures up to 10 kV DC or RMS AC directly. With available HV Smartprobes, the high-voltage measurement range can be extended to 35 kV, 70 kV, 100 kV, and 140 kV.

Features:

• Dual inputs allow Differential or Phase-to-Phase voltage measurement
• High-speed DSP provides up to 60 filtered readings per second
• True RMS AC measurement from 0.01 Hz to 600 Hz - covering VLF to aviation frequencies
• AC noise rejection 78 dB for rock-solid, six-digit DC Measurements
• Optional battery pack goes up to 11 hours between charges
• G Series - high input impedance probes for electrostatic applications
• CE mark Certified to EN61010
• 100 to 265 Vac, 45-450 Hz Operation
• Weight: 2.4 kg; 4 kg Shipping
• 218 mm (8.5”) wide x 130 mm (5”) high x 253 mm (10”) deep

Please see the Datasheet for complete details and specifications.
