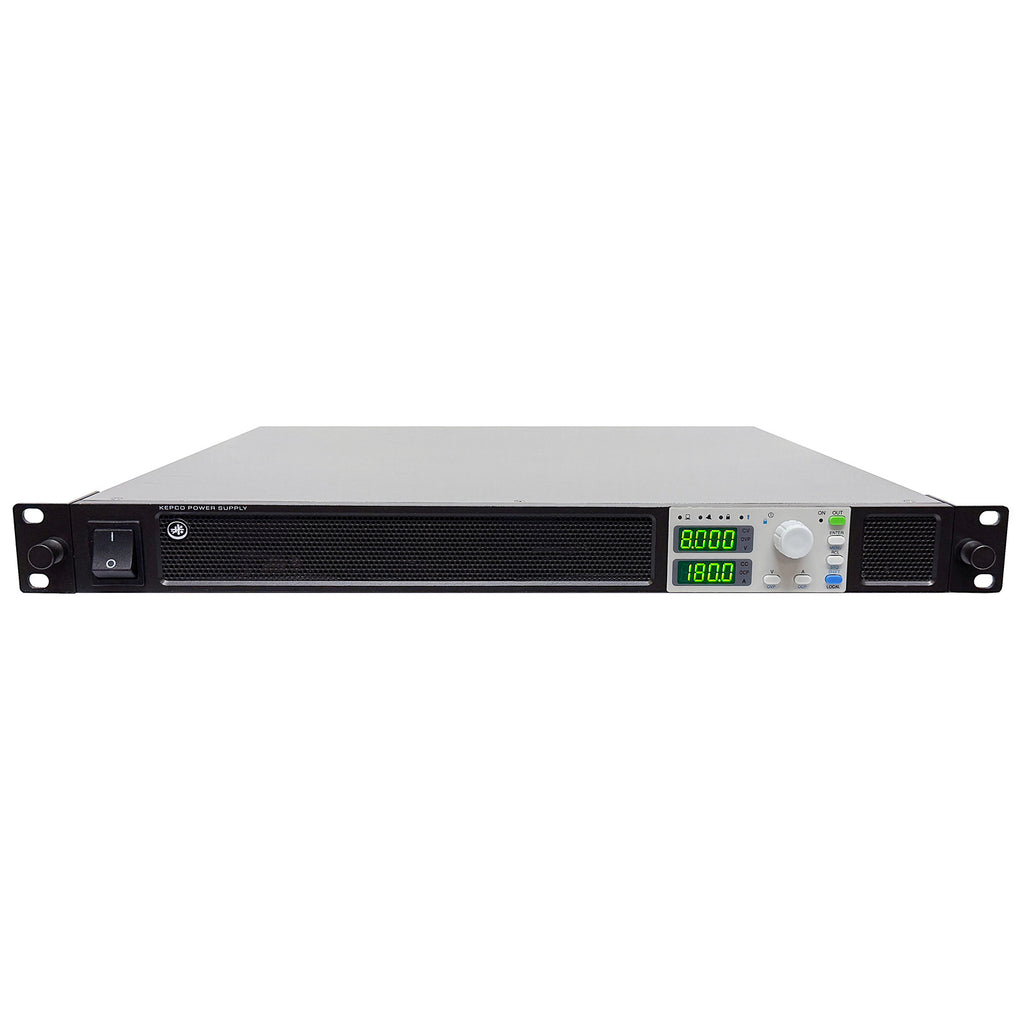

Kepco KLN 8-180 Programmable DC Power Supply, 0 to 8 V, 0 to 180 A

Kepco KLN 8-180 Programmable DC Power Supply, 0 to 8 V, 0 to 180 A

The Kepco KLN 8-180 is an automatic crossover, low-profile, high-performance, low-cost programmable power supply. The KLN Series offers stable DC power in a 1U high, full-rack package for 1500 W. Speed-controlled fans limit acoustic noise for bench-top applications when full power is not needed. Precise programming of voltage, current, and their limits may be achieved from the front panel, by analog means, or by RS-485 digital control

Features:

• DC Output Range: 0 to 8 Vdc; 0 to 180 A
• Ripple: Voltage 15 mVrms; Current 360 mArms
• Line Regulation: CV (0.05% +mV) 2.8; CC (0.1% +mA) 18.5
• Load Regulation: CV (0.05% +mV) 2.8; CC (0.1% +mA) 38
• Switch mode topology for cool, efficient operation

• Built-in RS-485
• 1U panel height at 1500 watts
• Front-to-back air flow allows full power operation without space between supplies (zero clearance)
• Wide-range AC input, 100 to 240 Vac, 50/60 Hz

Please see the Datasheet for complete details and specifications.
