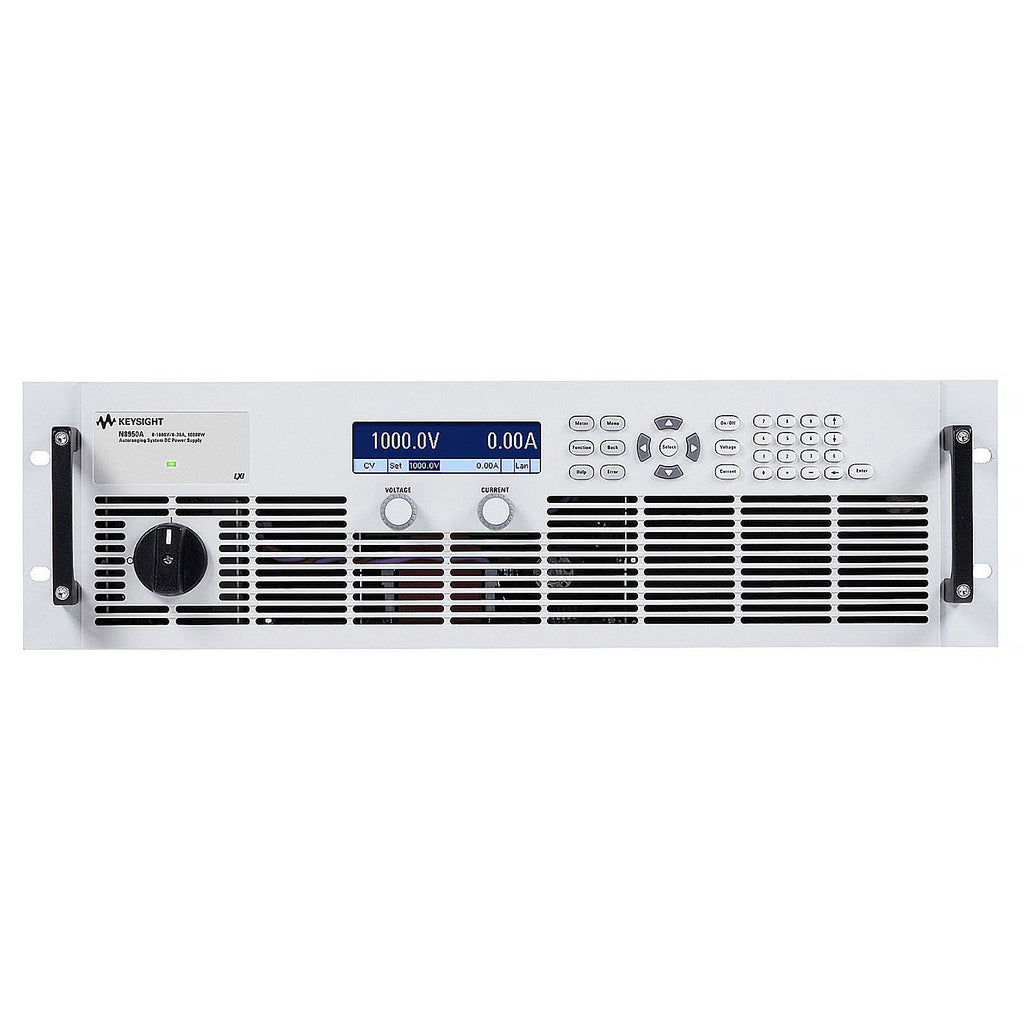

Keysight / Agilent N8950A Autoranging System DC Power Supply, 0 to 1000 Vdc, 0 to 30 A, 10000 W

Keysight / Agilent N8950A Autoranging System DC Power Supply, 0 to 1000 Vdc, 0 to 30 A, 10000 W

The N8950A is a 10 kW auto-ranging, single-output programmable DC power supply for ATE applications that require the right performance at the right price. The N8900 Series power supplies' auto-ranging output characteristic enables unprecedented flexibility by offering a wide range of voltage and current combinations at full power. Power supplies with rectangular, or traditional, output characteristics provide full power at only one voltage-current combination. Just one N8900 does the job of multiple power supplies. It's like having many power supplies in one!

The N8900 Series provides stable output power, built-in voltage and current measurements, and auto-ranging output voltage and current from 80 V to 15000 V and 10 A to 510 A. These supplies offer many system-ready features, such as multiple standard I/O interfaces that simplify and accelerate test-system development, and a compact 3U design that saves rack space. Suppose more power is required, easily parallel multiple N8900 units to create a single power supply with >100 kW of total output. The built-in master/slave control lets you program as if it's a single power supply; no need to program each supply individually.

Features:

• Output Ratings
  • Voltage: 1000 V
  • Current: 30 A
  • Power: 10000 W
• Programming accuracy
  • Voltage: 0.1% of full-scale
  • Current: 0.2% of full-scale
• Built-in voltage and current measurement
• High power density, 10 kW in only 3U (5.25" / 13.34 cm)
• Protection from over-voltage, over-current, and over-temperature
• LAN (LXI Core), USB, GPIB, and analog interfaces are all standard
• AC input Voltage range: 400 VAC ±10%, 45 to 65 Hz, 3-Phase

Please see the datasheet for complete details and specifications.
