Magna-Power TSD1000-45 DC Power Supply, 0 to 1000 V, 0 to 45 A, 45 kW, 208 Vac

Magna-Power TSD 1000-45/208 Programmable DC Power Supply, 0 to 1000 Vdc, 0 to 45 A

The Magna-Power TSD1000-45/208+HS 45 kW programmable DC power supply provides clean, reliable power for ATE, burn-in, magnet charging, OEM, and other test and measurement applications. It features high-accuracy voltage and current programming, class-leading line and load regulation performance, high 3Φ AC input power factor with in-rush limiting circuitry, and computer and user I/O isolated from the power supply output.

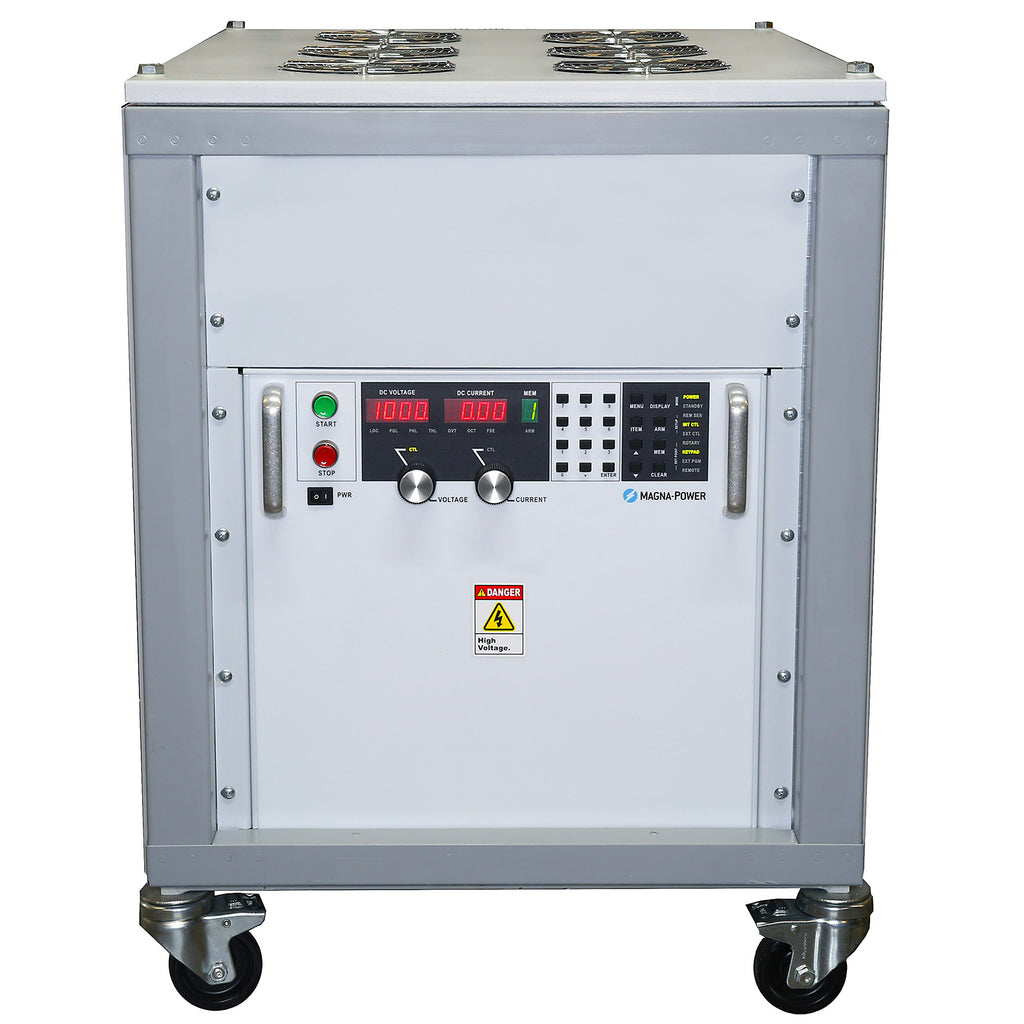

All TS Series power supplies come standard with isolated 37-pin external I/O, RS232, Remote Interface Software, and IVI drivers for integration into a variety of programming environments. Three front panel types are available for maximum application flexibility. This D Version front panel adds a 10-key digital front panel entry, memory sequencing, and modulation capabilities for non-linear output profile emulation.

Option HS is High Slew Rate Output (+HS)

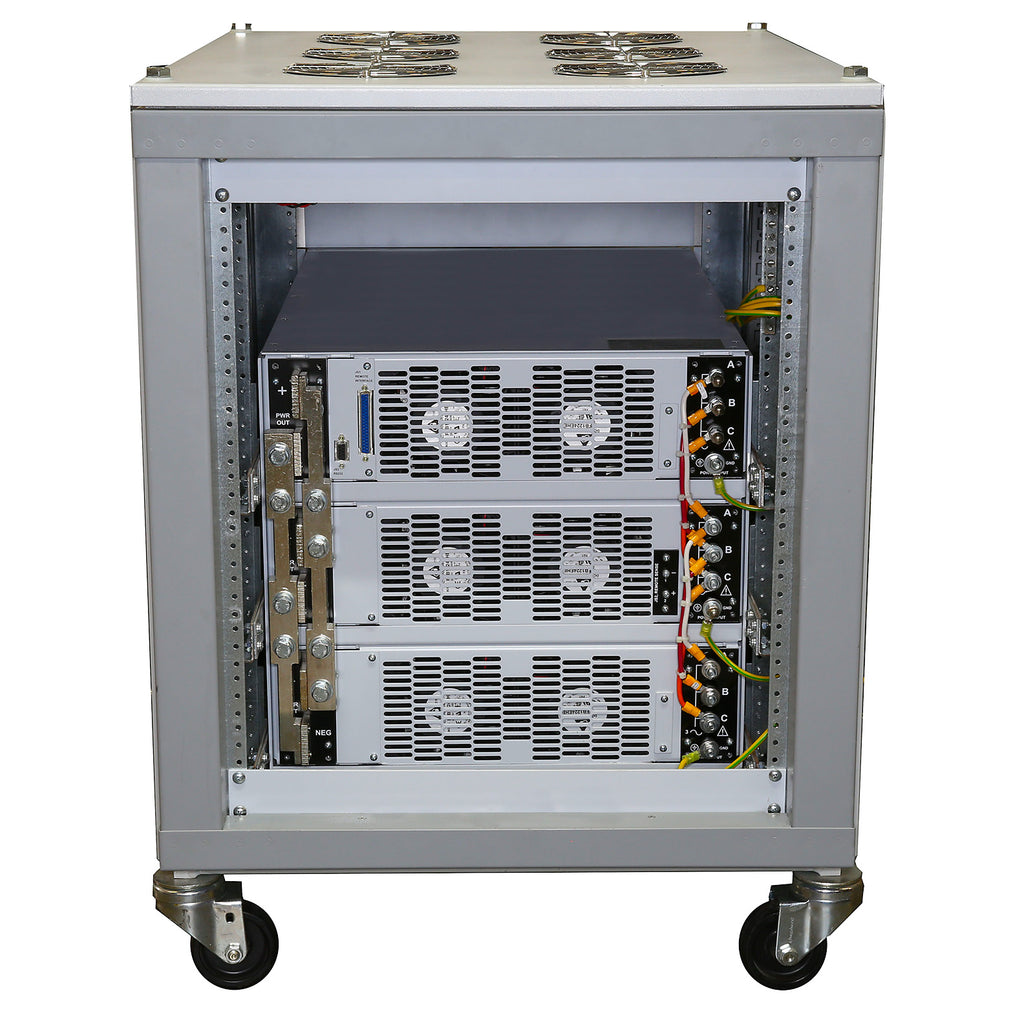

This unit is housed in a CAB1 option cabinet.

Features:

• Voltage: 0 to 1000 Vdc
• Current: 0 to 45 A
• Output Power: 45 kW
• Output ripple (rms): Voltage 350 mV
• Line Regulation Voltage mode: ±0.004% of full scale; Current mode: ±0.02% of full scale
• Load regulation: Voltage mode: ±0.01% of full scale; Current mode: ±0.04% of full scale
• SCPI Remote Programming API
• High Accuracy Measurements
• Master-Slave Functionality
• Remote Sensing
• 37-Pin External User I/O
• 0-10 V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• Interlock Shutdown Input
• Designed and manufactured in the USA
• Line Input Power: 3 Phase, 187-229 Vac, 159 A; 50-400 Hz (operating range 45 - 440 Hz)
• Weight: ~580 lbs; Size: 831 mm (32.01 in)H x 610 mm (24.0 in)W x 800 mm (31.5 in)D

Please see Datasheet for complete details and specifications.
