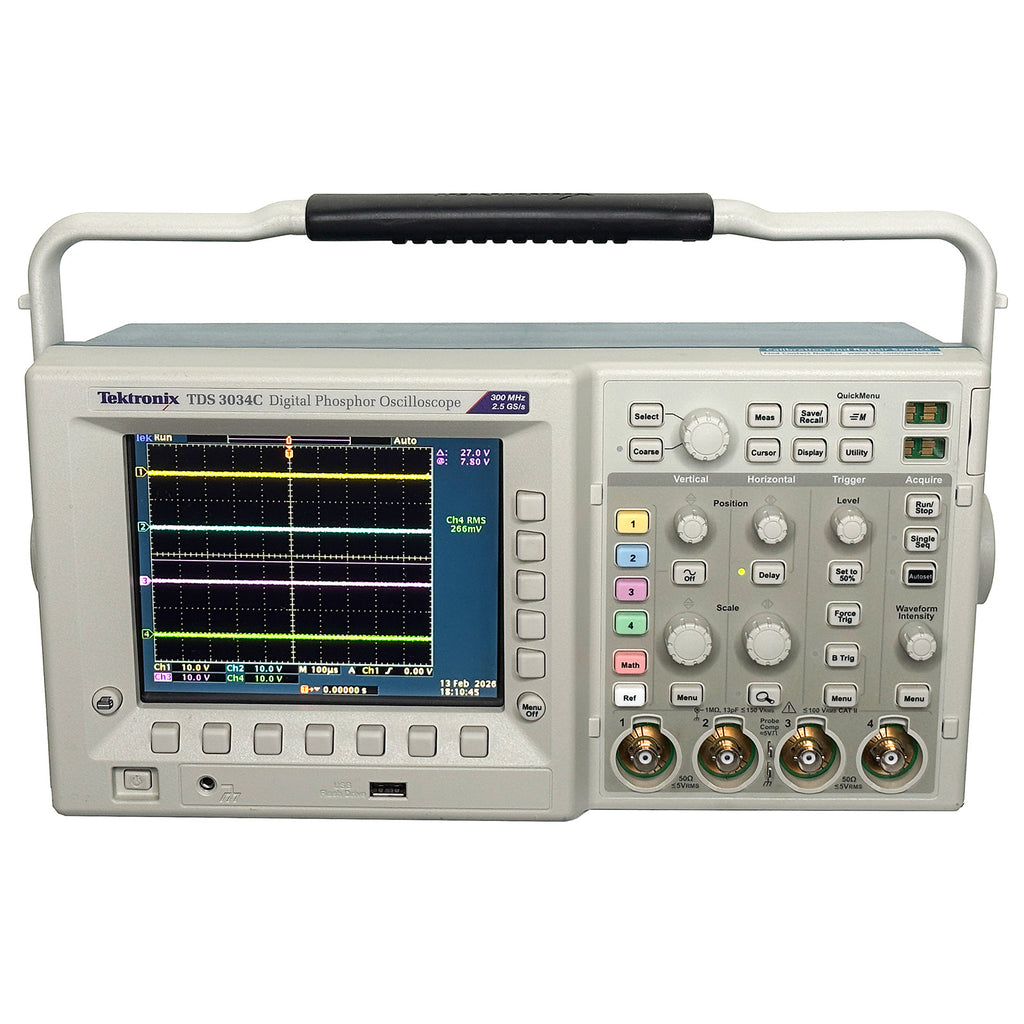

Tektronix TDS3034C Digital Phosphor Oscilloscope, 300 MHz, 4 Channel

Tektronix TDS3034C Digital Phosphor Oscilloscope, 300 MHz

The TDS3034C delivers the performance you need at a price you can afford. A Bandwidth range of 300 MHz, with up to 5 GS/s sample rates, provides an accurate representation of your signal.

The TDS3000C Series offers fast waveform capture rates on a continuous basis that save you time by quickly revealing the nature of faults, so advanced triggers can be applied to isolate them.

Real-time intensity grading highlights the details about the history of a signal's activity, making it easier to understand the characteristics of the waveforms you've captured. Unlike other comparable oscilloscopes, the history remains even after the acquisition has been stopped.

The TDS3000C Series combines unique digital real-time (DRT) sampling technology with sin(x)/x interpolation, enabling you to accurately characterize a wide range of signal types across all channels simultaneously. With the TDS3000C Series, there is no change in sampling rate when additional channels are turned on, unlike other comparable oscilloscopes. This sampling technology enables capturing high-frequency information, such as glitches and edge anomalies, that elude other oscilloscopes in its class, while sin(x)/x interpolation ensures precise reconstruction of each waveform.

Features:

• 300 MHz Bandwidth
• Sample rates up to 5 GS/s real time on all channels
• 4 Channels
• 10k record length on all channels
• 3,600 wfms/s continuous waveform capture rate
• 6.5 in. (165.1 mm) liquid-crystal TFT color display
• Suite of advanced triggers
• Front-panel USB host port for easy storage and transfer of measurement data
• 25 automatic measurements
• FFT standard
• Multiple language user interface
• WaveAlert^® automatic waveform anomaly detection
• TekProbe^® interface supports active, differential, and current probes for automatic scaling and units

• Optional Modules for RS-232, GPIB, LAN, or VGA Communication Ports

• Optional internal battery operation provides up to three hours without
  line power
• Lightweight design - 5.9 in. (149 mm), 7 lb. (3.2 kg). Shipping weight: 12 lb

Please see the Datasheet for complete details and specifications.
