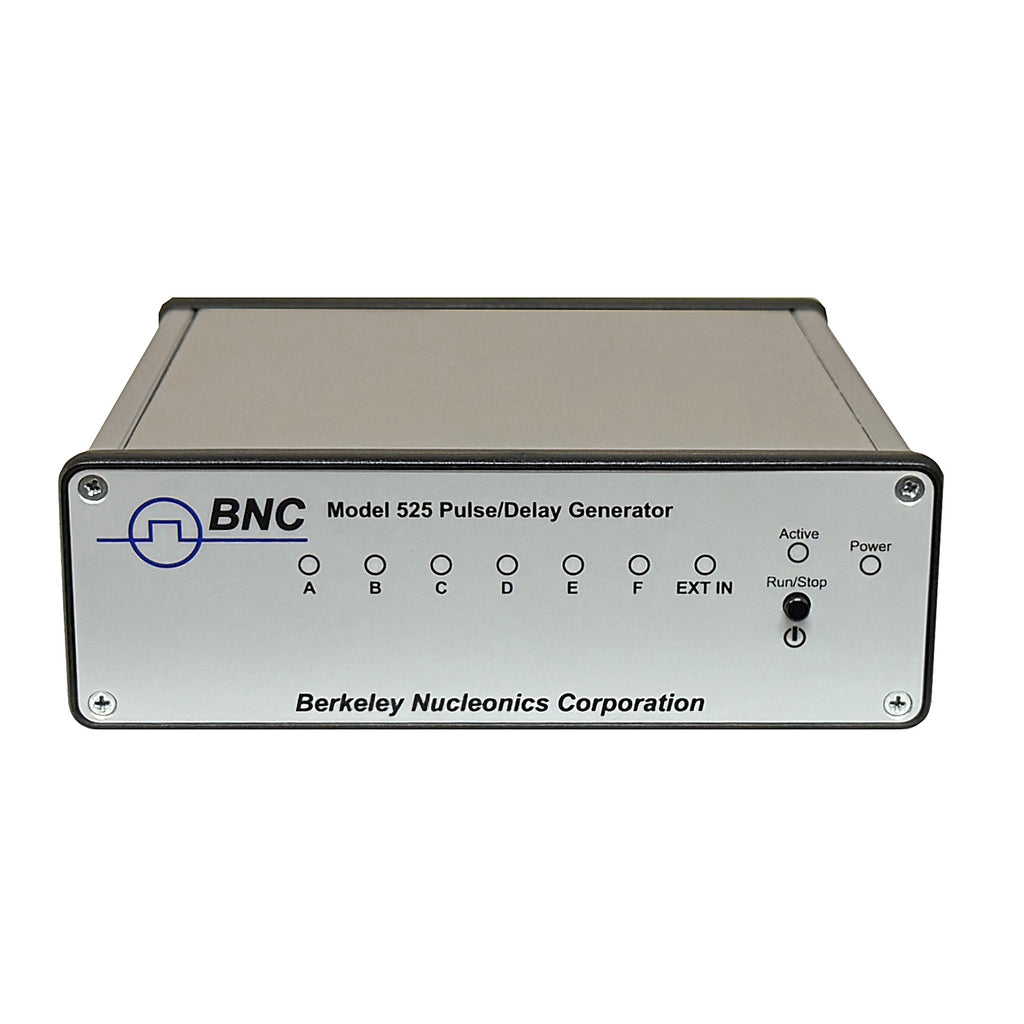

Berkeley Nucleonics 525 Six Channel Digital / Pulse Delay Generator

Berkeley Nucleonics Six-Channel Digital / Pulse Delay Generator

The 525 Digital Delay/Pulse Generator provides users with a performance-rich benchtop delay generator featuring numerous output options in a compact package. The interface is USB-only, which eliminates bulky front panel components and reduces the potential for mechanical problems. The timing and triggering flexibility is outstanding, with 20 MHz repetition rates, 2 ns timing resolution, and <50 ps RMS channel jitter, as well as internal or external triggering options. Outputs can be selected for each channel, allowing users to trigger, gate, or pulse various devices in a research project with different requirements. Single Pulse, Continuous, Burst, Duty Cycle, and Cycle Counting are all selectable options for each channel. Wide pulses are also possible, with a width range of 10 ns – 1000 s and a delay from trigger range up to 1000 s. Trigger externally with signals up to 30 V peak and widths as low as 20 ns on the rising or falling edge.

Features:

• Number of Channels: 6 Independent Outputs
• Resolution: 4 ns
• Width / Delay Accuracy: 10 ns + 0.0001 x settings
• Channel to Channel Jitter: < 250 ps RMS
• Output Pulse Amplitude: TTL
• Power Source: Standard USB

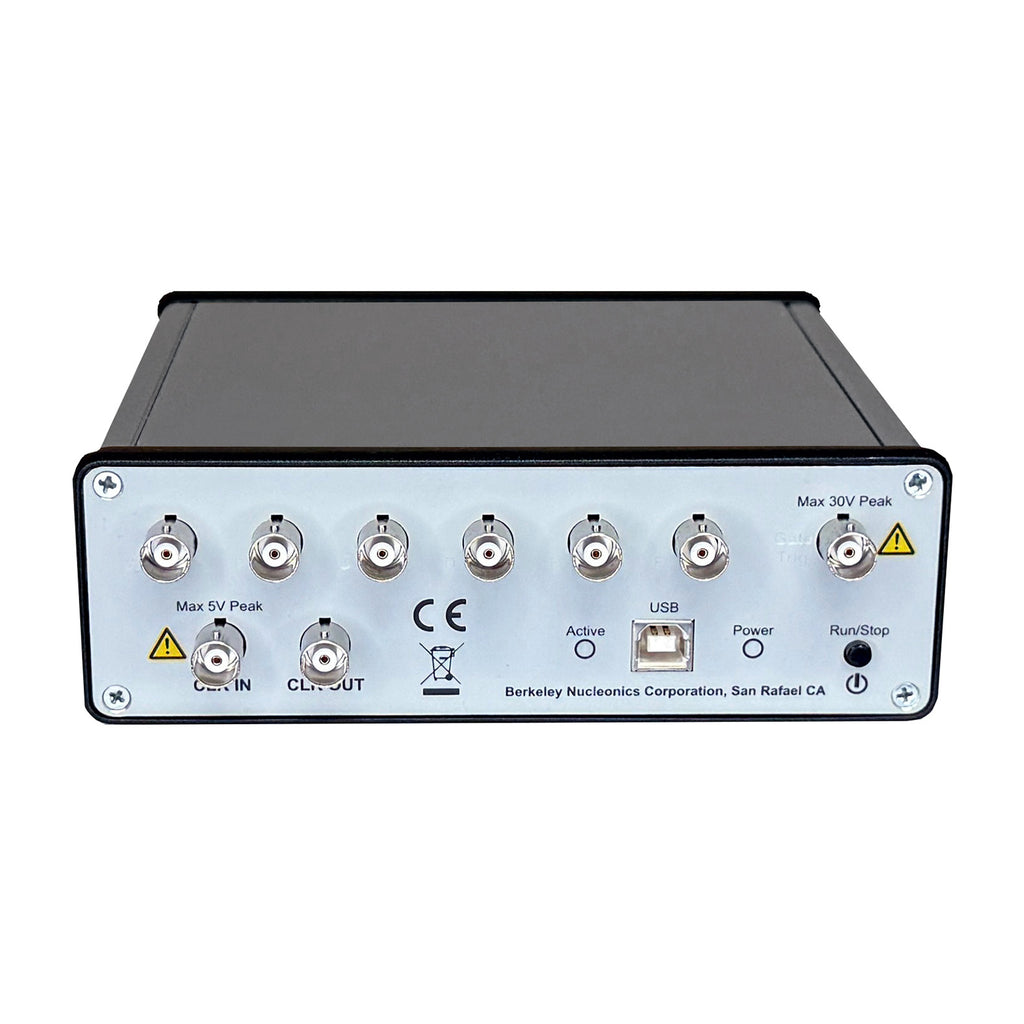

• Output connectors: BNC(f)

• Weight: 1 lb; Size: 7.125 x 5.1 x 1.5 inches (18.1 x 13 x 3.8 cm)
