The AG1017L is a class A power amplifier. The AG1017L is a robust source of RF power for ultrasonic, laser modulation, RFI/EMI, plasma generation, general laboratory, and general industrial applications.  Featuring leading-edge solid-state design for all RF amplifier stages and a built-in DDS signal source, it provides everything for a complete and reliable, controlled RF power delivery system. It reflects the T&C's ongoing commitment to provide RF power products of the highest quality, incorporating the current requirements for complete remote control and data acquisition features.

Features:

• Frequency Range: 10 kHz to 15 MHz
• 500 W output power
• 55 dB gain (nominal)
• 50 Ohm impedance
• Linear output with low harmonic distortion
• Interfaces: Front Panel Display, Remote (Analog/ Digital) Interface, RS-232, GUI software

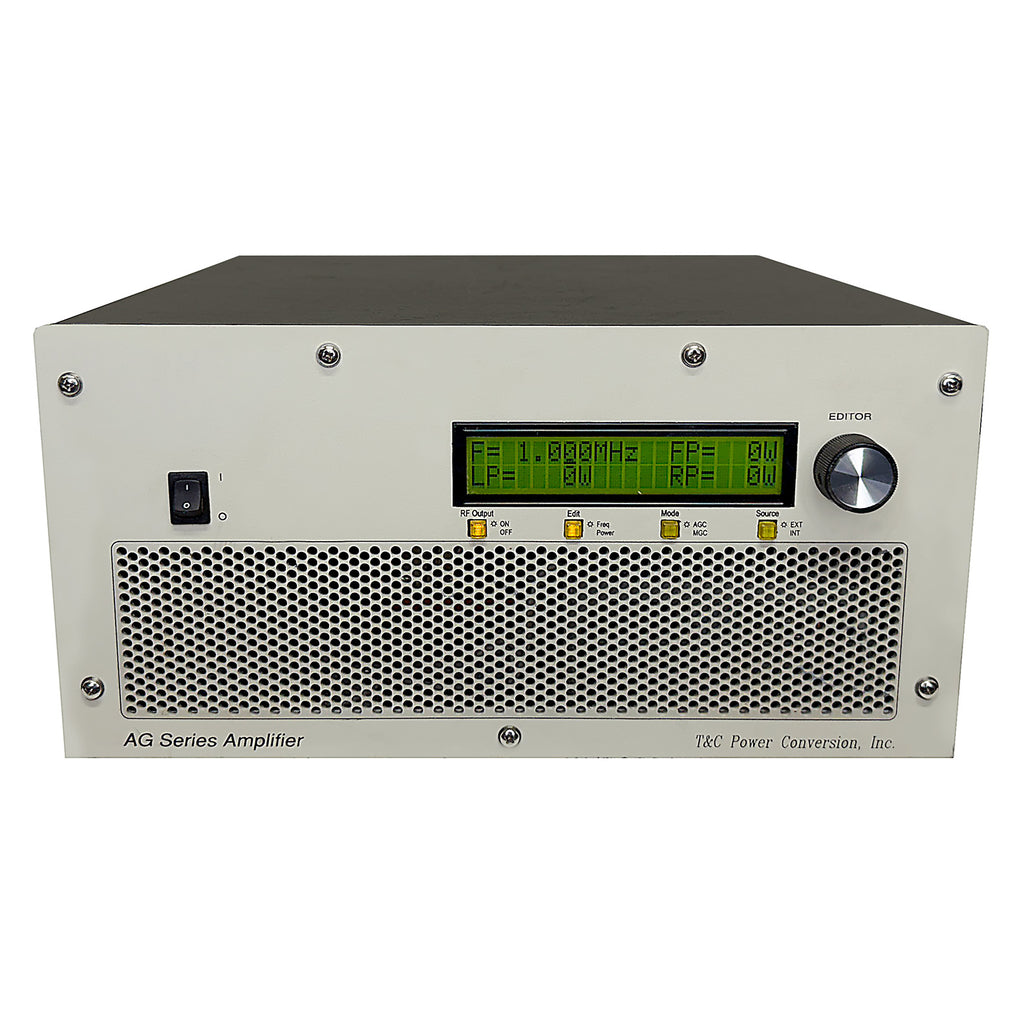

• LCD display: Forward / Reflected / Load Power, Frequency, Internal Temperature, & More
• Operation: AGC and MGC Power Leveling, Pulse
• Operation, Sweep, and Ramping Profiles

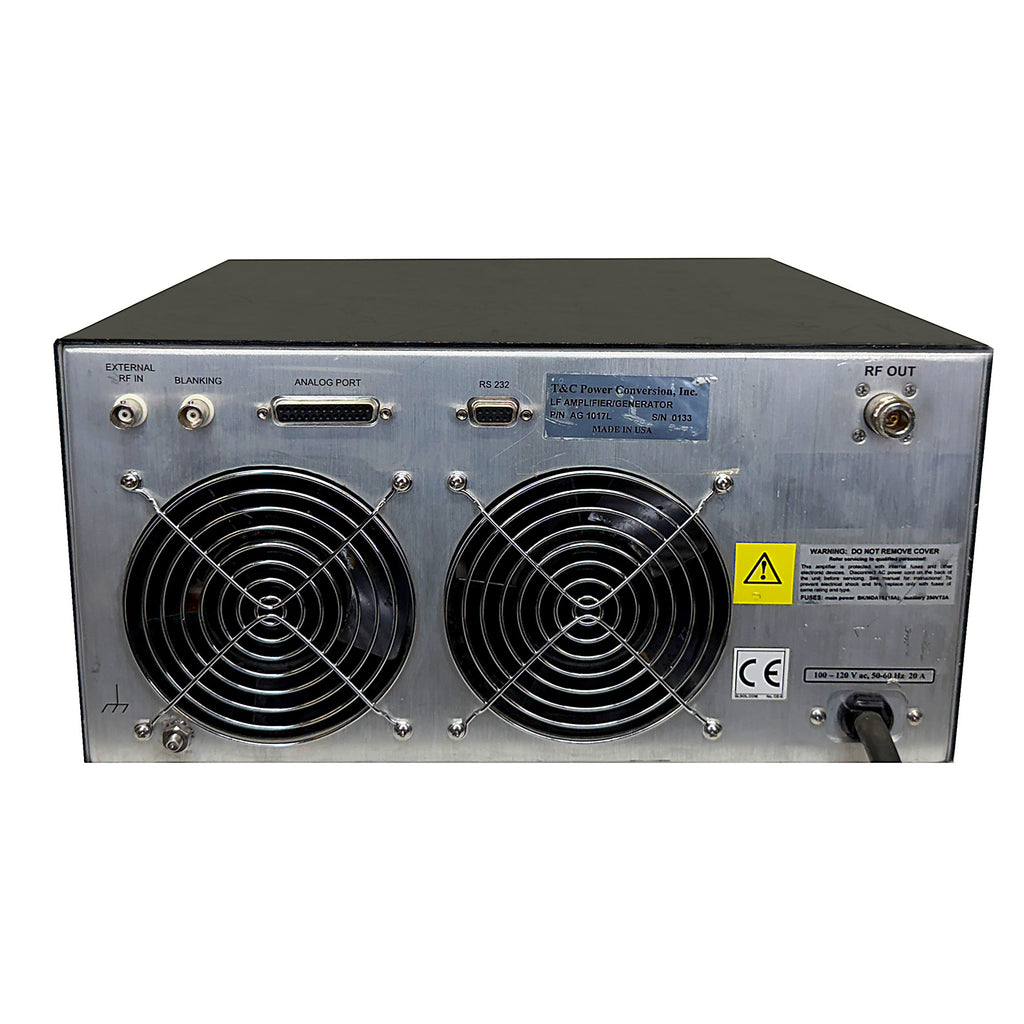

• External RF BNC input for amplifier operation
• Air cooled

• 100 to 120 Vac, ±10%, 50 to 60 Hz or 200 to 240 Vac, ±10% 50 to 60 Hz operation
• Weight: 55 lbs. (25 kg); Size: H 7” x W 14¼” x L 15¼”

Please see the Datasheet for complete details and specifications.
