Description

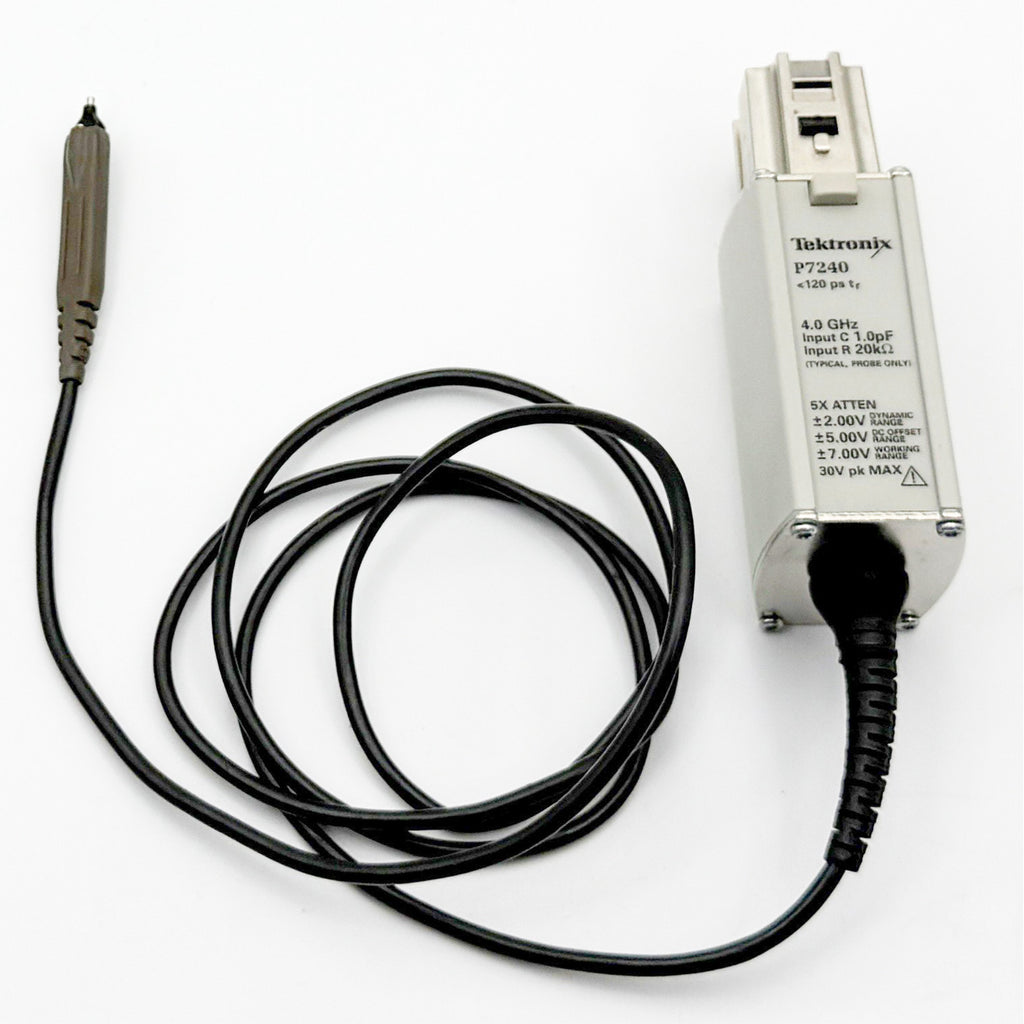

Tektronix P7240 Active Probe, 4.0 GHz
The P7240 4 GHz, 5X active FET probe provides truer signal reproduction and fidelity for high-frequency measurements. The probe has a low input capacitance and high input resistance, which minimize circuit loading over a wide bandwidth range.
Features:
- Bandwidth: dc to 4.0 GHz
- <120 ps Rise Time
- <1 pF input capacitance
- Small form factor probe head
- Direct access to SMDs
- Supports MSO/DPO/DSA70000 series oscilloscopes
- TekConnect™ Interface
- Shipping weight: 4 lb
Please see the Datasheet for complete details and specifications.
