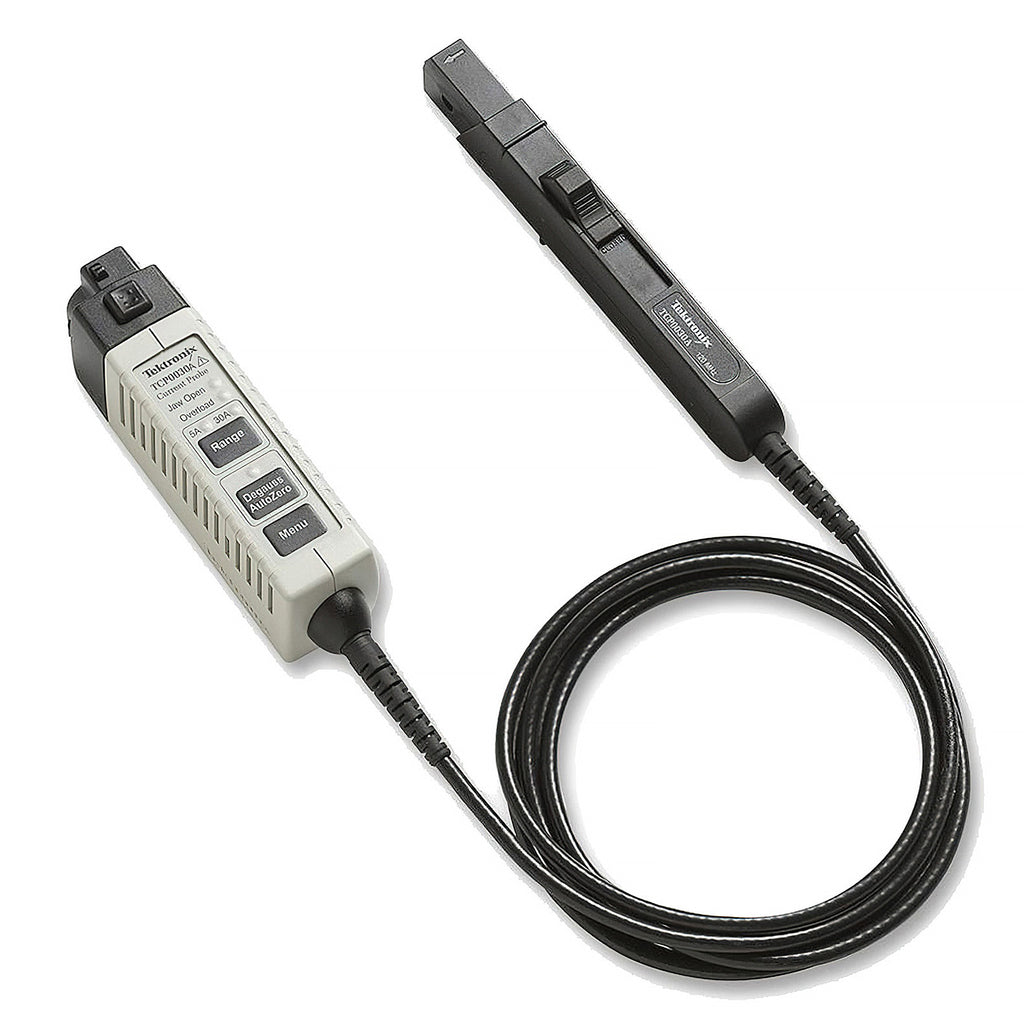

Tektronix TCP0030A Current Probe, AC/DC, 30 A, 120 MHz
The TCP0030A is a high-performance, easy-to-use AC/DC Current Probe designed for use and direct connection (without the need of an additional power supply) to the TekVPI probe interface. This AC/DC current measurement probe provides greater than 120 MHz of bandwidth with selectable 5 A and 30 A measurement ranges. It also provides exceptional low-current measurement capability and accuracy to current levels as low as 1 mA, important for meeting today's challenging current measurement needs.
Features:
- DC to >120 MHz Bandwidth
- 30 A RMS Maximum Current Capability
- 50 A Peak Pulse Current Capability
- High accuracy with typically less than 1% DC gain error
- Accurately measures current levels as low as 1 mA
- Easy to-use and accurate AC/DC current measurements
- Intelligent communication with TekVPI oscilloscopes
- Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual setup is not required. Hand calculation from volts to amps is unnecessary
- Push button degauss and Autozero functionality
- Probe status and diagnostic indicator LEDs
- Remote GPIB/USB probe control
- Split-core construction allows easy circuit connection
- High accuracy with typically less than 1% DC gain error
- Low noise and DC drift
- 3rd party safety certification
- Clips on conductors up to 0.15 inch diameter
- Cable length: 2 m
- Shipping weight: 5 lb
Please see Datasheet for complete details and specifications.
