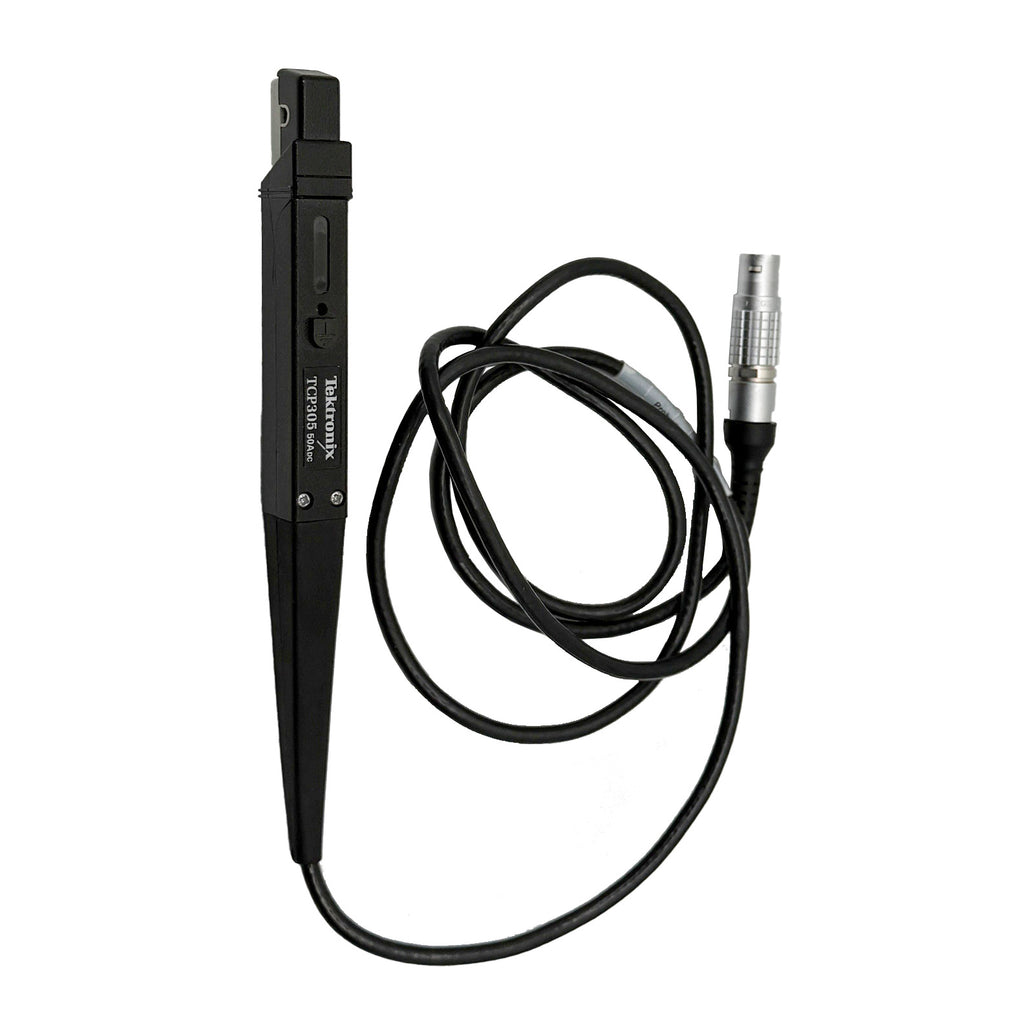

Tektronix TCP305 AC/DC Current Probe, DC to 50 MHz, 50 A

Tektronix TCP305 AC/DC Current Probe, DC to 50 MHz, 50 A

The TCP305 enables users to make direct readout DC and AC current measurements, resulting in accurately displayed and recorded measurements. The TCP305A is a general-purpose probe for displaying and measuring current in electronic circuits.

The TCP305 current probes is designed to work with the TCPA300 Current Probe Amplifier.

Features:

• Requires TCPA300 amplifier
• dc to 50 MHz
• Current (DC continuous): 50 A
• Lowest Measurable Current: 5 mA
• Probe Jaw Size (Max conductor size): 3.8 mm (0.15 inches)
• Automatic scaling and units - Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
• AC/DC input coupling
• Low insertion impedance reduces device under test loading
• Split-core construction allows easy circuit connection
• Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50 Ω, noncompatible probe type
• Cable length: 1.5 m
• Shipping weight: 4 lb

Please see Datasheet for complete details and specifications.
