Description

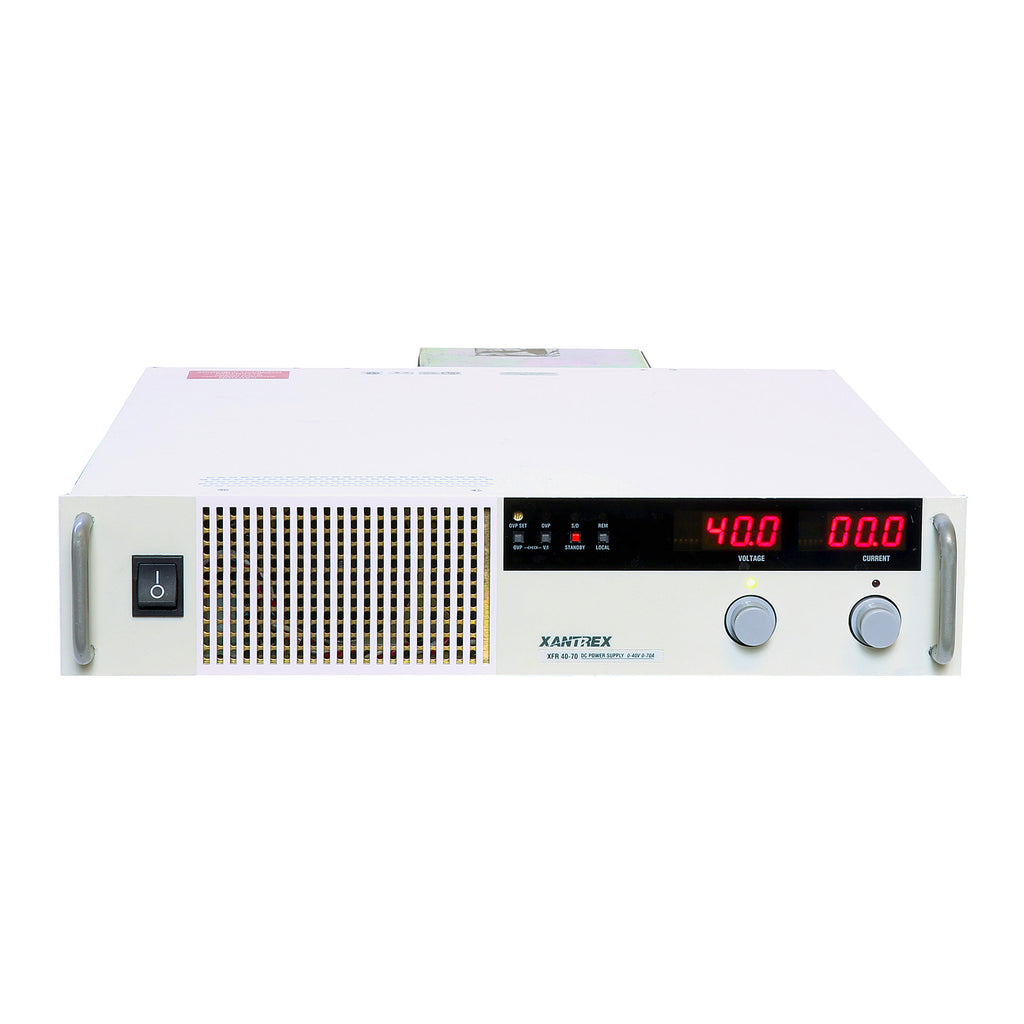

Ametek / Sorensen / Xantrex XFR 40-70 Programmable DC Power Supply, 0 to 40 Vdc, 0 to 70 A
The XFR40-70 power supply provides low-noise, precisely regulated, variable DC output at 2800 Watts of output power. Overvoltage protection (OVP) and thermal shutdown are standard. Front panel controls and indicators are extensive.
Optional GPIB adds GPIB / IEEE 488.1 Interface.
Features:
- Voltage: 0 to 40 Vdc
- Current: 0 to 70 A
- Output Power: 2800 W
- Output noise (0-20 MHz): 100 mVp-p
- Output ripple (rms): Voltage 15 mV, Current 300 mA
- Load regulation: Voltage (0.02% of Vmax + 5 mV) 11.6 mV, Current (0.02% of Imax + 5 mA) 22 mA
- 190-264 Vac; 47-63 Hz, 1 Phase operation
- Weight: 33 lb; Size: 88.9 mm (3.5 in)H x 429.4 mm (19.0 in)W x 534 mm (21.0 in)D
Please see the datasheet for complete details and specifications.
