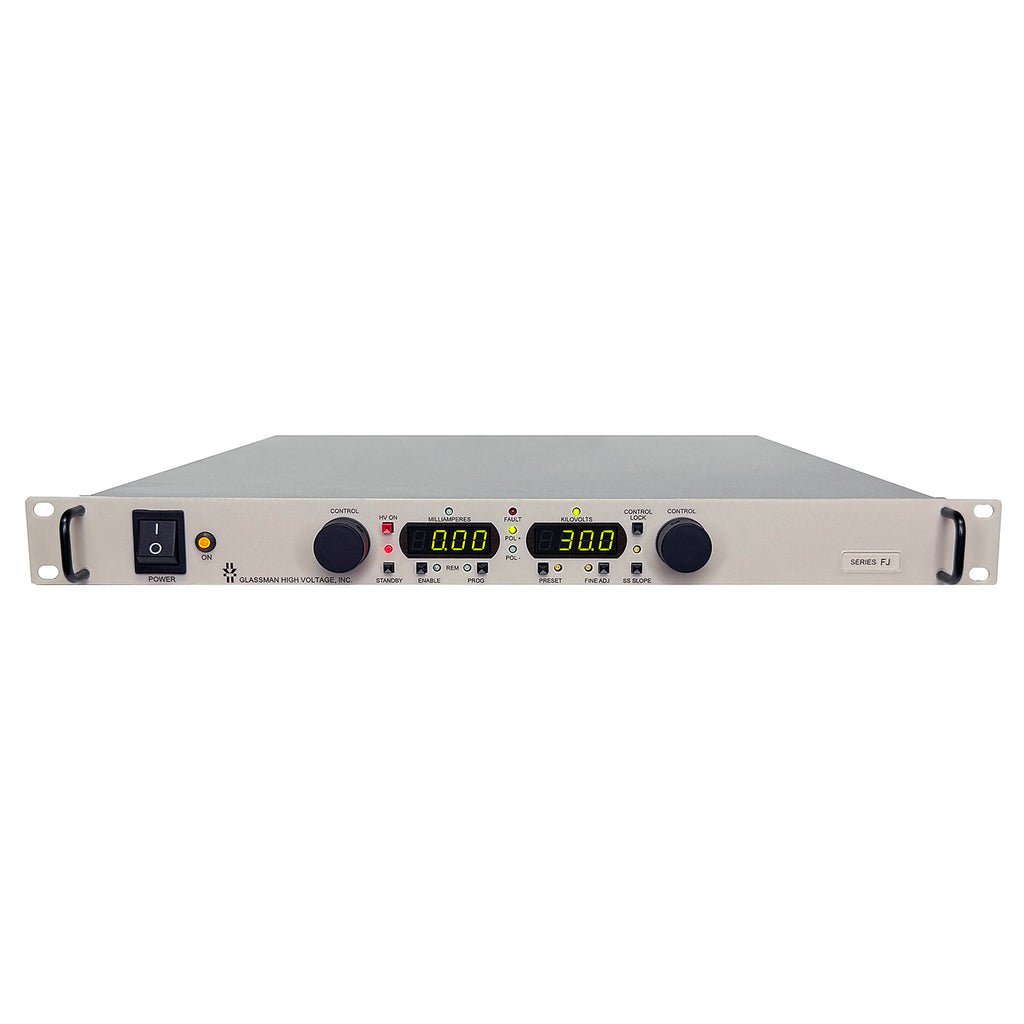

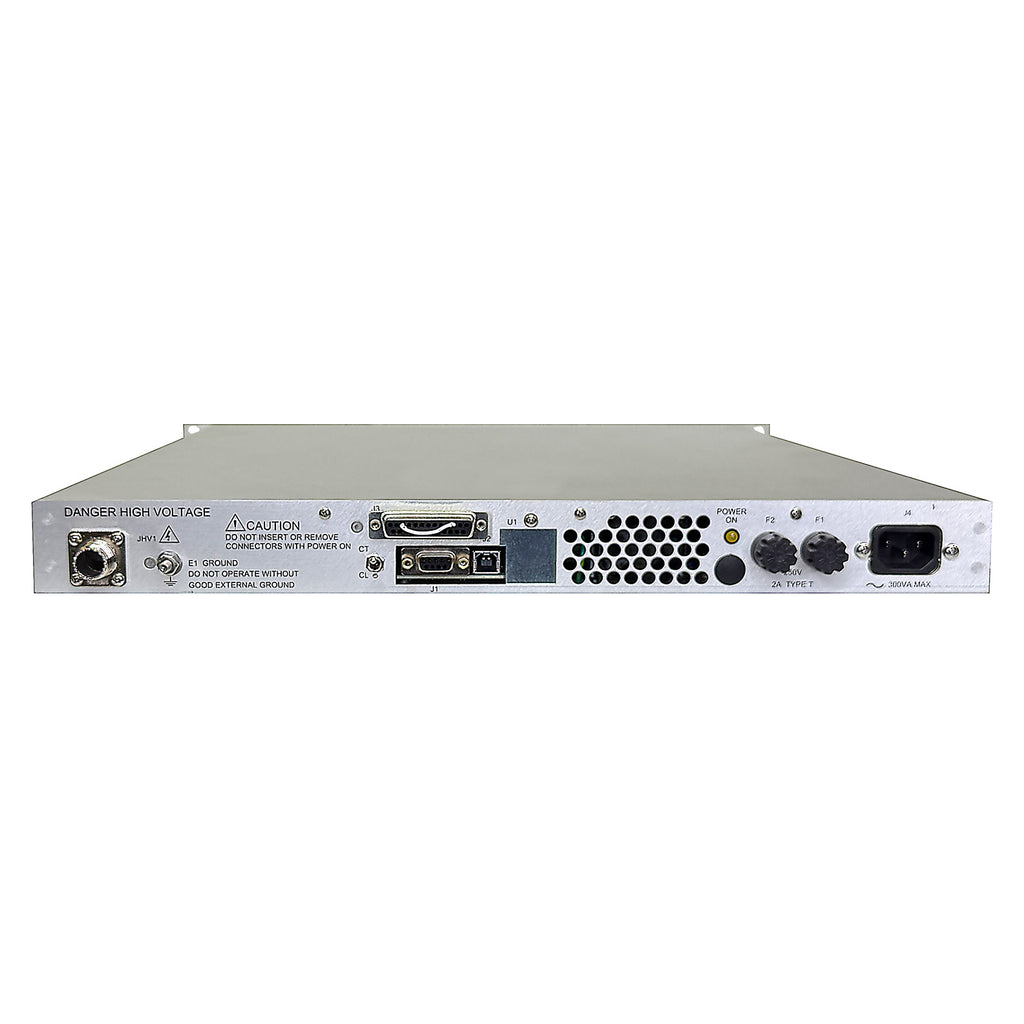

XP Power / Glassman FJ30P04.0-22 High Voltage DC Power Supply, 0 to +30 kVdc, 0 to 4 mA

XP Power / Glassman FJ30P04.0-22 High Voltage DC Power Supply, 0 to +30 kVdc, 0 to 4 mA

The 120 W XP Power / Glassman FJ30P04.0-22 is a high quality, high performance, high reliability, and high stability, high-voltage power supply with low ripple and noise. Air insulation reduces weight and facilitates a lower cost of ownership.

The FJ series offers a light form factor for extremely simple integration into a new system or tool. The FJ series facilitates a low cost of ownership with the excellence and technical support of XP Power engineering.

Features:

• Output: 0 to +30 kV, 0 to 4 mA
• 120 Watts
• 0 to 100% programmable voltage and current
• Local, analog and RS232/USB digital control

• Output voltage and current regulated
• Automatic crossover between constant kV/constant mA operation
• Voltage and current monitor outputs
• Operating temperature: -20°C to +40°C, no derating
• Short circuit, arc quench, arc count, overload, and thermal protection
• Efficiency >85%
• Low ripple <0.02% RMS of rated voltage at full load
• 198 to 264 Vac; 48 to 63 Hz, single-phase operation
• Weight: 5.4 kg (12 lbs); Size: 43.6 mm (1.72 in)H x 482.6 mm (19 in)W x 508 mm (20 in)D 1U 19” rack mount

Please see the Datasheet for complete details and specifications.
