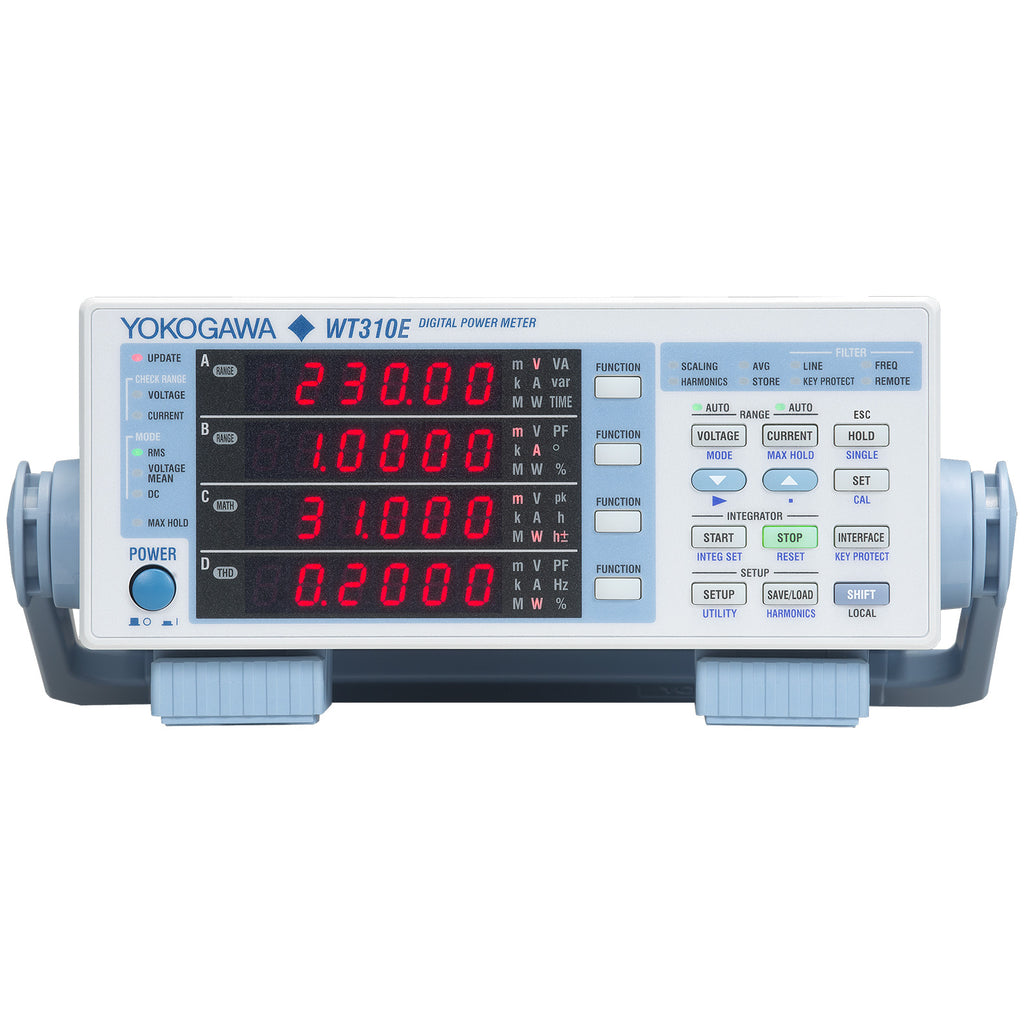

Yokogawa WT310E Digital Power Meter, USB, GPIB

Yokogawa WT310E Digital Power Meter, USB, GPIB

The WT310E can measure all DC and AC parameters. It can also measure harmonics and perform integration simultaneously without changing the measurement mode. The WTViewerPlus software is used to monitor, display, and save all measurement items of up to 200 parameters.

The WT310E provides a basic power accuracy of ±0.15% (50/60 Hz) on all measurement ranges. It is the most accurate power meter in the compact category. The WT310E covers broad ranges of current input from a few mA up to 20 A rms. It can measure waveforms which include both AC and DC. Users can use it from the low currents of standby power to the high currents of induction cooking.

The WT310E power meter is easy to use, cost-effective, and accurate for diverse applications such as the testing of electric devices, the development and evaluation of home appliances and induction cookers, battery and DC-driven device testing, and conformance tests on uninterruptible power supplies. The exceptional low power performance of the WT310E, combined with power consumption software, enables users to easily test to Energy Star, SPEC, and standby power standards.

Features:

• Voltage: Crest factor 3: 15 V/30 V/60 V/150 V/300 V/600 V; Crest factor 6 or 6A: 7.5 V/15 V/30 V/75 V/150 V/300 V
• Current Ranges: Crest factor 3- 5 mA/10 mA/20 mA/50 mA/100 mA/200 mA/0.5 A/1 A/2 A/5 A/ 10 A/20 A; Crest factor 6 or 6A- 2.5 mA/5 mA/10 mA/25 mA/50 mA/100 mA/ 0.25 A/0.5 A/1 A/2.5 A/5 A/10 A
• Frequency Range: DC, 0.1 Hz to 100 kHz
• Sampling Rate: Approximately 100 kS/s
• Basic power measurement accuracy (50/60 Hz): 0.1% of reading + 0.05% of range
• Input: One element, Single-phase, two-wire (1P2W)
• Simultaneous measurement of all parameters
• MAX hold function
• Line filter and frequency filter capability
• Integration measurement auto-ranging function

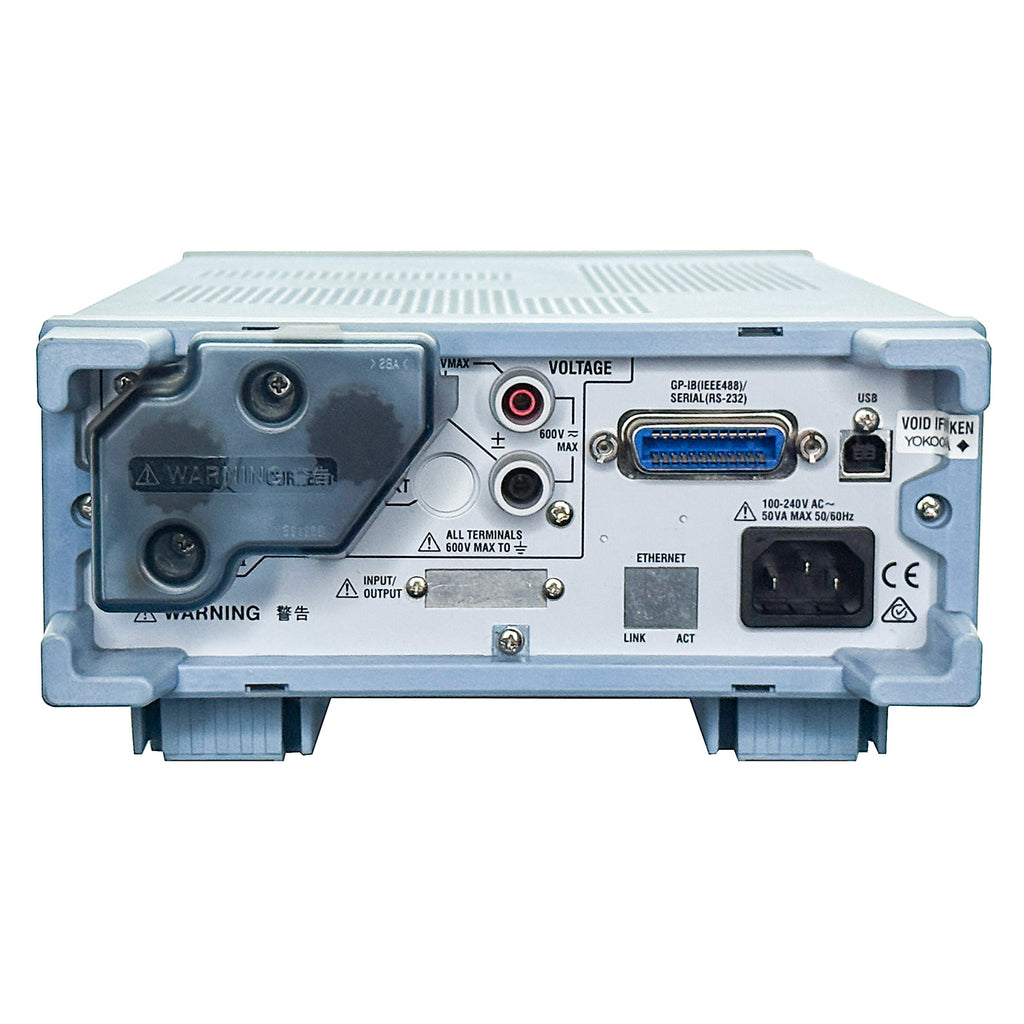

• Interfaces: USB, GPIB or RS-232 (selectable)

Please see the Datasheet for complete details and specifications.
