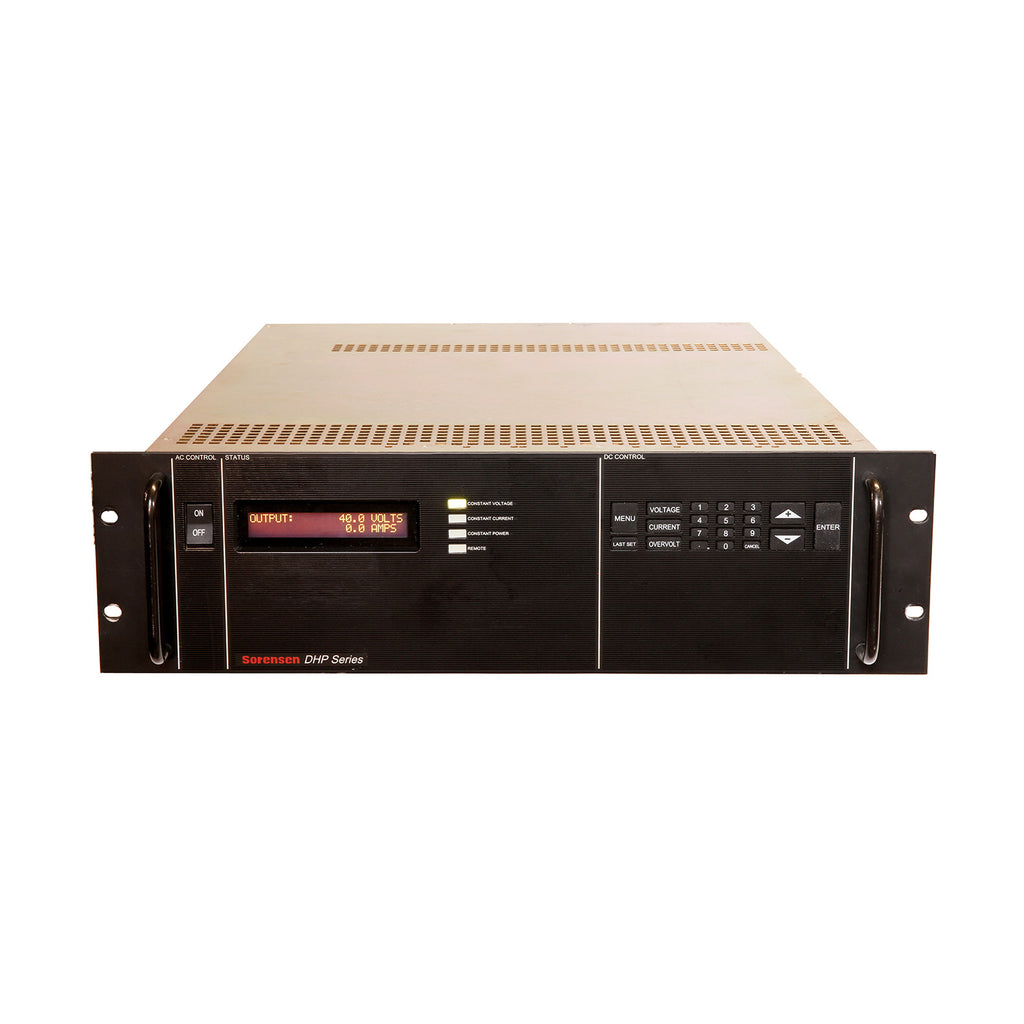

Ametek / Sorensen DHP 40-166 M9D Programmable DC Power Supply, 0 to 40 Vdc, 0 to 166 A, with GPIB

Ametek MPN: DHP 40-166 M9D
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$1,695.00 USD
Stock:
Available - Please contact our office at 1-800-366-5240 for update.

Description

Ametek / Sorensen DHP 40-166 M9D Programmable DC Power Supply, 0 to 40 Vdc, 0 to 166 A, with GPIB

The Sorensen DHP Series provides models ranging in output power from 5 kW to 20 kW in a single chassis. Programmable output voltages range from 5V to 50 VDC, delivering up to 3,000 amperes. This family has two operational modes, constant-voltage and constant-current.

The DHP Series uses control technology permits up to nine (9) steps per sequence with a maximum sequence duration of up to 27.75 hours.

This family has standard analog and a variety of combinations of IEEE-488.2, RS-232 and/or isolated analog input control interface options.

Option M9D = Internal IEEE-488.2 Interface
Option M17 = Down programming option for ≥80V models

Features:

  • Output: 0 to 40 V, 0 to 166 A
  • Output Power: 6.64 kW
  • Unique Controls and Commands:
    • Power-Off Memory: Enabling the input power and pushing the LAST SET button will restore the supply settings
    • External Shutdown: An external shut down to inhibit the output
    • Up/down arrows control voltages, step changes and current
  • Digital Displays:
    • Power supply rating
    • Output power, voltage and current
    • All power, voltage and current set points and limits
    • Present and highest AC input voltage
    • Present and highest air inlet temperature
    • Power and auto-step sequence settings
    • Calibration set-up
    • Remote operation set-up
    • Diagnostics fault status summary
  • Protection and Safety
    • Safe Power-Up: In the local mode, the output is disabled for additional safety at power up
    • Front Panel Lockout: Most front panel controls are disabled when operated remotely
    • Overvoltage, over temperature, surge limit, soft start, brown out and short circuit protection
  • 190-253 VAC, 47-63 Hz, 3 Phase, 3 wire plus ground
  • Weight: 45 lb; Size: 133 mm (5.25 in)H x 482 mm (19.0 in)W x 558 mm (22.0 in)D

Please see Datasheet for complete details and specifications.
