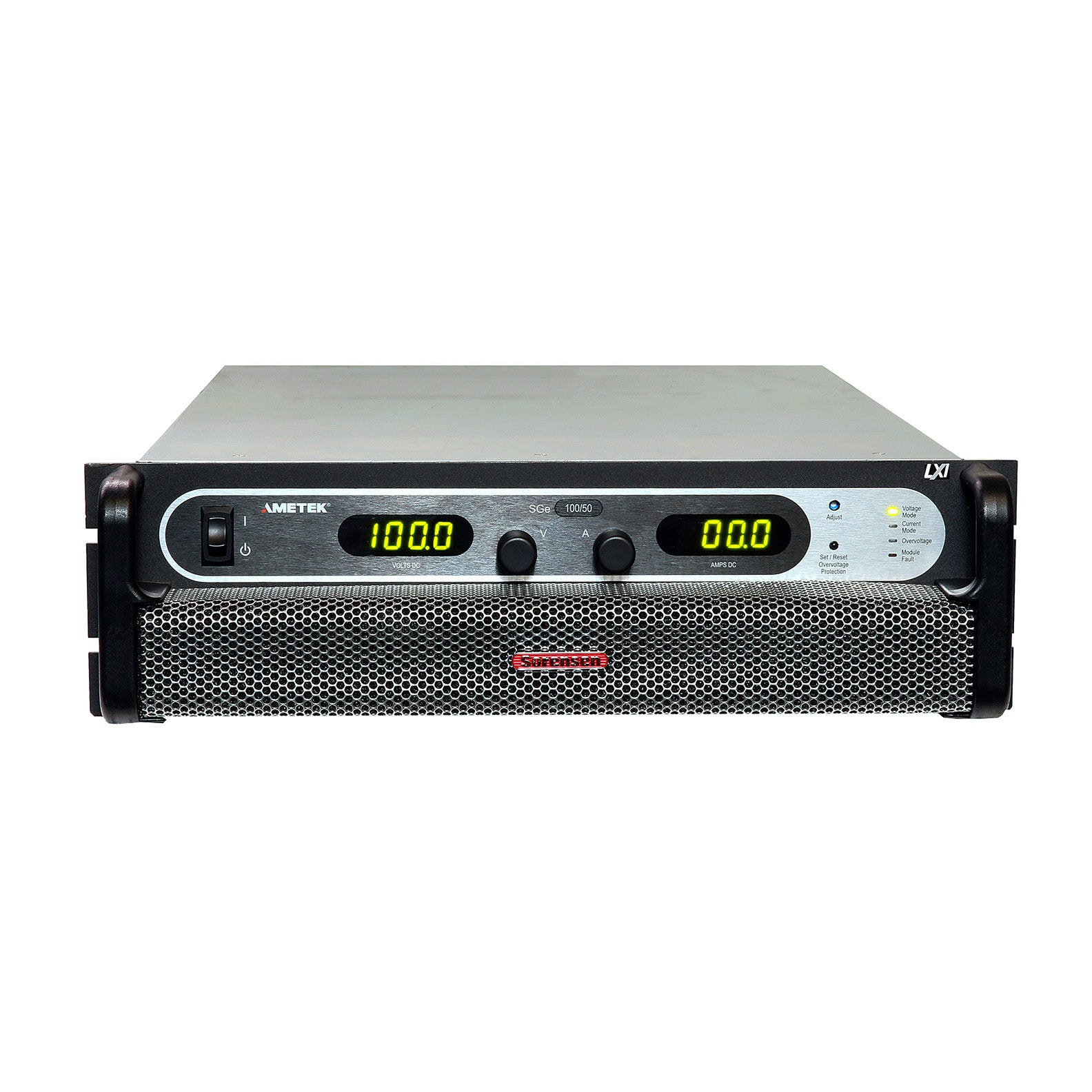

Ametek / Sorensen SGE100X50C-1CAA Programmable Precision High Power DC Power Supply, 0 to 100 Vdc, 0 to 50 A

Ametek MPN: SGE 100X50C-1CAA

Sale price$2,695.00 USD
In stock - Ships in 1 to 2 Business Days


Ametek / Sorensen SGE100X50C-1CAA Programmable Precision High Power DC Power Supply, 0 to 100 Vdc, 0 to 50 A

The SGe is an economical, FET based, high switching speed, programmable, dc power supply alternative to SCR and IGBT based dc supplies.

Most topologies use either a MosFET or IGBT approach within their power stage to execute their power conversion topology. At the same time end users value low output ripple and noise in conjunction with achieving high slew rates. Both IGBT and SCR based designs typically run at much lower switching speeds requiring a larger LC output filter design for similar performance or require degrading ripple and noise performance in order to maintain competitive power densities. The filter design in this case may be balanced to trade off performance of response time with output ripple and noise and densities.

In contrast, the SGe line leverages the benefits of using high switching speed Mosfets requiring a much smaller output stage LC filter in order to provide competitive output ripple and noise performance and response time without compromising power densities. Available in two control versions, the SGe has basic analog controls, while the SGI provides intelligent control features

The SGe, with its outstanding FET based power electronics, is available for customers requiring simple front panel analog controls or external control. With high performance power electronics the SGe provides essential features like 10- turn potentiometers for setting voltage and current, 3½ digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset.

Optional -1C Adds LAN + RS-232C Interfaces


  • Output Voltage: 0 to 100 V
  • Output Current: 0 to 50 A
  • Rated Power: 5 kW
  • Ripple & Noise - rms (20 Hz-300 kHz): 25 mV
  • Ripple & Noise - p-p (20 Hz-20 MHz): 100 mV
  • 187 - 242 Vac Input - Three Phase (3 wire + ground), 47-63 Hz
  • Weight: 65 lb; Size: 133 mm (5.25 in)H x 483 mm (19.0 in)W x 671 mm (26.4 in)D

Please see Datasheet for complete details and specifications.
