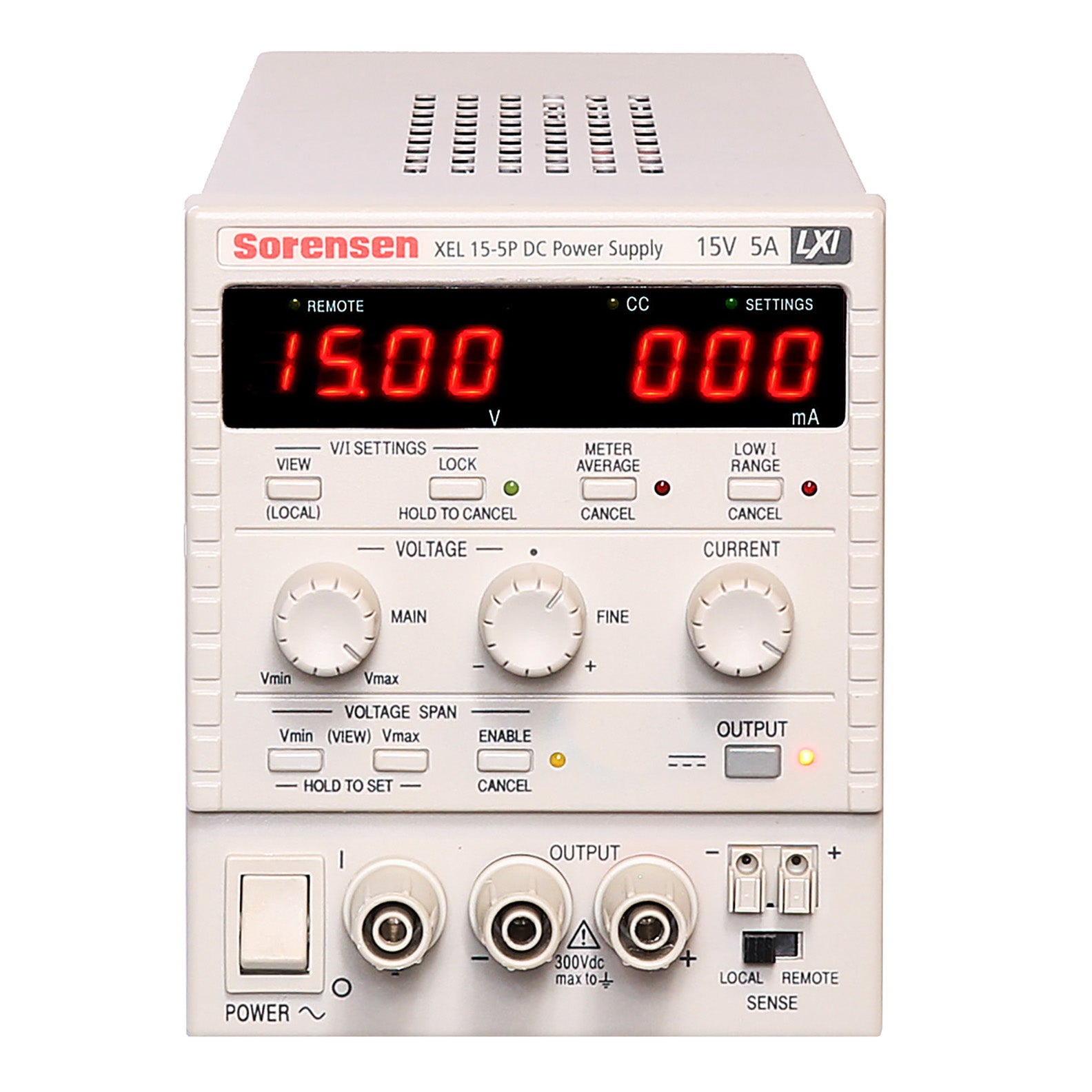

Ametek / Sorensen XEL 15-5P Programmable DC Power Supply, 0 to 15 Vdc, 0 to 5 A, with LAN, USB, RS-232

Ametek MPN: XEL 15-5P

Sale price$1,095.00 USD
In stock - Ships in 1 to 2 Business Days


Ametek / Sorensen XEL 15-5P Programmable DC Power Supply, 0 to 15 Vdc, 0 to 5 A, with LAN, USB, RS-232

The Sorensen XEL 15-5P benchtop power supply is as easy to use as simple analog power supplies but offers the flexibility of advanced digital features. The user interface allows easy control with single-turn knobs, including a fine control knob for voltage.

This easy-to-use interface is complemented by V-Span, S-lock, and Output Enable functions. V-Span allows the user to set a maximum and minimum value over which the knob control operates. This provides more precise control over the voltage as the knob operates over a narrow range as well as protecting devices under test by limiting the maximum voltage. S-Lock provides an easy method to output a regulated fixed voltage. Output Enable lets the user setup the desired voltage and current levels prior to actually turning on the output. All of these features in a laboratory bench supply are only found in the XEL series.

The programming "P" option includes LXI Class C Ethernet, USB, RS-232, and analog remote control.


  • Output: 0 to 15 V, 0 to 5 A
  • Digital features with analog controls
  • Remote control for bench & system application
  • S-Lock: Set and lock the voltage
  • V-Span: user-defined voltage limits
  • Small benchtop footprint
  • Option P Interfaces: LXI Class C Ethernet, USB, RS-232 and remote analog
  • 115V AC or 230V AC ± 10%, 50/60Hz; single phase operation
  • Weight: 10.8 lbs; Size: 214 mm (8.4 in)H x 131 mm (5.2 in)W x 288 mm (11.3 in)D

Please see Datasheet for complete details and specifications.
