Description

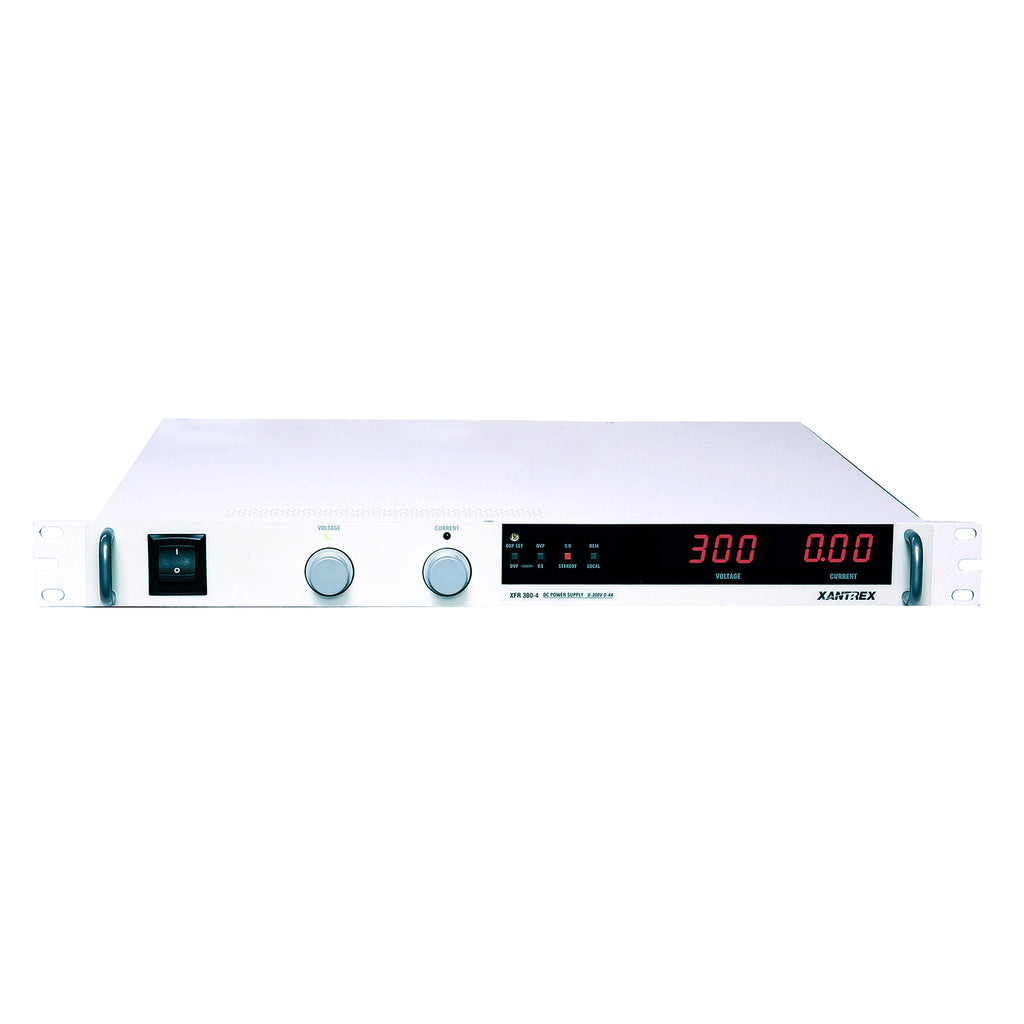

Ametek / Sorensen / Xantrex XFR 300-4 Programmable DC Power Supply, 0 to 300 Vdc, 0 to 4 A
The XFR300-4 power supply provides low-noise, precisely regulated, variable DC output at 1200 Watts of output power. Over voltage protection (OVP) and thermal shutdown are standard. Front panel controls and indicators are extensive.
Features:
- Voltage: 0 to 300 Vdc
- Current: 0 to 4 A
- Output Power: 1200 W
- Output noise (0-20 MHz): 115 mVp-p
- Output ripple (rms): Voltage 22 mV, Current 3 mA
- Load regulation: Voltage (0.02% of Vmax + 5 mV) 10 mV, Current (0.02% of Imax + 4 mA) 8 mA
- 85-130 Vac or 190-264 Vac; 47-63 Hz operation
- Weight: 18 lb; Size: 43.4 mm (1.71 in)H x 483 mm (19.0 in)W x 508 mm (20.0 in)D
Please see Datasheet for complete details and specifications.
