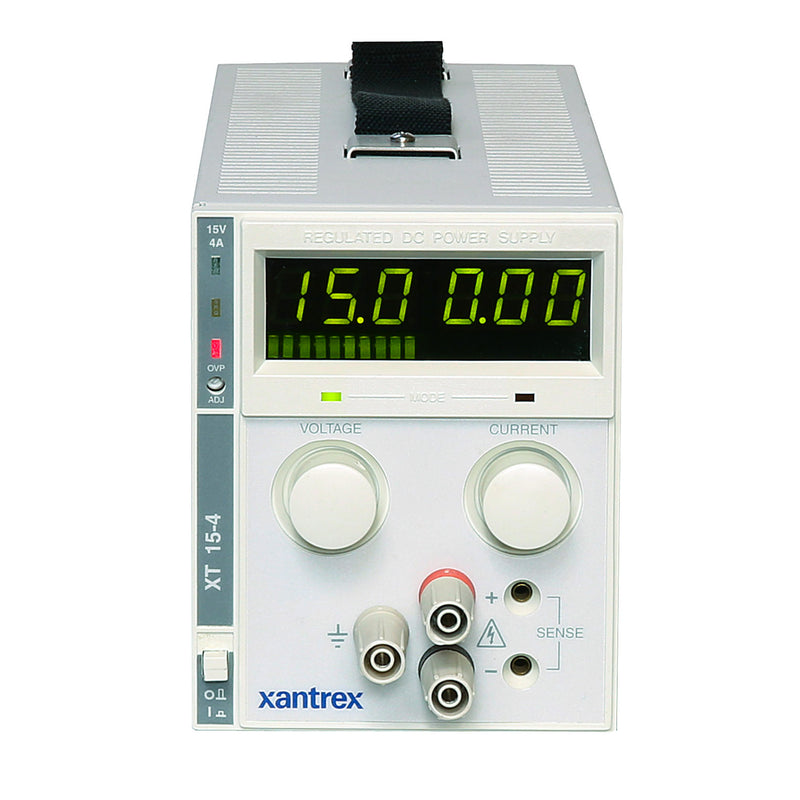

Ametek / Sorensen / Xantrex XT 15-4 Programmable DC Power Supply, 0 to 15 Vdc, 0 to 4 A

Ametek MPN: XT 15-4
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Select Title:
Price:
Sale price$295.00 USD
Stock:
Available - Please contact our office at 1-800-366-5240 for update.

Description

Ametek / Sorensen / Xantrex XT 15-4 Programmable DC Power Supply, 0 to 15 Vdc, 0 to 4 A

The Sorensen XT 15-4 provides 60 watts of programmable linear DC power in a quarter-rack package suited for both benchtop and system applications. XT Series power supplies are ideal for OEM applications where a wide adjustment of output voltage or current is required in a compact package. For systems applications, multiple single units can be rack-mounted in configurations of up to four independent 60-watt outputs.

Optional MGA adds GPIB Interface Card

Optional MAA adds Analog Programming Interface Card

Features:

  • Output: 0 to 15 V, 0 to 4 A
  • Low noise and ripple
  • Excellent line/load regulation
  • Fast transient response
  • Constant voltage or constant current operation with automatic crossover and mode indication
  • Current limit
  • Front and rear outputs
  • Remote sense 0.5 V per line
  • LabVIEW®and LabWindows®drivers
  • 115 Vac ±10%; 57-63 Hz; single phase operation
  • Weight: 7.7 lb; Size: 134.7 mm (5.2 in)H x 109.2 mm (4.2 in)W x 297 mm (11.7 in)D

Please see Datasheet for complete details and specifications.
