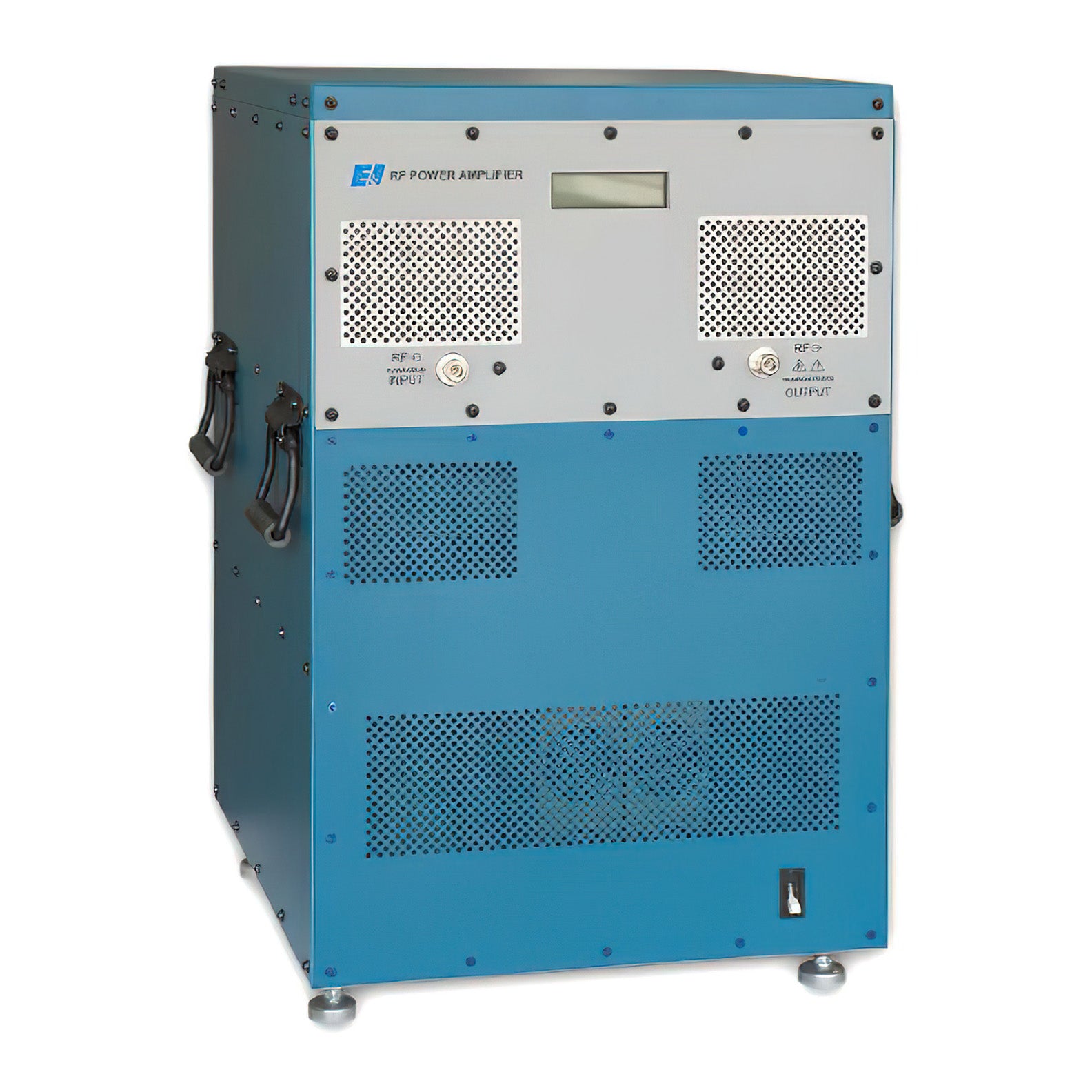

Electronics & Innovation A500 RF Amplifier, 300 kHz to 35 MHz, 500 W

BRAND NEW 3-YEAR WARRANTY

Price:
Sale price$57,475.00 USD
Stock:
In stock - Ships in 8 Weeks

Description

Electronics & Innovation A500 RF Amplifier, 300 kHz to 35 MHz, 500 W

The E&I A-500 Amplifier is a rugged source of RF power useful for ultrasonics, HF transmitters, RFI/EMI, plasma equipment and general laboratory applications.

The E&I A500 delivers 500 Watts of RF power, with 55 dB of power gain over a frequency form 300 kHz to 35 MHz. The A-500 has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed and adjustments.

Features:

  • Class of Operation: Class A
  • Frequency Range: 300 kHz to 35 MHz
  • Rated Power Output: 500 W
  • Power Gain: 60 dB
  • Gain Flatness: ±1.5 dB
  • Input Power for Rated Output: 0.5 mW
  • Input Impedance: 50 Ohms
  • Output Impedance: 50 Ohms
  • Harmonic Level: <-23 dBc
  • Size (H x W x D): 25" x 17" x 20" (635 mm x 432 mm x 508 mm)
  • Weight: 190 lbs (86 kg)
  • 200 - 400 Vac ±10%; 3-Phase; 50 - 60 Hz

Please see Datasheet for complete details and specifications.

This is a Special Order item. Please see our Customer Services page for more details.
