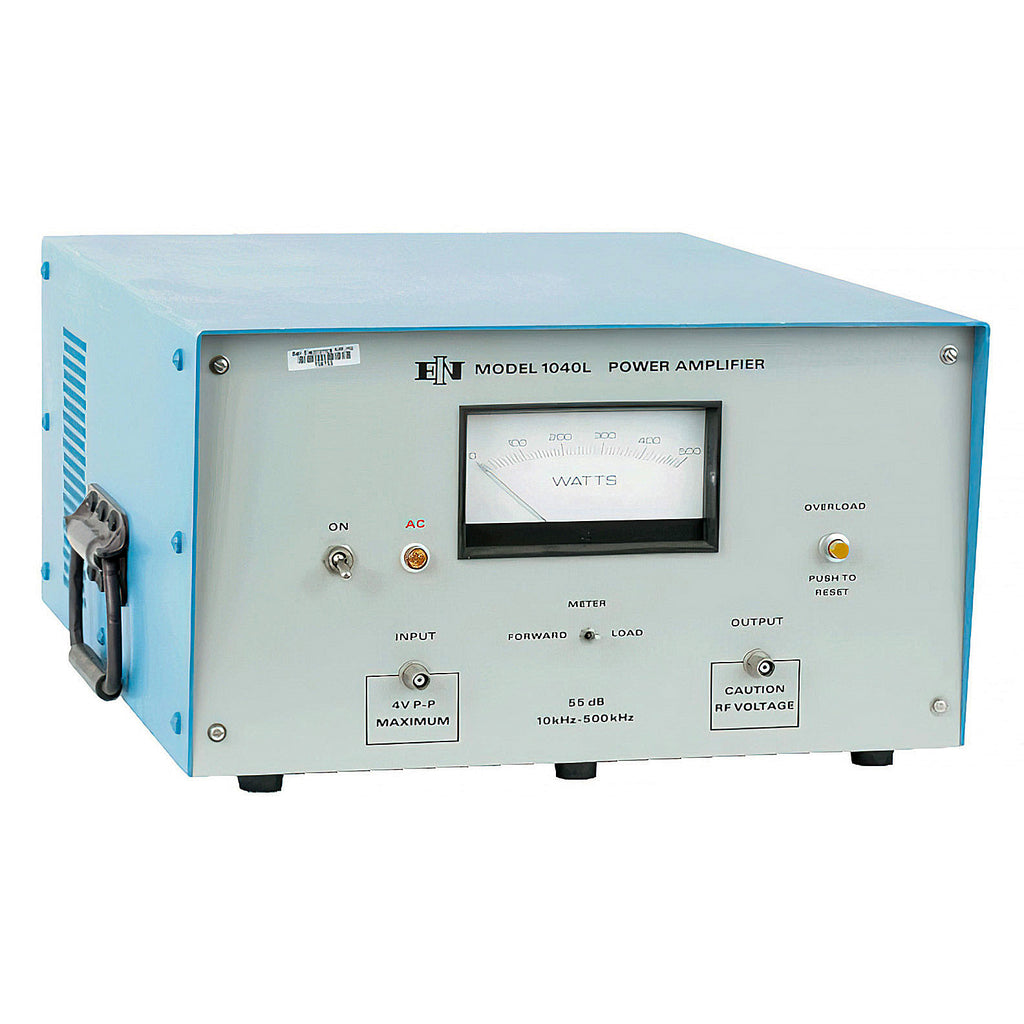

ENI 1040L RF Power Amplifier, 10 kHz to 500 kHz, 400 W, 55 dB
The 1040L is a class B power amplifier. The 1040L is designed for ultrasonic, RFI/EMI, plasma, and laser modulation applications as well as general laboratory purposes. The 1040L may be connected to any load impedance between 40 and 60 ohms at any phase and still provide extremely linear output voltage and current.
- Frequency Range: 10 to 500 kHz
- 400 W output power
- 55 dB gain (nominal)
- Front panel metering
- 50 Ohm impedance
- BNC(f) connectors, input/output
- 115/230 Vac; 50/60 Hz operation
- Weight: 56 lb; Size: 222 mm (8.8 in)H x 381 mm (15.0 in)W x 498 mm (19.6 in)D
Please see Datasheet for complete details and specifications.
