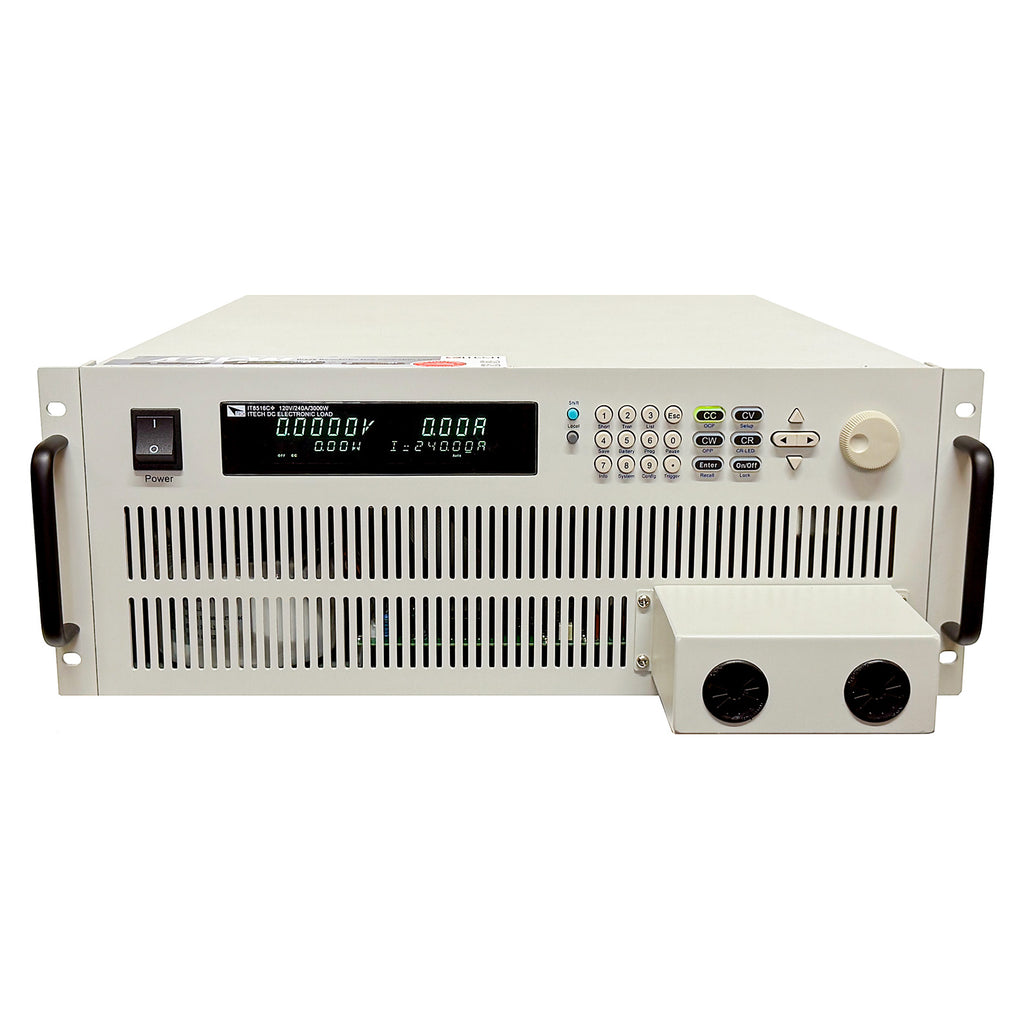

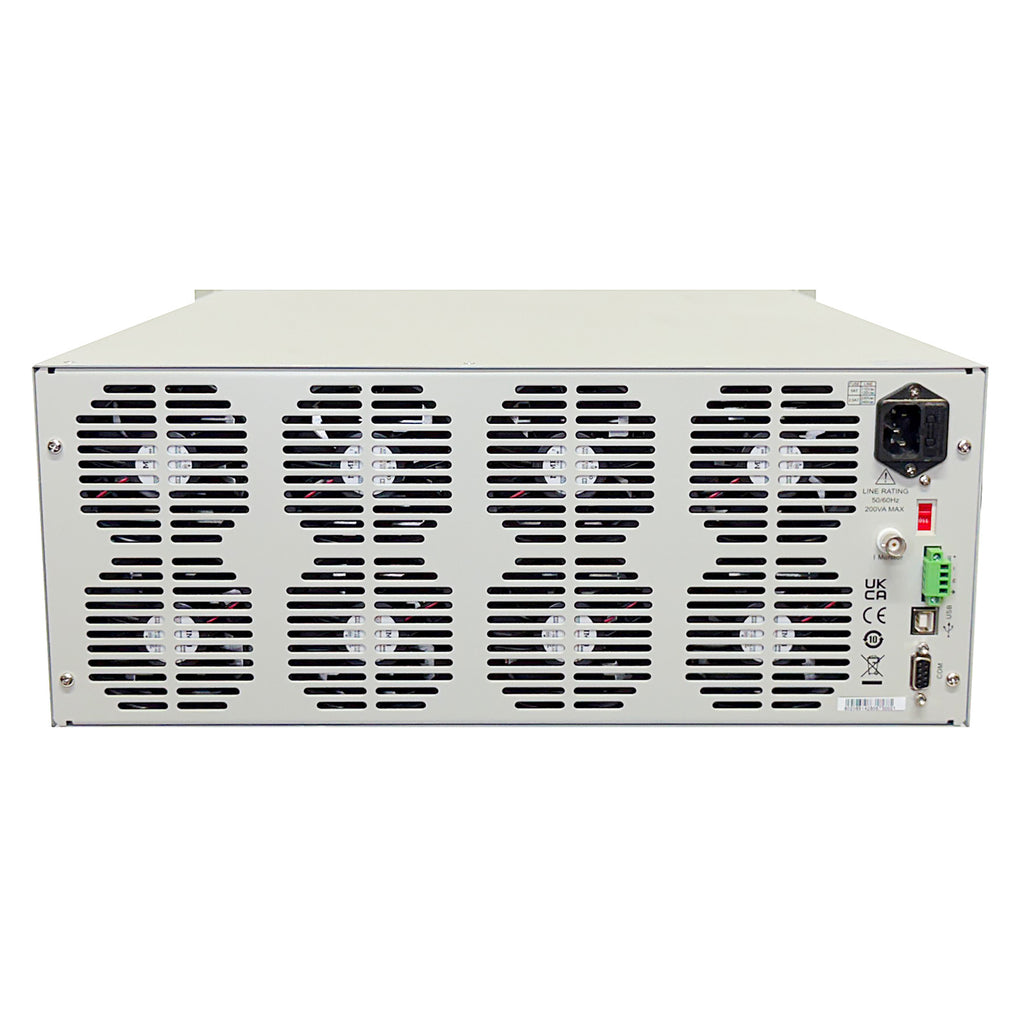

Itech IT8516C+ DC Electronic Load, 0 to 120 V, 0 to 240 A, 3 kW

Itech IT8516C+ DC Electronic Load, 0 to 120 V, 0 to 240 A, 3 kW

The Itech IT8516C+ single-channel programmable DC electronic load is designed for middle & high-end applications. The user can perform online voltage measurements and adjustments, or simulate short-circuit tests using the simple keypad on the front panel. The IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies, batteries, DC-DC converters, and battery chargers, providing the user with the best testing solution.

Features:

• Four operating modes: CV, CC, CR, CP
• Battery test function, automatic test function, OPP test, OCP test function, and CR-LED function
• Dynamic mode up to 10 kHz
• Voltage measurement resolution: 0.1 mV / 0.1 mA
• Voltage and current measurement speed: up to 40 kHz
• Remote sensing
• Short-circuit function
• Current monitoring function
• Power-off memory function

• Memory capacity to save/recall setting parameters: 100 registers
• High-visibility vacuum fluorescent display
• Interfaces: USB/RS232
• Line Input Power: 110 or 220 Vac ±10%, Single Phase; 50/60 Hz
• Weight: 34.5 kG; Size (WxHxD): 436.5 mm x 176 mm x 463.5 mm

Please see the Datasheet for complete details and specifications.
