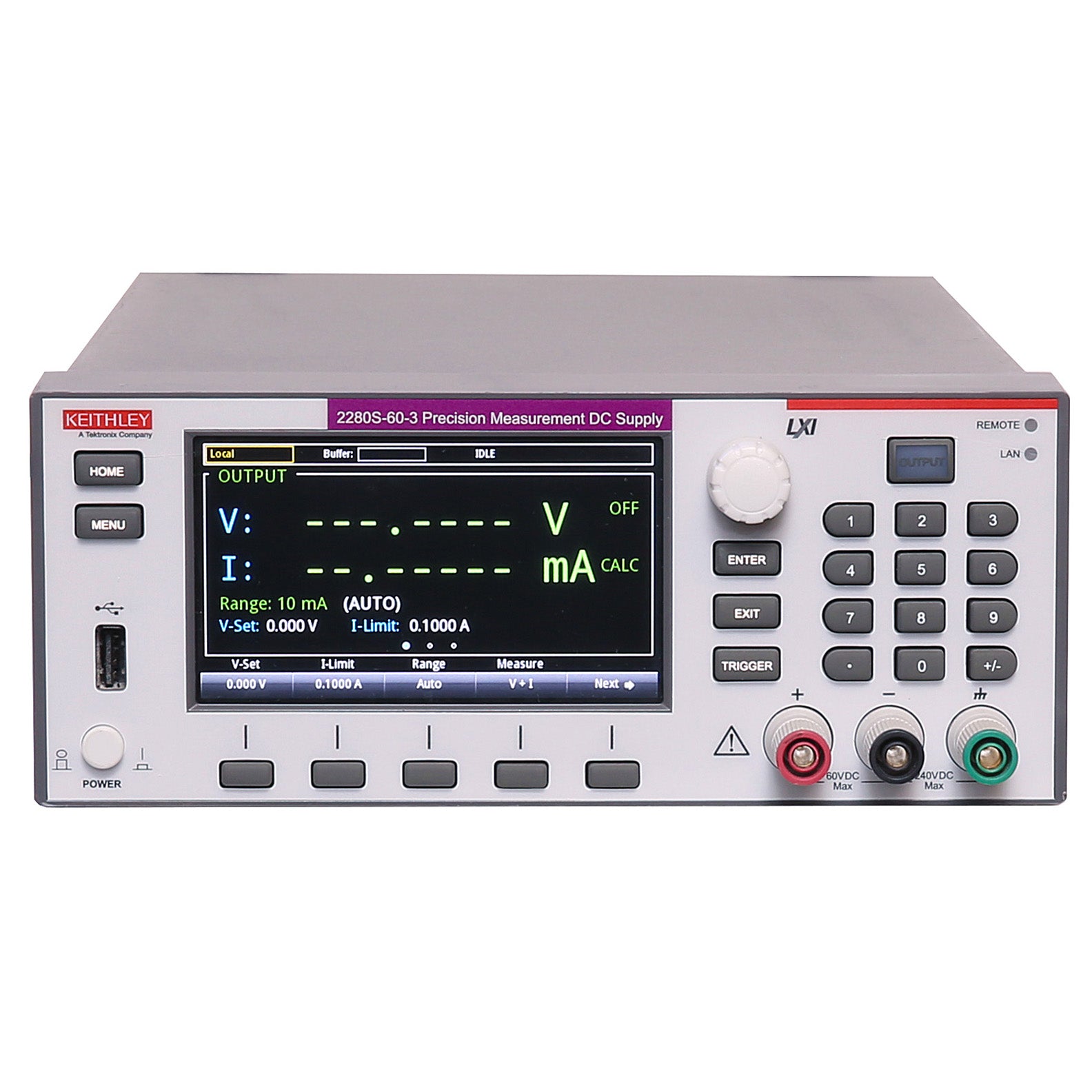

Keithley 2280S-60-3 Precision Measurement DC Power Supply, 0 to 60 V, 0 to 3.2 A

Keithley MPN: 2280S-60-3

Sale price$1,895.00 USD
In stock - Ships in 1 to 2 Business Days


Keithley 22080S-60-3 Programmable DC Power Supply, 0 to 60 V, 0 to 3.2 A, 192 W, GPIB/USB/LAN

The Series 2280S Precision Measurement, Low Noise, Programmable DC Power Supply is much more than just a source of clean power; it is also precision measurement instrument. It can source stable, low noise voltages as well as monitor load currents over a wide dynamic range from amps to nanoamps.

The supply use linear regulation to ensure low output noise and superior load current measurement sensitivity. A high resolution color Thin Film Transistor (TFT) screen displays a wide range of information on measurements. Soft-key buttons and a navigation wheel combine with the TFT display to provide an easy-to-navigate user interface that speeds instrument setup and operation. In addition, built-in plotting functions allow monitoring trends such as drift. These supplies provide the flexibility required for both benchtop and automated test system applications. For example, they provide a list mode, triggers, and other speed optimization functions to minimize test time in automated testing applications.


  • 0 to 60 Vdc, 0 to 3.2 A
  • 192 W
  • Monitor load currents from 100 nA to 6 A with high accuracy
  • Measure voltage and current with 6½-digit resolution
  • Capture dynamic load currents as short as 140 μs
  • Output up to 192 W of low noise, linear regulated power
  • Programmable rise and fall times eliminate voltage overshoot and undershoot transients
  • Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms
  • High resolution TFT display and soft-key/icon-based user interface simplify power supply operation
  • Programmable output sequences reduce test times
  • Sink up to 0.45 A to discharge voltage quickly
  • Digital I/O for direct communication with other devices and instruments
  • GPIB, USB, and LAN interfaces
  • Built-in web page simplifies automated control/monitoring
  • Automate tests easily with KickStart start-up software
  • 100 / 120 / 220 / 240 Vac ±10%, 50/60 Hz

Please see Datasheet for complete details and specifications.
