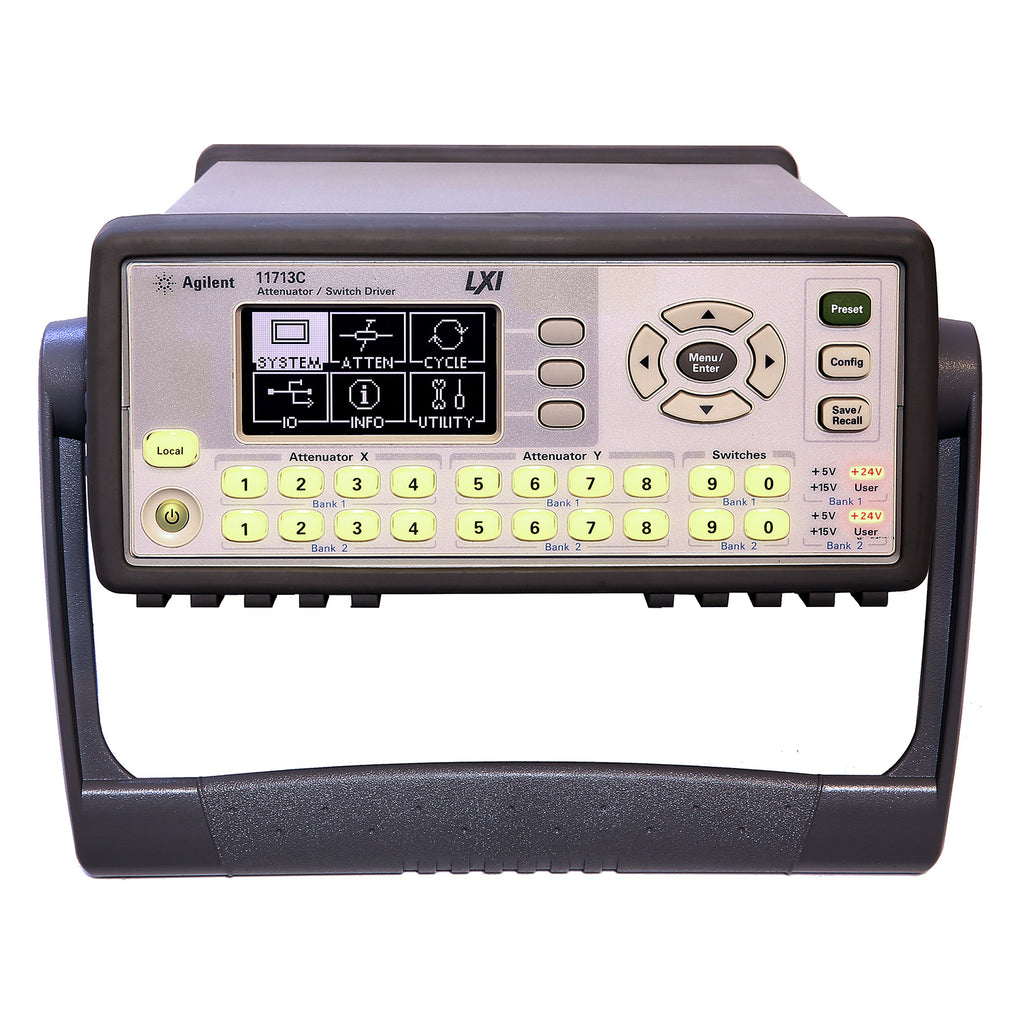

Keysight / Agilent 11713C Attenuator / Switch Driver

Keysight / Agilent MPN: 11713C

Sale price$3,495.00 USD
In stock - Ships in 1 to 2 Business Days


Keysight / Agilent 11713C Attenuator / Switch Driver

The Keysight LXI-compliant 11713C attenuator/switch driver provides remote or front-panel drive control for four programmable attenuators and four SPDT switches. It can also independently control up to 20 switches. Designed for both benchtop and ATE environments, this flexible, stand-alone driver provides an intuitive user interface, a variety of switching options, software programmability, and remote control features for quick, easy design validation and automated testing.

An integrated power supply eliminates the need for an external power source. Each Keysight 11713C is offered with nine optional plug-in drive cables to provide point-to-point connection to Keysight programmable attenuators and switches. The driver response time is less than 10 microseconds.

Fast easy front-panel and remote control of ATE systems:

Front panel push-buttons and an easy-to-read LCD display simplify the setup of functions such as voltage, TTL functions, IP address, etc. Powerful software programming and a choice of GPIB, USB, and LAN connectivity and software instrument drivers provide instrument and programming compatibility.


Attenuator and switching capability:

  • control a combination of four programmable attenuators and four SPDT switches or up to 20 SPDT switches
  • 100-ms response time
  • 2,000,000 switching cycles

Remote control and programming:

  • LXI compliant to control and trigger the 11713C remotely via a full-featured graphical web interface
  • GPIB with USB and LAN options for easy remote integration
  • standard SCPI programming language
  • full backward compatibility with the Keysight 11713A

Drive power supply:

  • 5 V, 15 V, and 24 V tri-voltage supply
  • user-defined voltage supply
  • 1.7 A maximum continuous current

Other features:

  • user-friendly interface for quick setup, switching, and remote control of automated test equipment (ATE)
  • built-in counter for easy switch life monitoring
  • point-to-point connection to Keysight programmable attenuators and switches with nine optional cable types
  • 100 to 240 Vac, automatic selection, 50/60 Hz
  • Weight 7.1 lb; Size: 232.2 mm (9.1 in) W x 103.8 mm (4.1 in) H x 378.7 mm (114.9 in) D

Please see Datasheet for complete details and specifications.
