Description
Keysight / Agilent 11852B Adapter, 50 Ohm, dc to 3 GHz

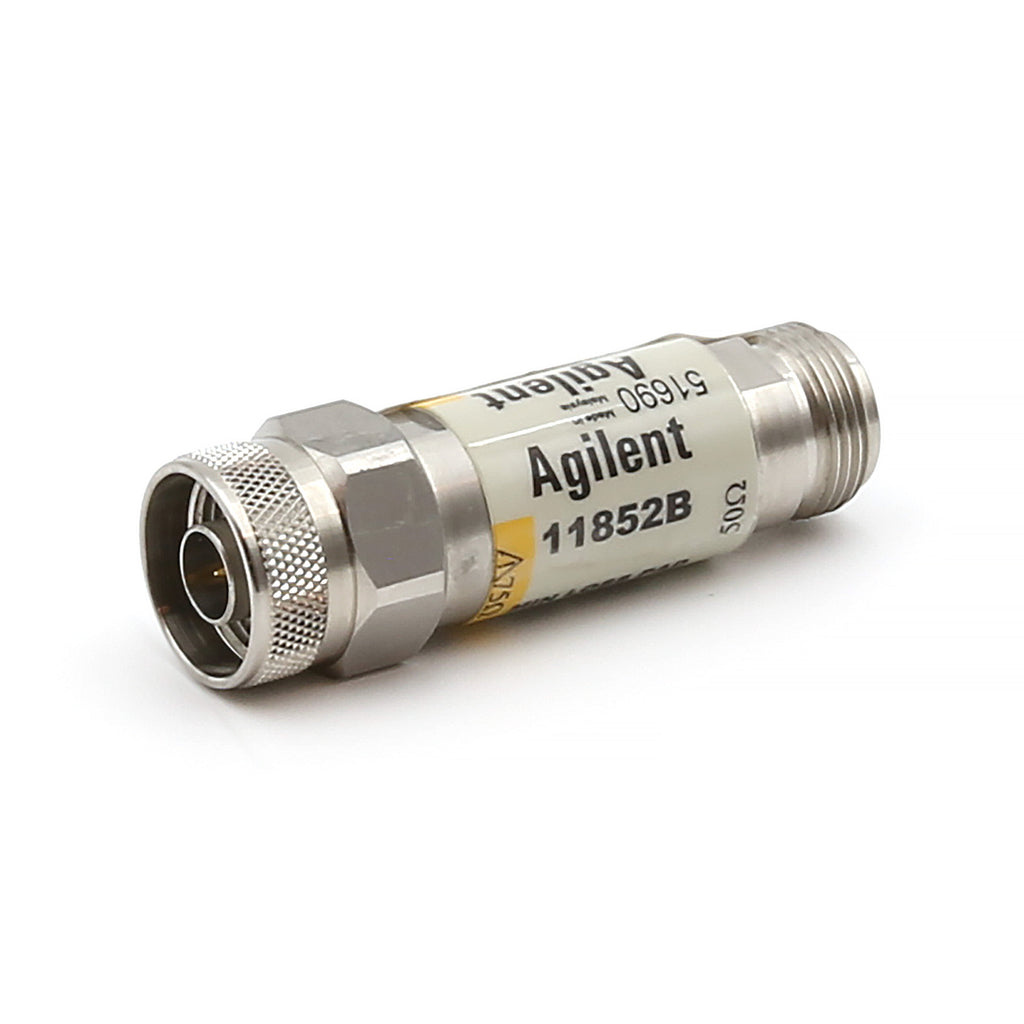

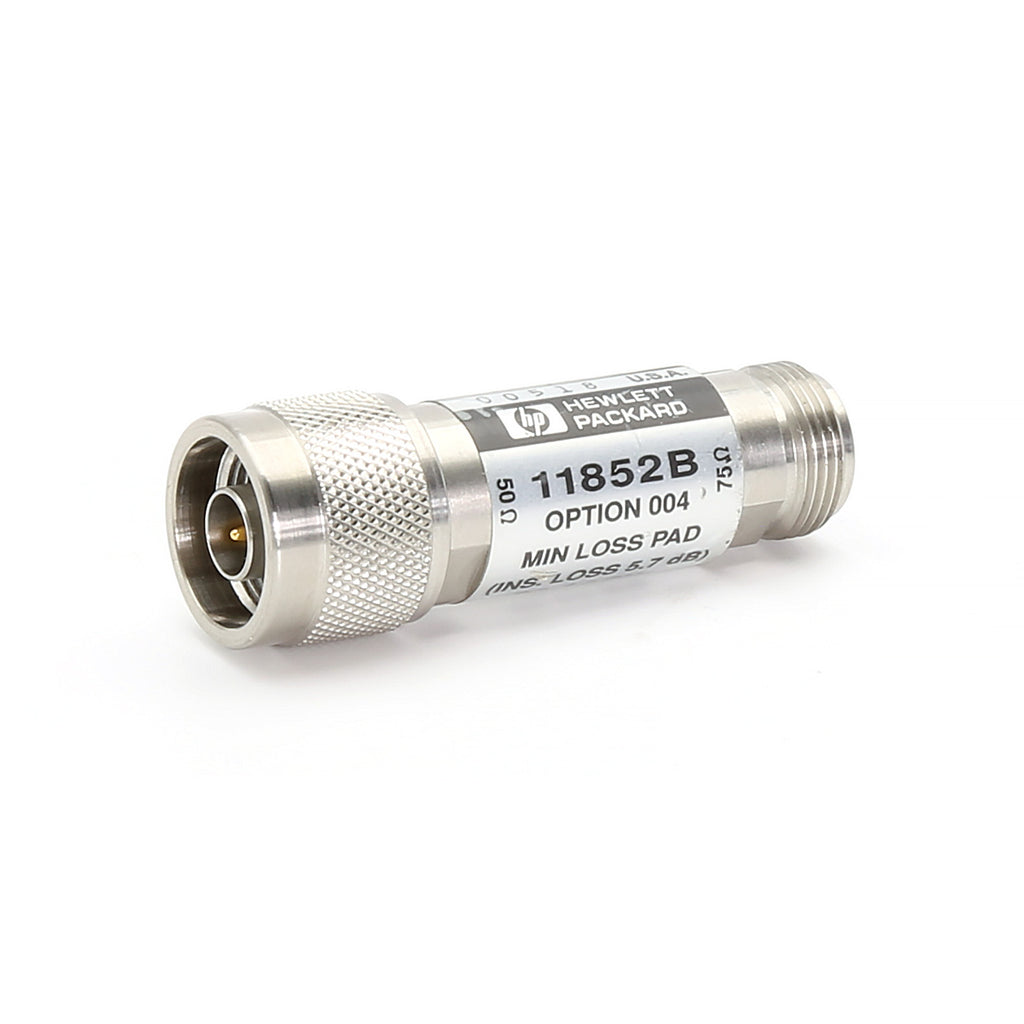

The 11852B is a 50 ohm type-N female to 75 ohm type-N male adapter. The 11852B is also available in a 50-ohm type-N male to 75-ohm type-N female configuration (option 004).
Features:
- Frequency Range: dc to 3 GHz
- Insertion Loss: 5.7 dB, typical
- Return Loss: > 27 dB
- Electrical Length: 50.2 mm (1.98 in)
- Overall Length: 60.1 mm (2.37 in)
- Diameter: 22.0 mm (0.87 in)
- Reference Plane to Reference Plane Length (nominal): 50.2 mm (1.98 in)
- Shipping weight: 2 lbs
Please see Datasheet for complete details and specifications.
Datasheets
