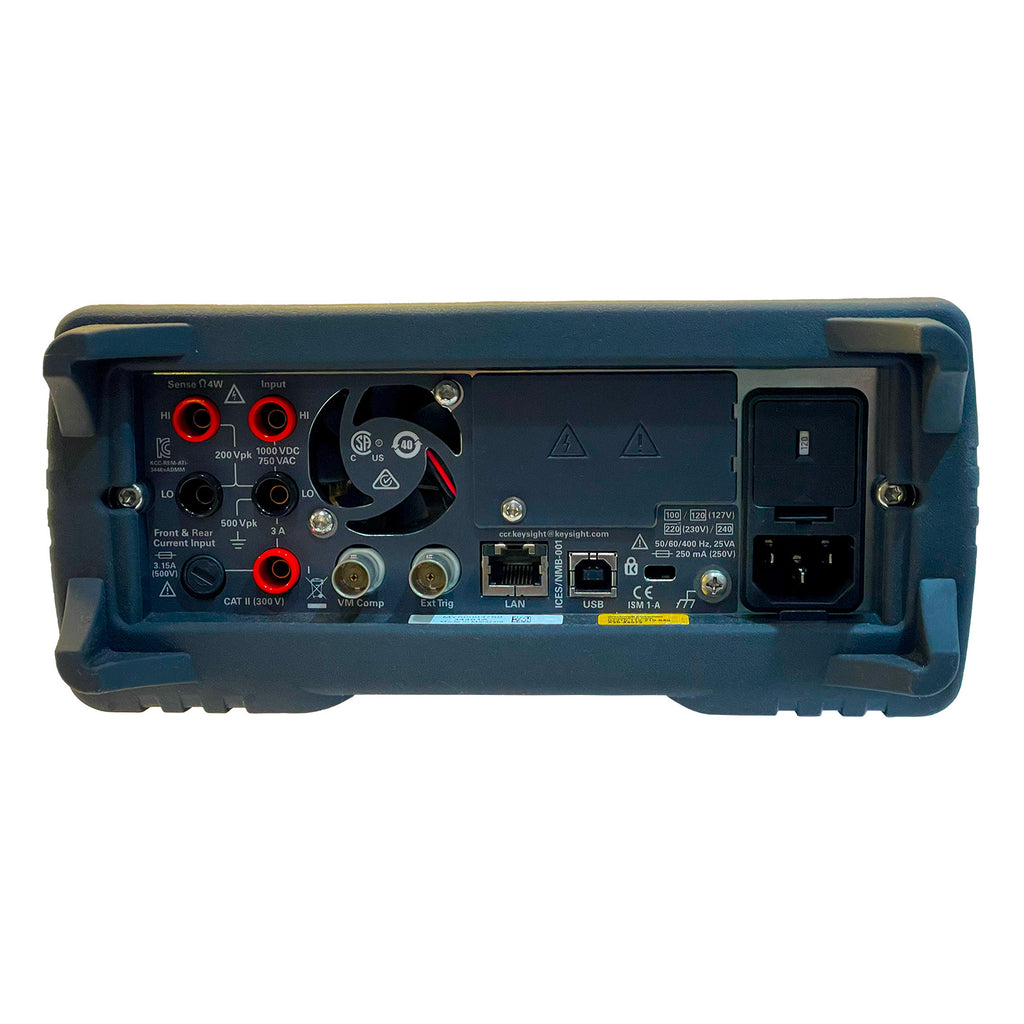

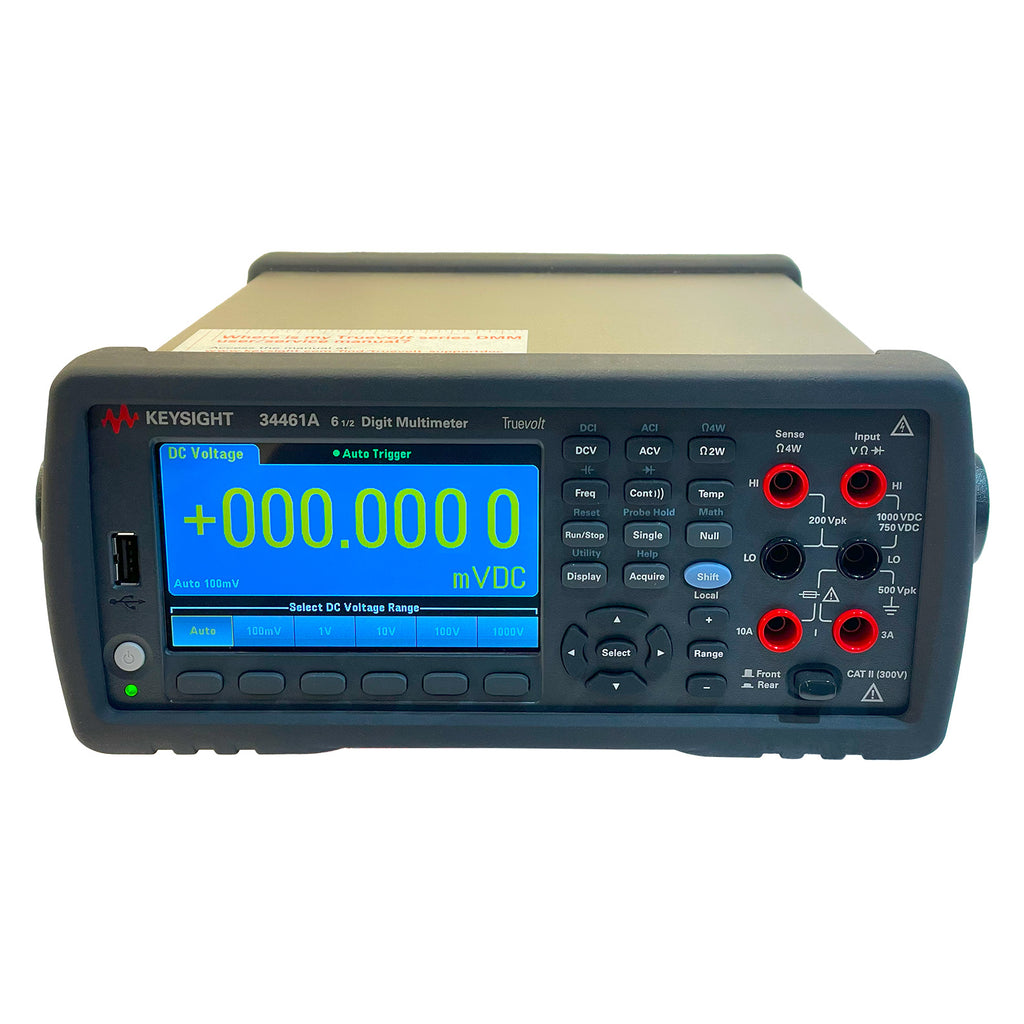

Keysight / Agilent 34461A Digital Multimeter, 6½ Digit, Truevolt DMM

Keysight / Agilent 34461A Digital Multimeter, 6½ Digit, Truevolt DMM

The 34461A 6.5-digit multimeter is the next-generation replacement for the 34401A digital multimeter. The 34461A quickly turns lots of data into results with the Truevolt Series DMMs' new graphical display, advanced analysis modes, and built-in math functions. It offers Truevolt technology, providing measurement and display capabilities unlike anything you've experienced before. The 34461A's exclusive Truevolt technology, based on analog-to-digital converter technology, eliminates extraneous factors such as noise, injected current, and input bias current, providing the highest measurement accuracy. This new technology enables you to focus more on the quality of your designs, rather than worrying about the accuracy of your measurements.

• Histogram, bar, and trend charts on a 4.3-inch color graphical display facilitate monitoring and accelerate statistical analysis.
• Measure with confidence, with 35 ppm basic DCV accuracy.
• Test low power devices with low DC current measurement range from 100 µA to 10 A
• Flexibly automate measurements over USB or LAN/LXI core interface.
• Migrate with confidence from legacy model 34401A.

Features:

• Resolution: 6½ Digits
• Basic Accuracy: 35 ppm
• DCV: 100 mV to 1,000 V
• ACV (RMS): 100 mV to 750 V
• DCI: 100 μA to 10 A
• ACI: 100 μA to 10 A
• 2- and 4-wire resistance: 100 Ω to 100 MΩ
• Continuity
• Diode: 5 V
• Frequency, period: 3 Hz to 300 kHz
• Temperature: thermistor RTD/PT100
• Capacitance; 1 nF to 100 µF
• Reading Rate (max.): 1,000/s
• Reading Memory: 10,000 readings
• Display: Graphical, Color LCD
• LAN (LXI compliant), USB standard

Please see the Datasheet for complete details and specifications.
